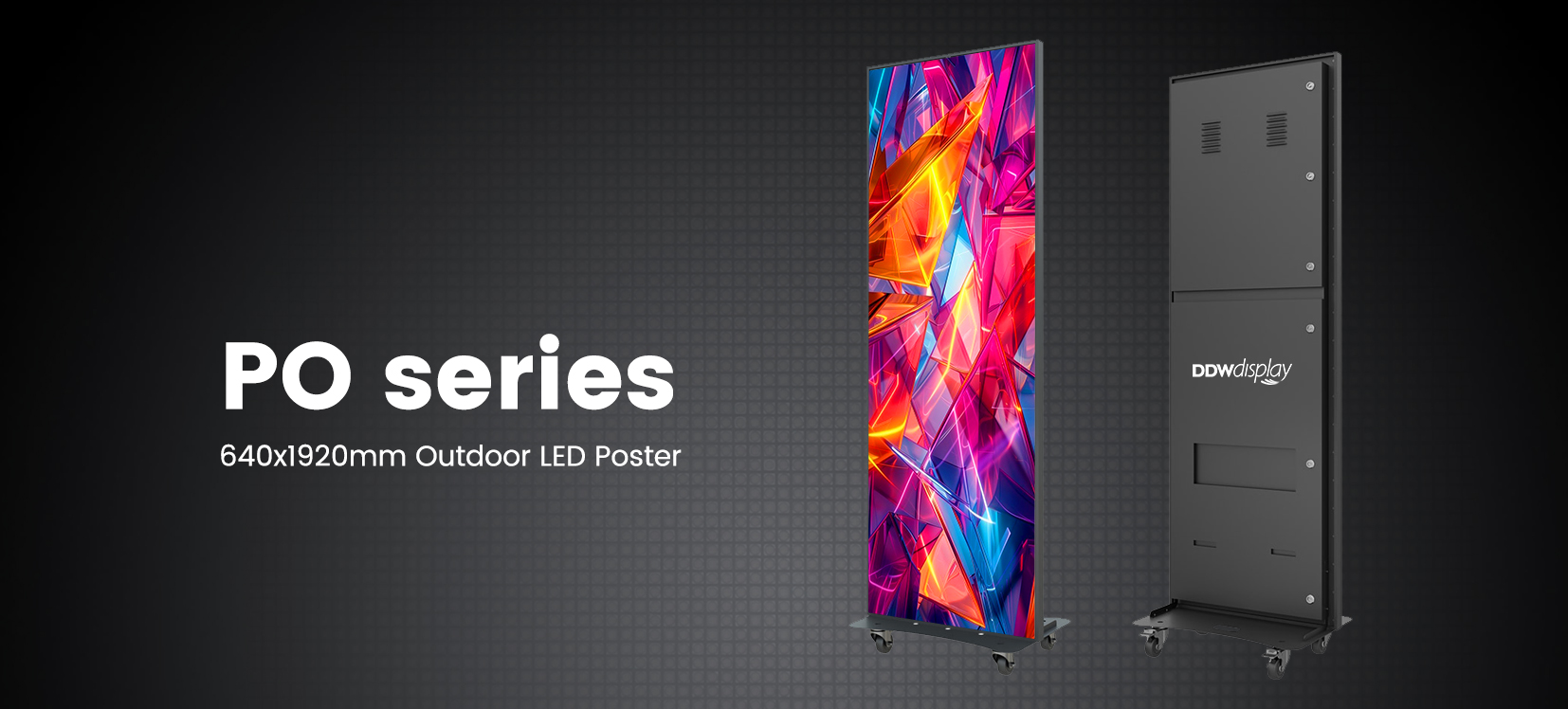

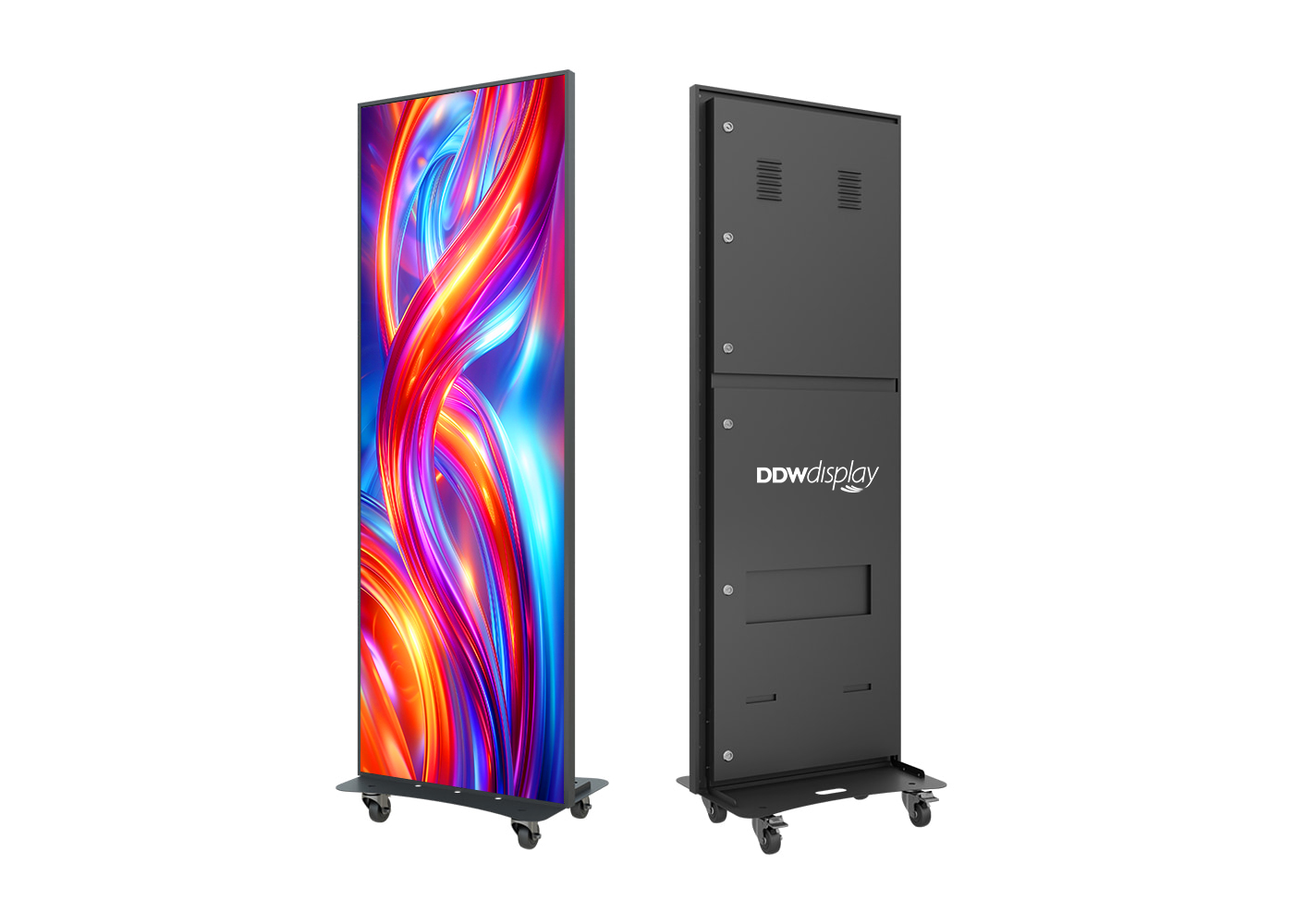

PO Series Outdoor LED Poster

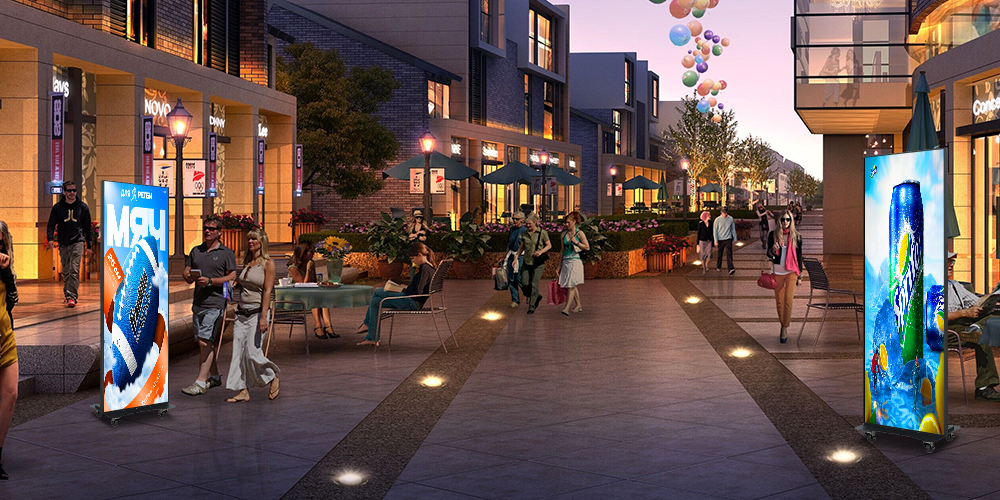

PO series outdoor led poster is our quality led poster display that supports floor mounting, wall mounting and ceiling mounting. It also supports multiple control modes, including USB, WIFI, 4G/5G, APP and HDMI input signal. It’s a flexible, portable and excellent outdoor advertising display tool that can bring you outdoor advertising exposure. The key features are super thin, interchangeable module, easy control. It is widely used in full weather outdoor conditions such as airports, high speed railway stations, outdoor parking center, hospitals, shopping malls, etc.

Features

3840 Hz

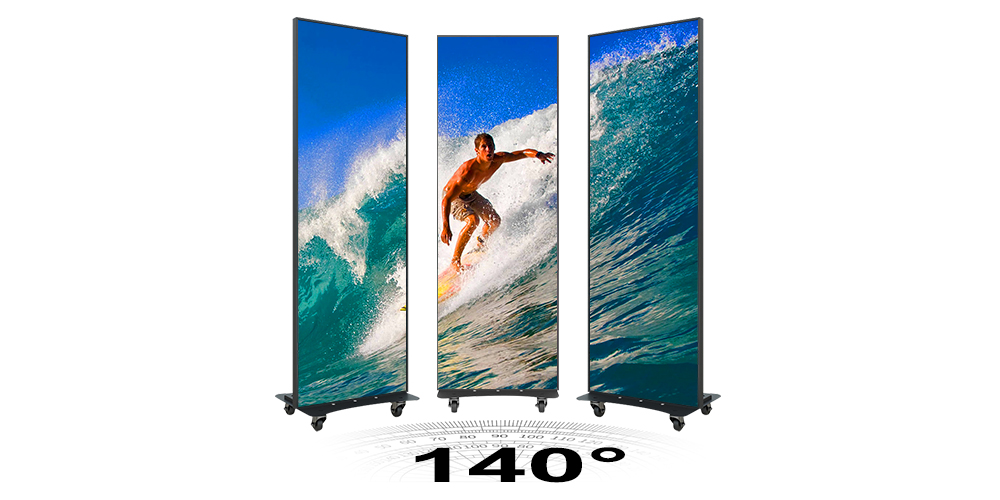

Wide Viewing Angles

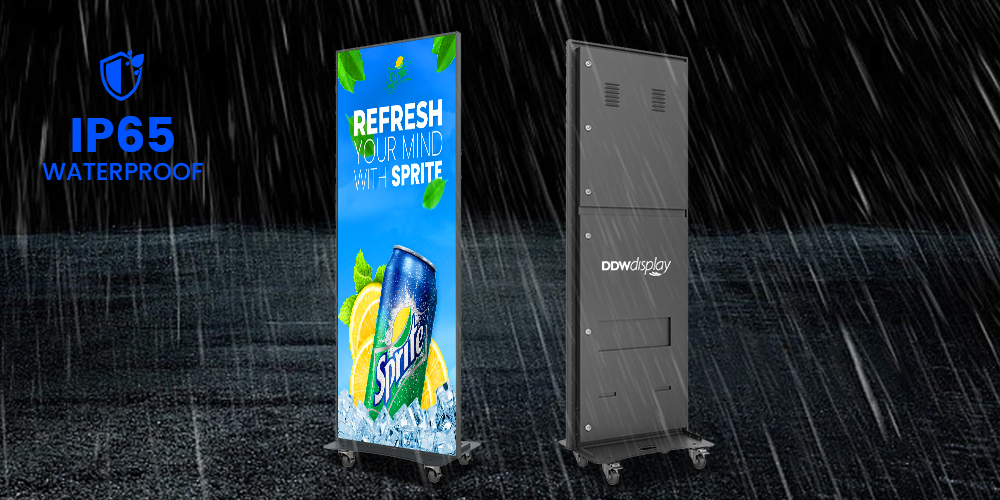

IP65 Waterproof

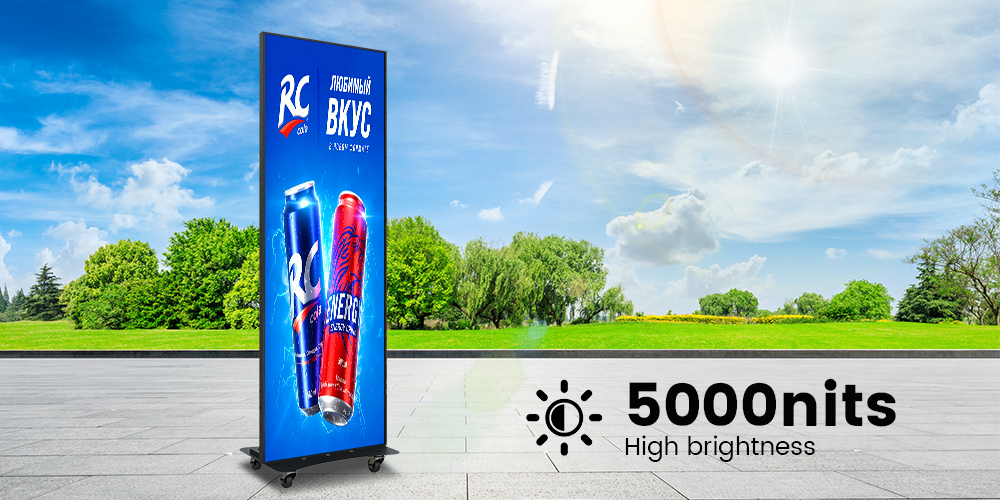

5800cd/㎡

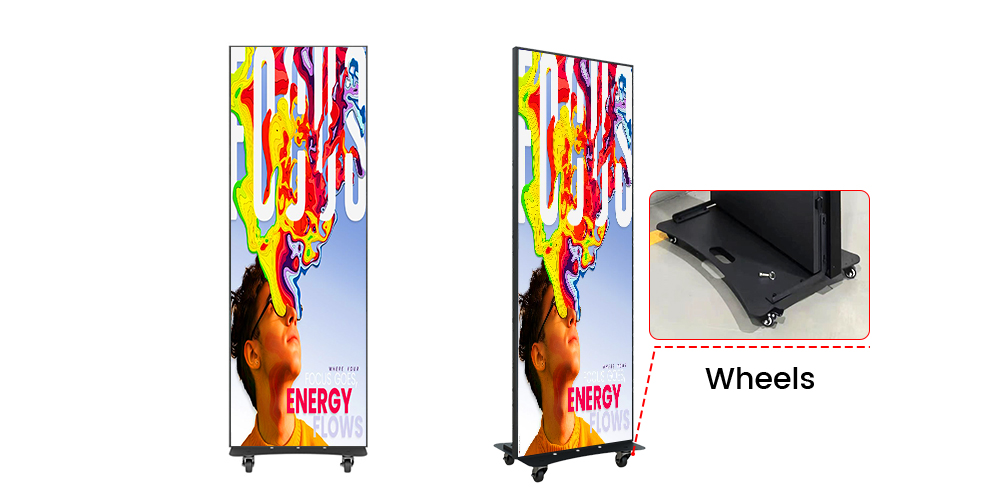

Easy to move

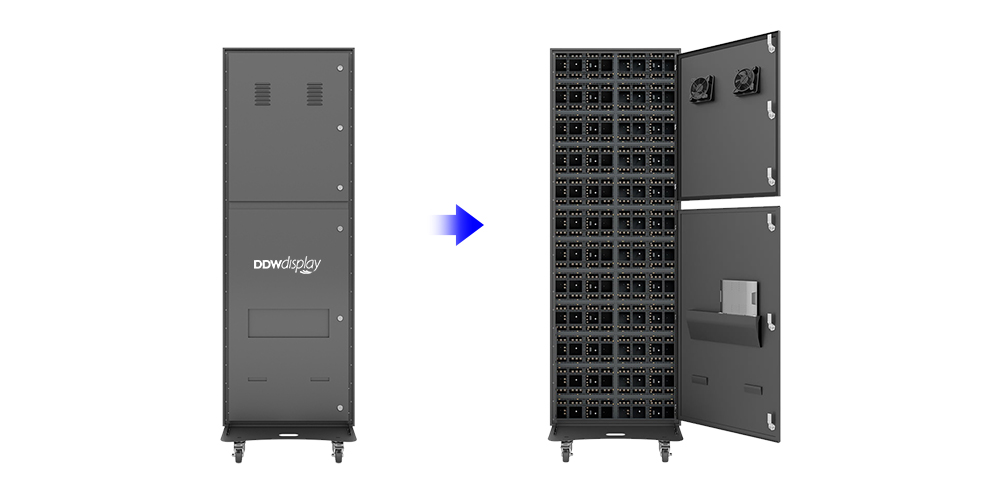

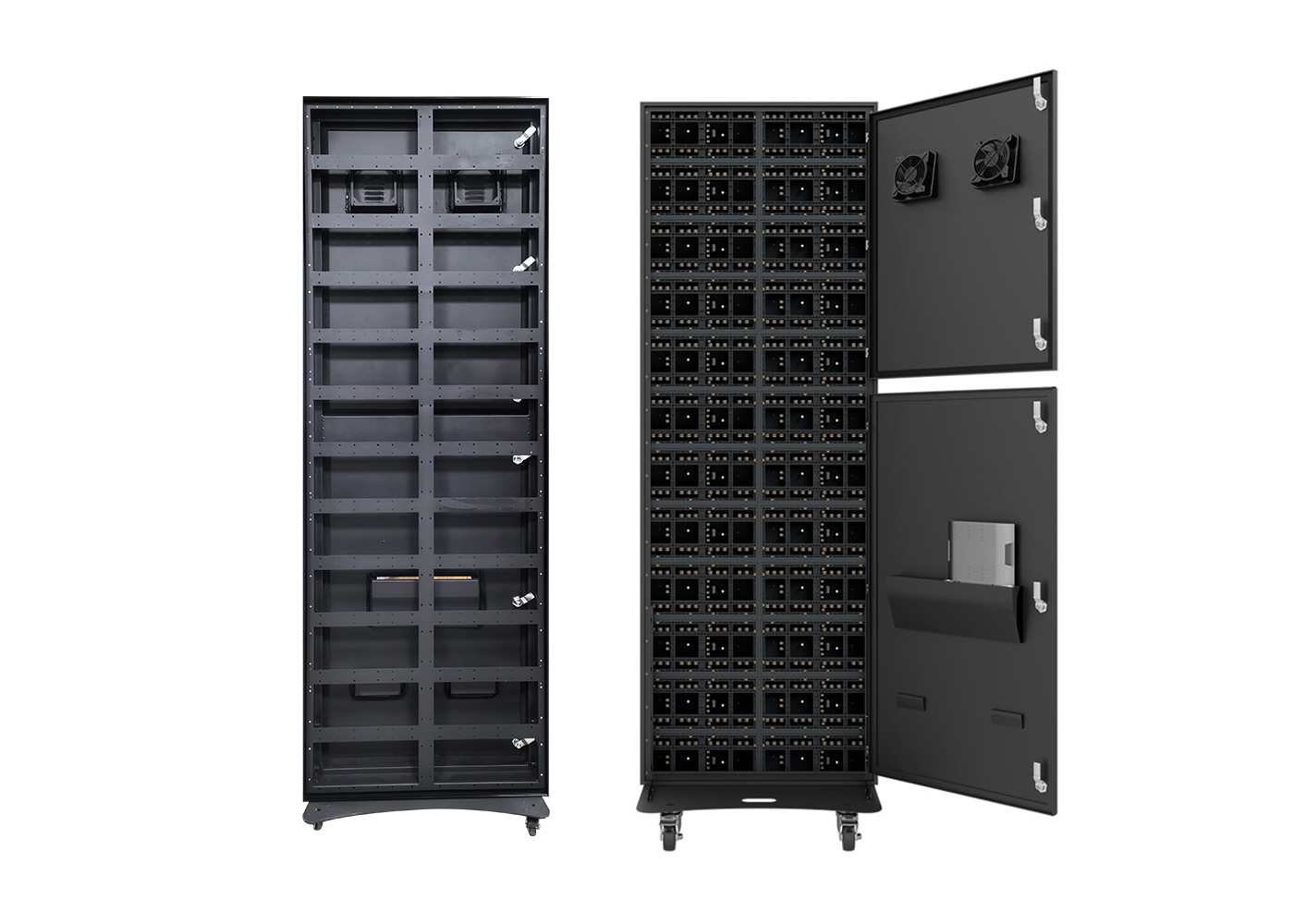

Rear Maintenance

Die Cast Aluminum

High Strength Structure

Advantages

PO Series Outdoor LED Poster
Feature Description

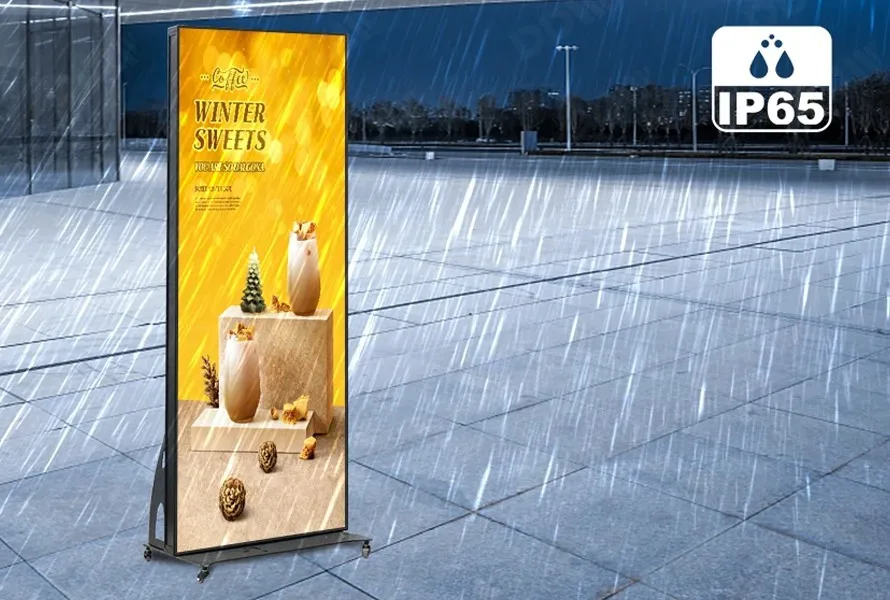

  • - Waterproof lP65, suitable for both outdoor and indoor use
  • - Can perfectly display Logo,Texts,Pictures,Animation,Videos
  • - 4layer PCB board, immersion gold circuit board,20scan
  • - Brighter, more beautiful, energy saving, environmental protection, long service life, easy to replace
  • - Application: Shopping mall, Street road side, Stores, Bank, Hotel, Cafes, Night Club, Bars,etc.

Video

PO Series Outdoor LED Poster

Parameters

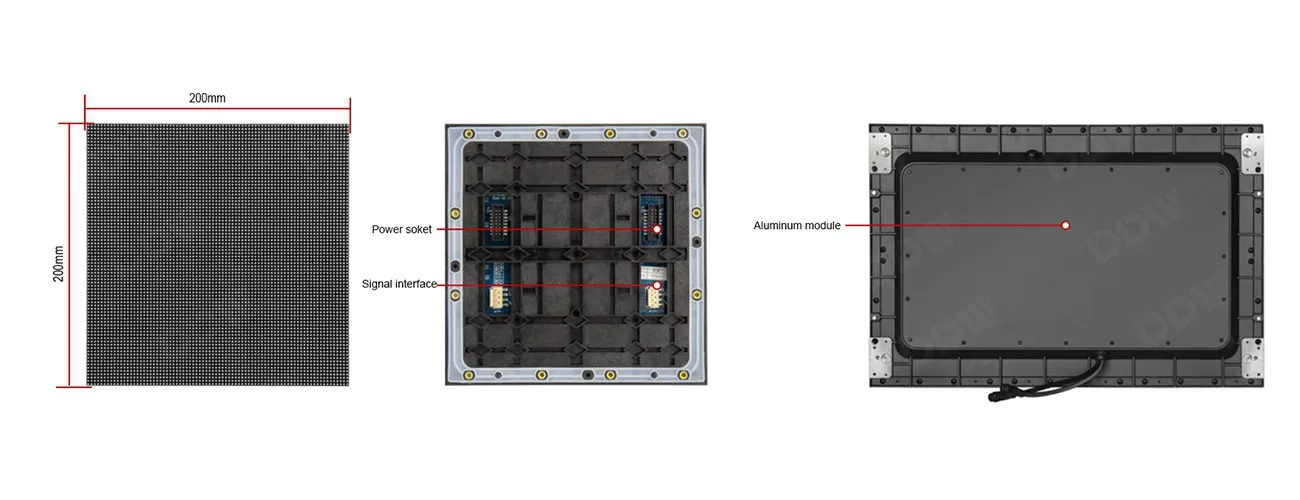

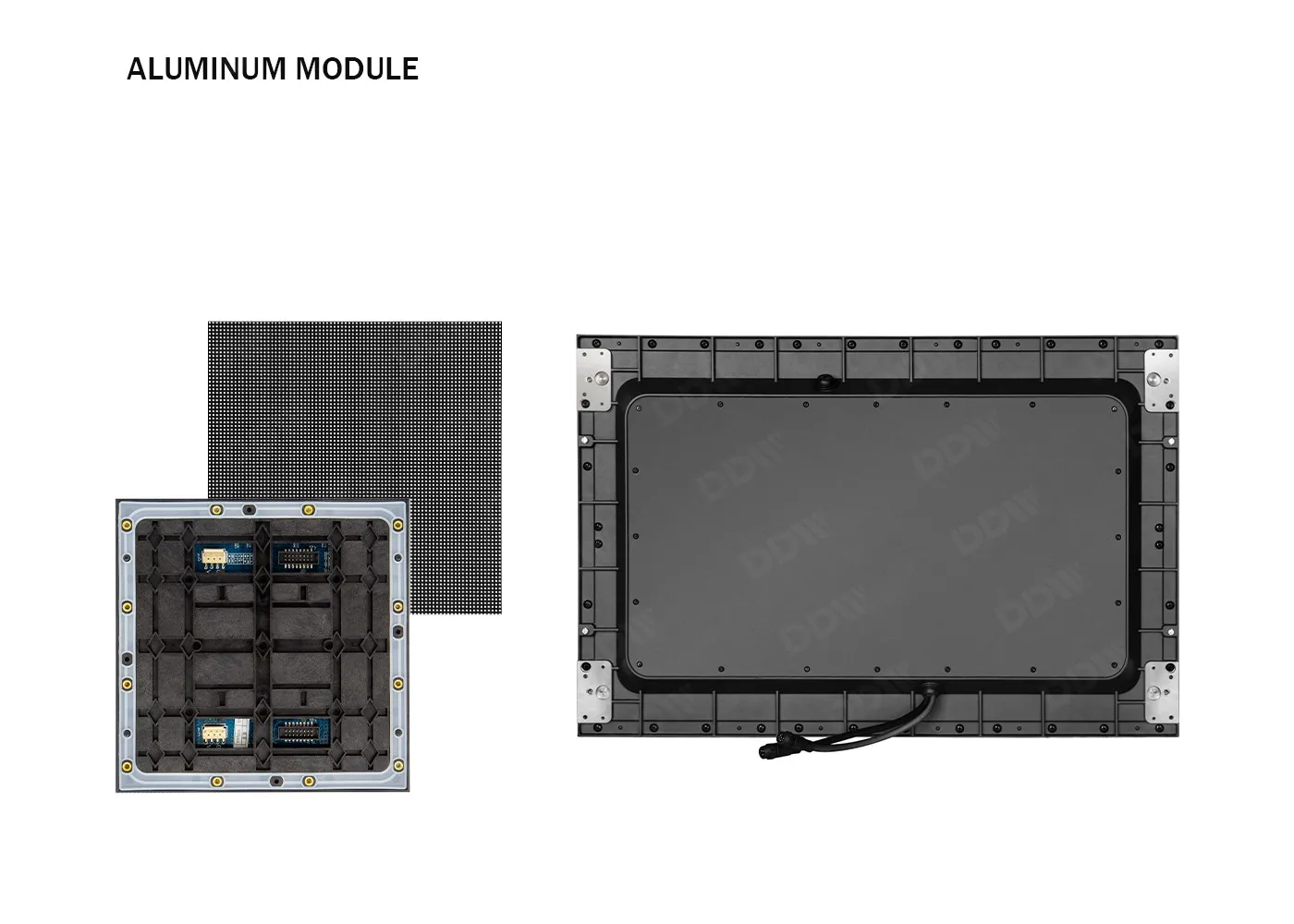

Aluminum Module

Aluminum Bottom module , 4 layer PCB board

PO Series Outdoor LED Poster

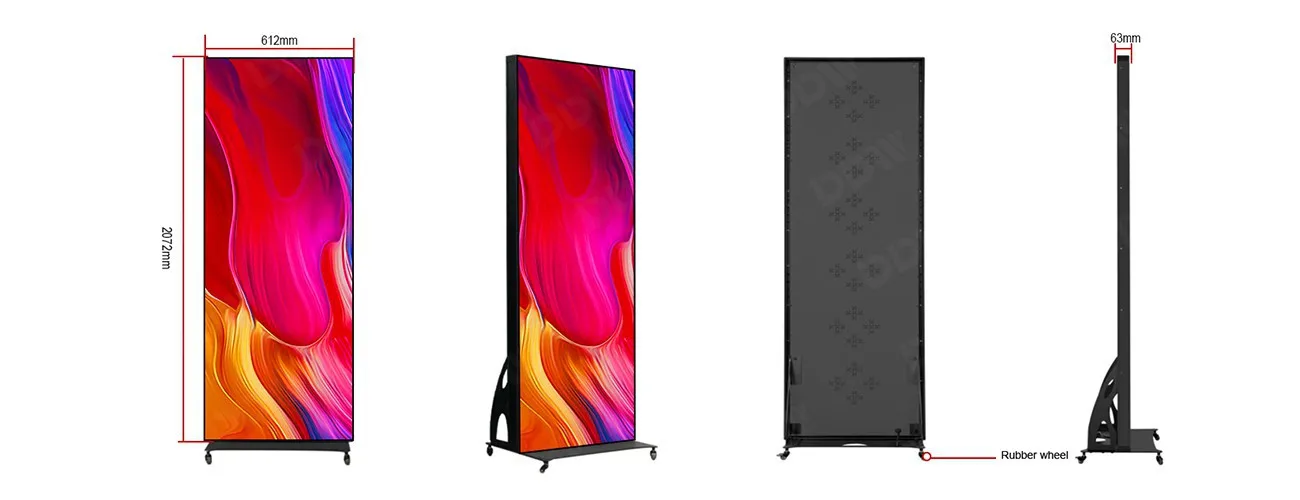

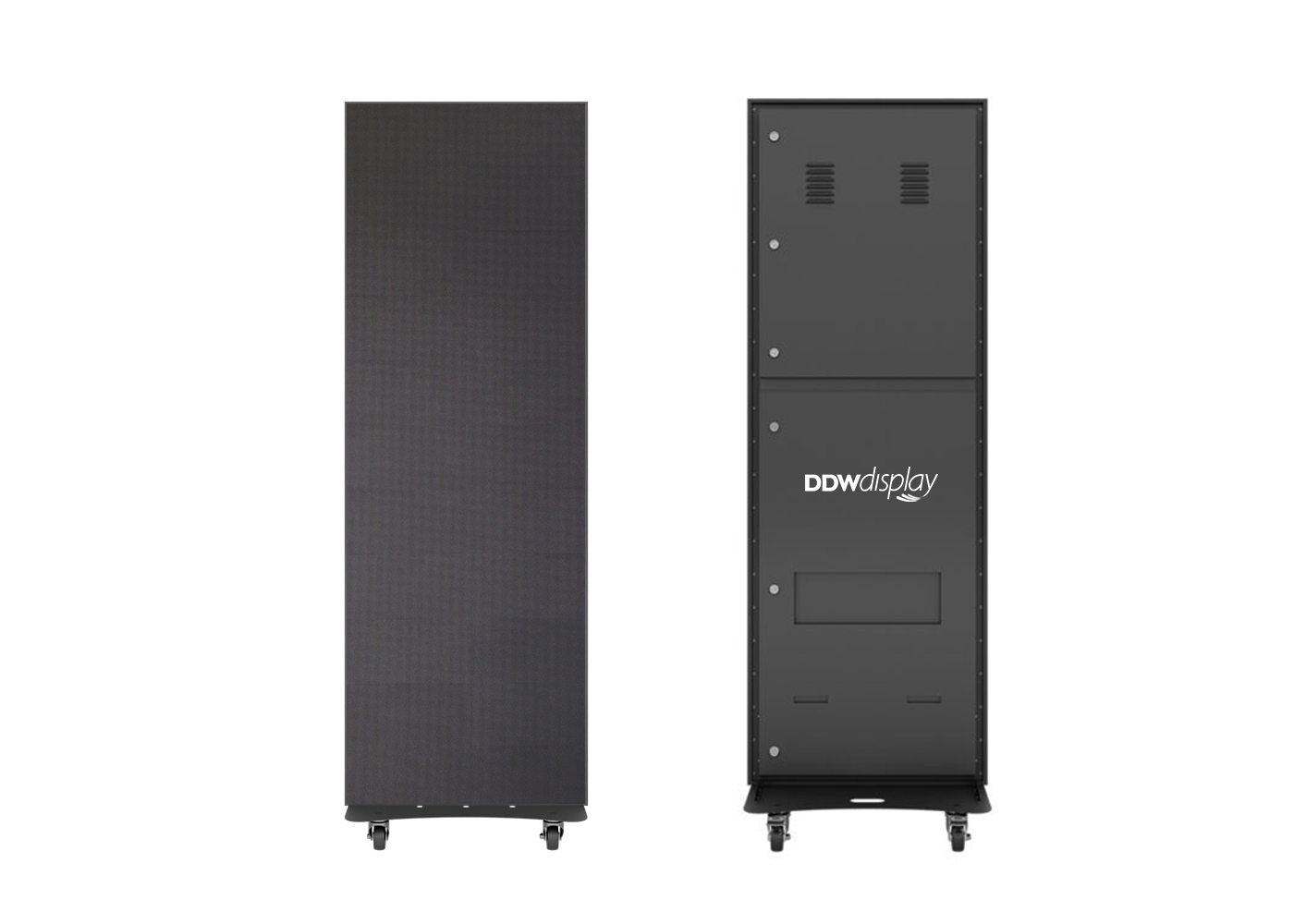

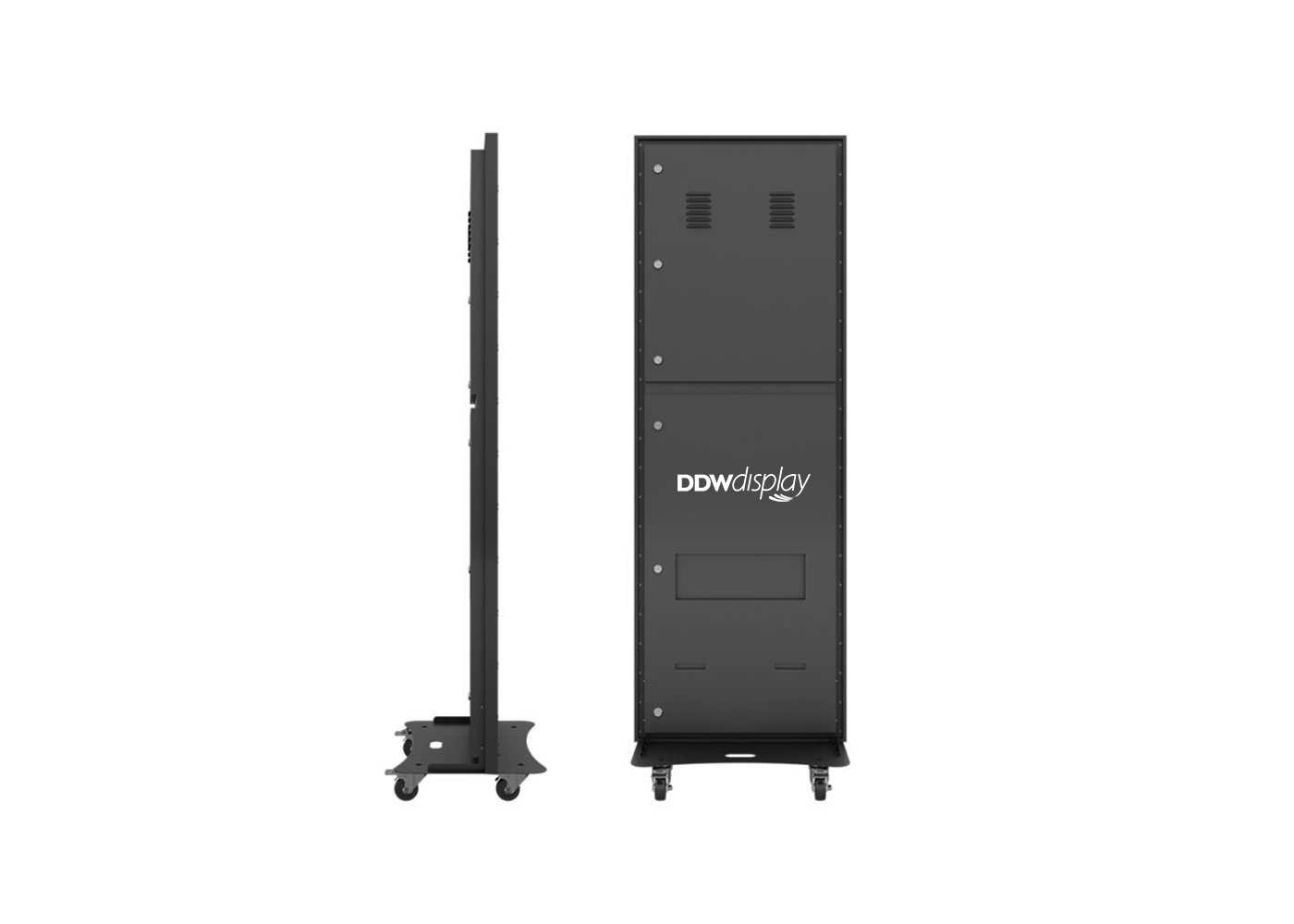

Cabinet Specs

Standard size:2072mmx612mmx63mm/1672mm x612mmx63mm

PO Series Outdoor LED Poster


Specifications

Display size 2072mmx612mmx63mm/1672mmx612mmx63mm
Pixel composition 1R1G1BLED (SMD2121)
Pixel pitch 2.5mm
Module size 200mm*200mm
Module resolution 80×80
LED package form Kinglight / Nationstar
Maximum white balance brightness ≧5800 cd/㎡
Refresh rate ≥3840Hz

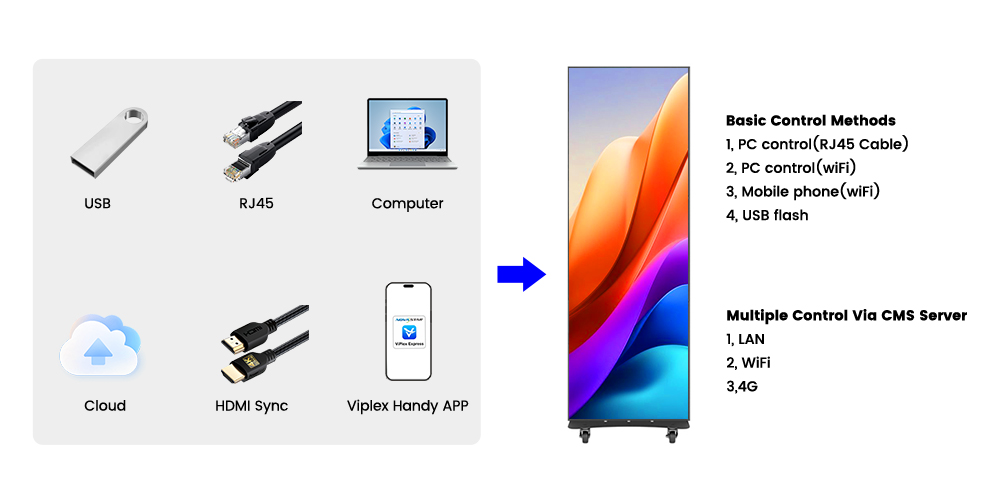

Control method Asynchronous/synchronous(wifi/4G cloud sevice/computer etc)
Waterproof grades and materials IP65
Maintenance method

Back maintenance

Screen weight ≦44kg/51kg

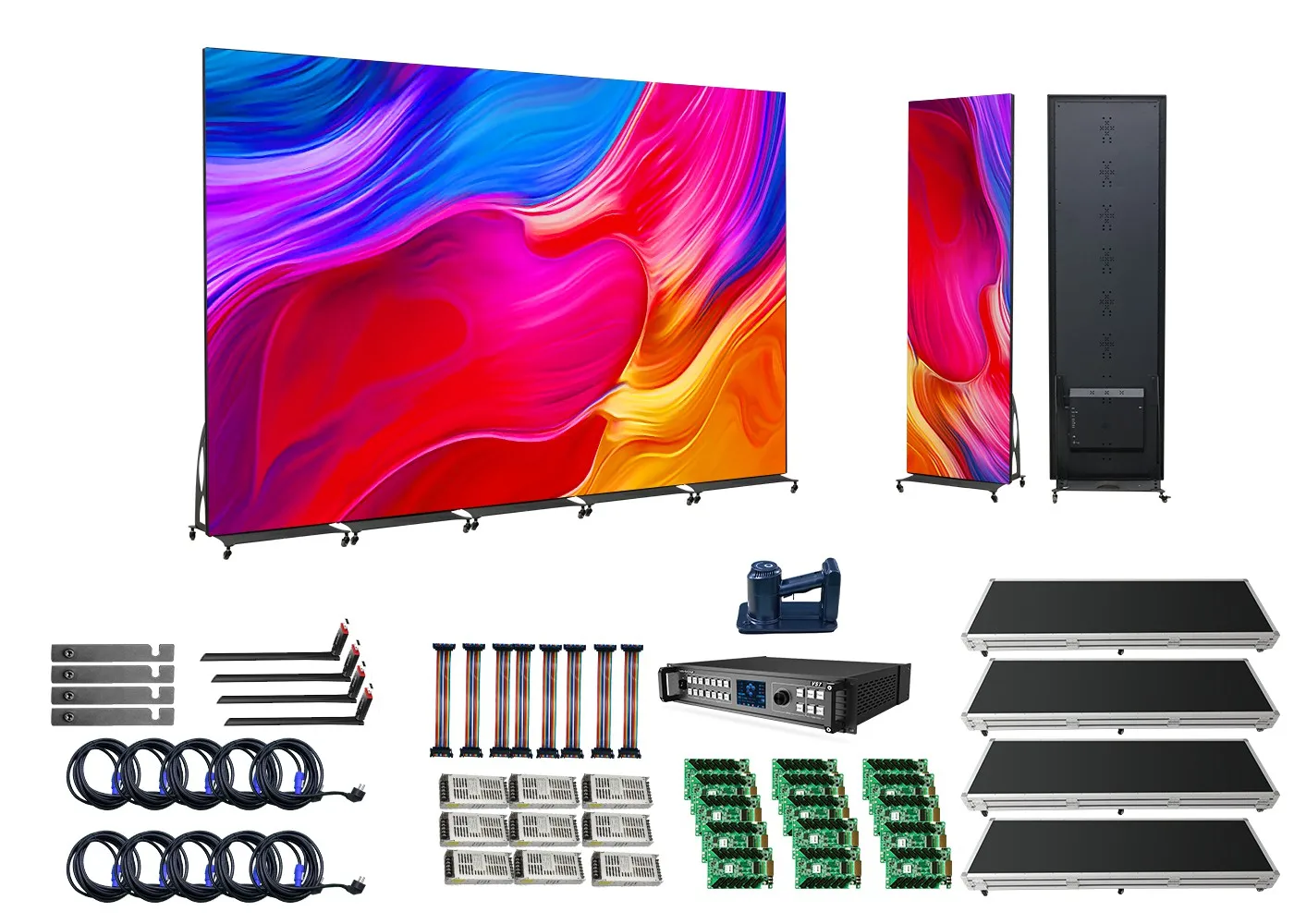

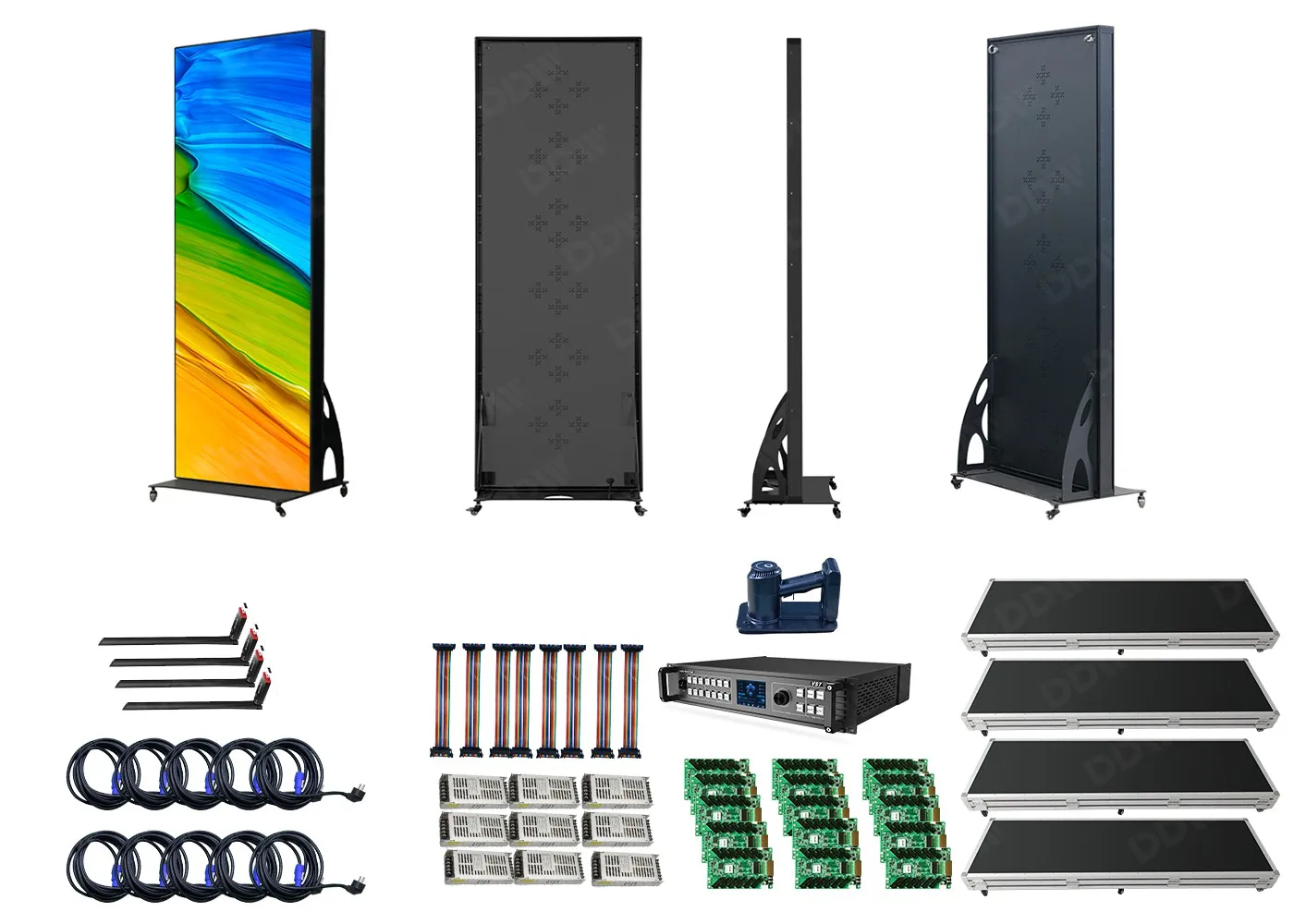

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet

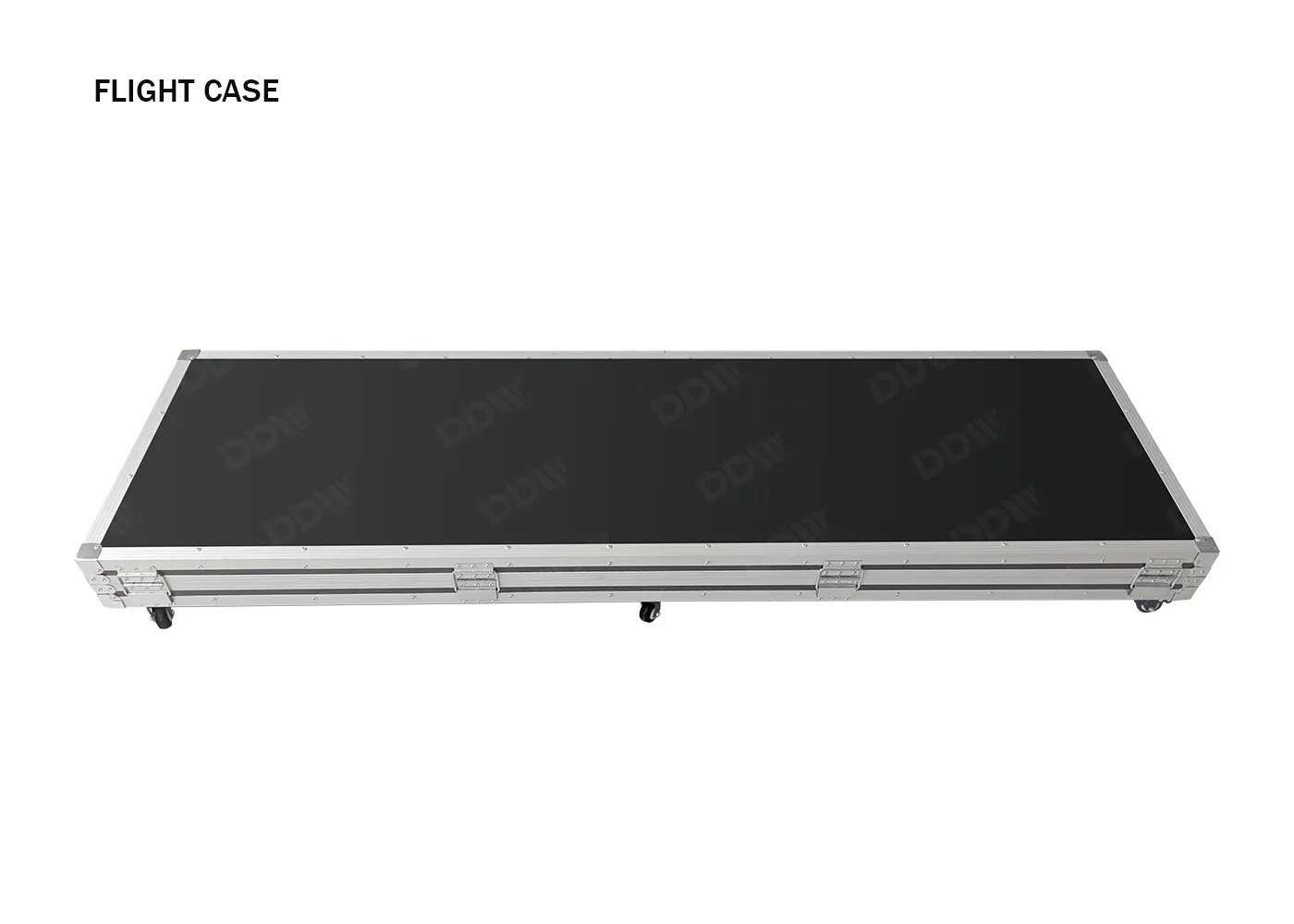

Flight case
Flight case

Related Products

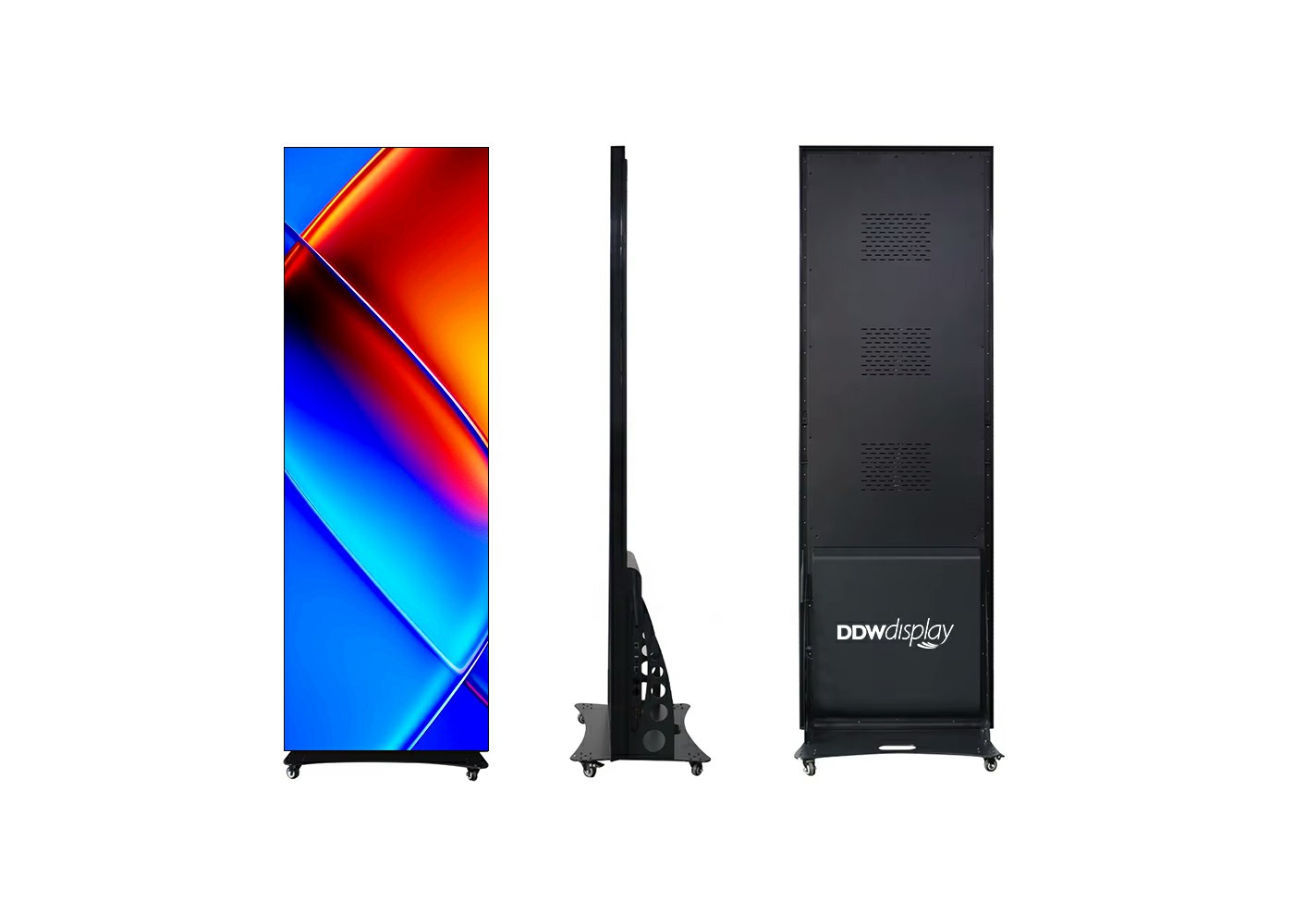

PI Series Indoor LED Poster
