FU series Ultra stretched ultra thin LED Screen

P1.5 P1.9 P2.5 P2.6 P2.9 P3.9 500x250/750x250/1000x250, support single and double sided mount,widely used in airport,exhibition hall,shopping malls, science exhibitions, concerts, theaters, TV studio, creative exhibition hall and other multimedia areas.

Features

3840 Hz

Wide Viewing Angles

Magnetic Suction Installation

High Flexibility

Common Cathode Design

Front Maintenance

Die Cast Aluminum

1200cd High brightness

Advantage

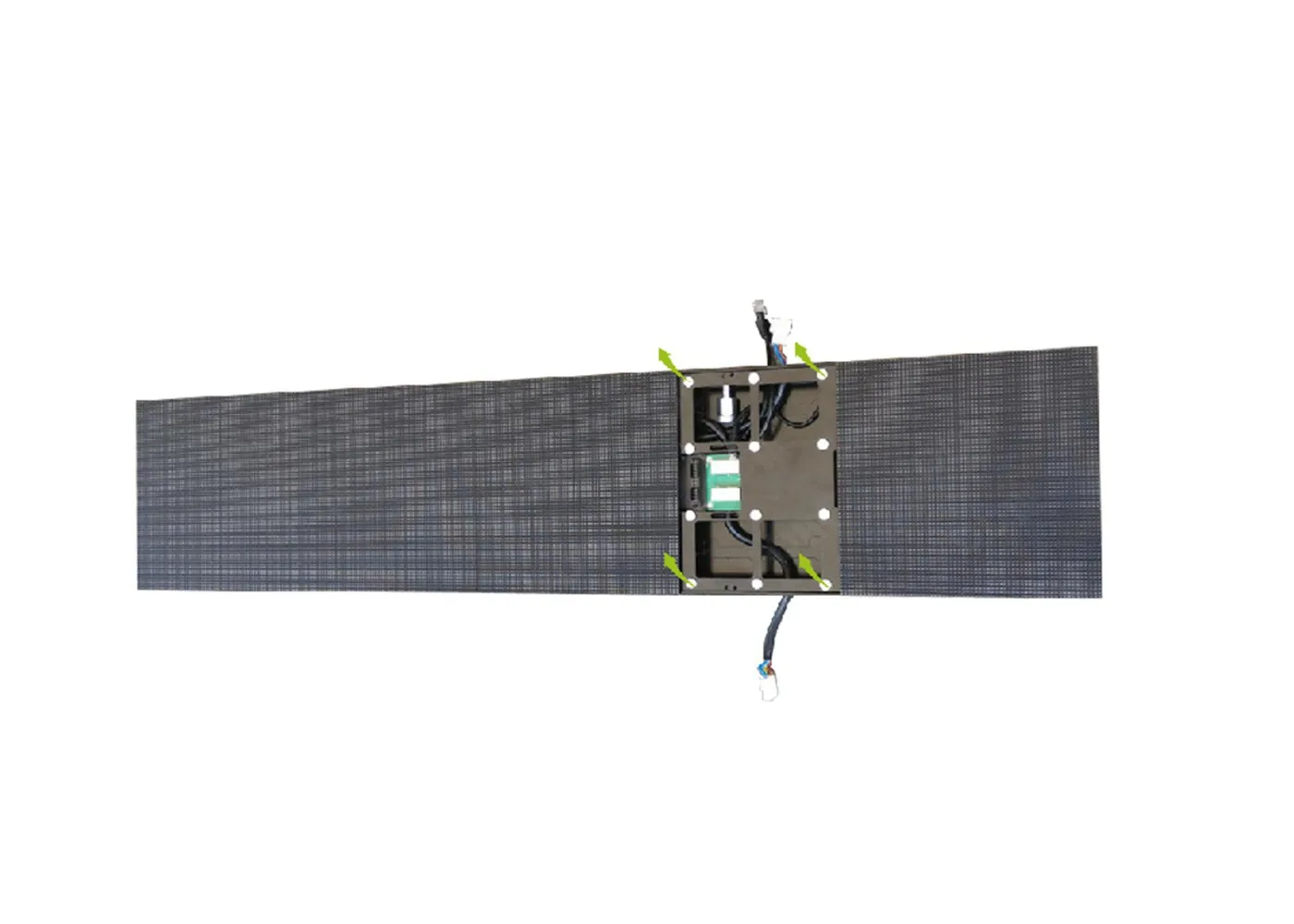

FU Series Ultra Thin Ultra Stretched LED Screen
Feature Description
  • - Ultra-thin (thickness only 33mm)
  • - Ultra-light (single box weighs only 7.0kg)
  • - Double-sided display, can be synchronous or asynchronous to meet different needs
  • - Support split-screen multi-module display
  • - High brightness and contrast, good color saturation

Video

FU Series Ultra Thin Ultra Stretched LED Screen

Parameters

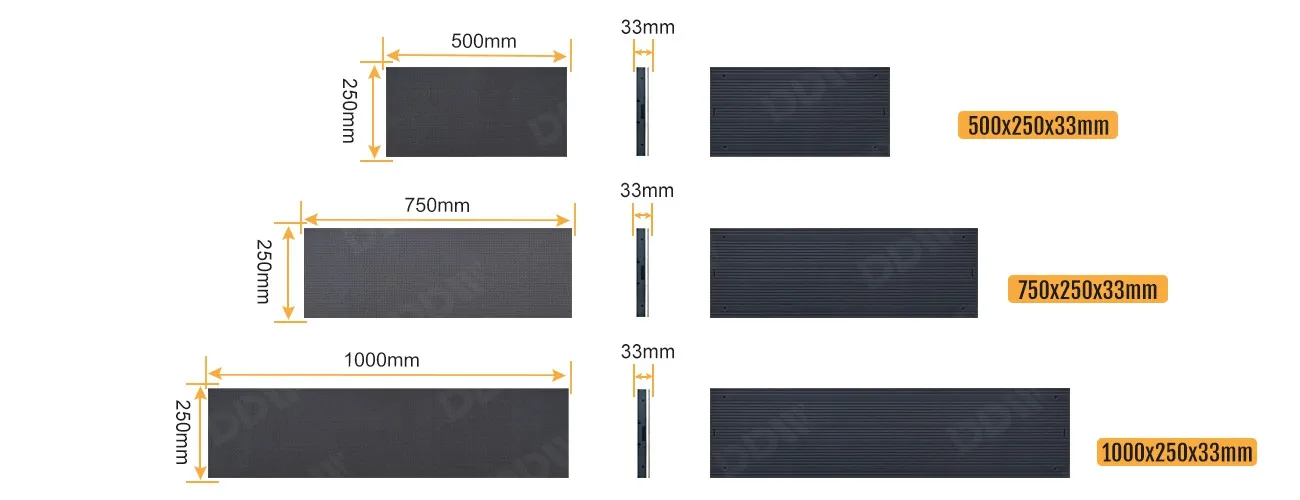

Optional cabinet dimension

500x250x33mm/750x250x33mm/1000x250x33mm

FU Series Ultra Thin Ultra Stretched LED Screen

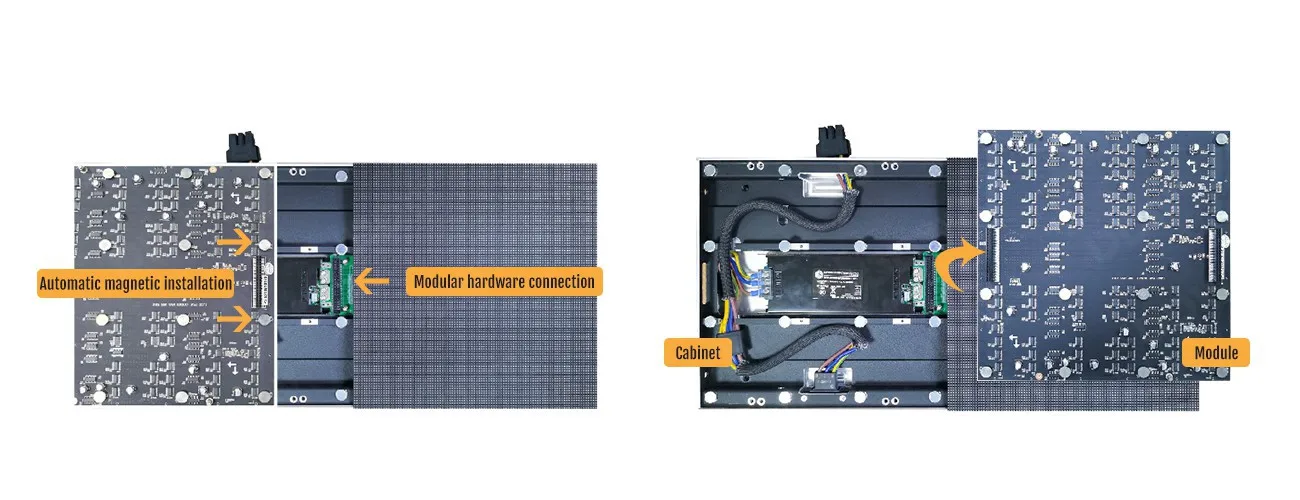

Hot swapping wireless connection

Modules adopt HUB connection, safer signal transmission.The hot swapping technology is a key point that achieves the continuous operation and uninterrupted maintenance.

FU Series Ultra Thin Ultra Stretched LED Screen

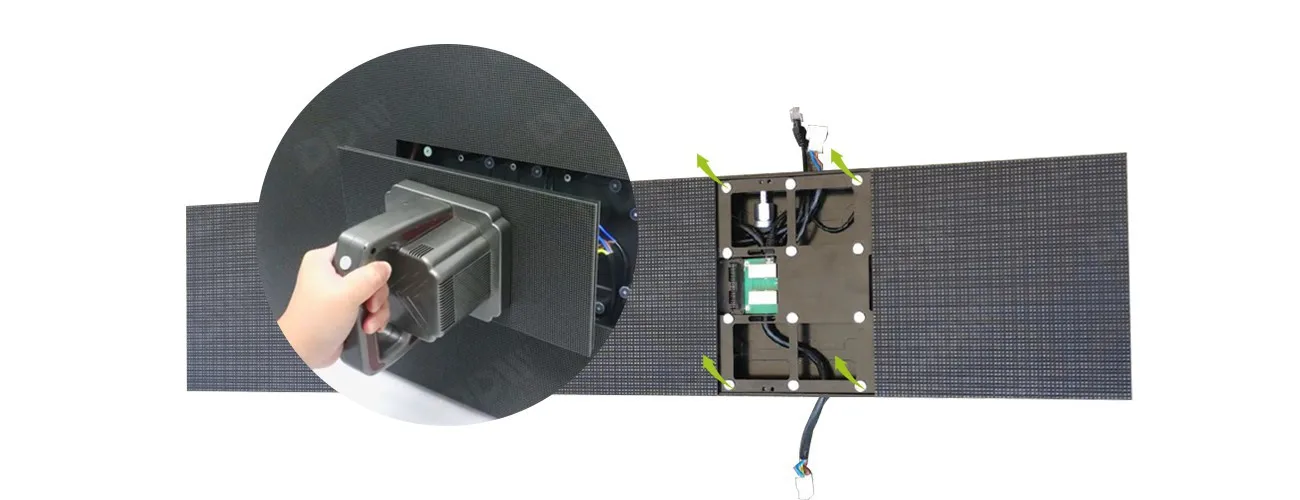

Full front maintenance

Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble and disassemble easily and quickly.

FU Series Ultra Thin Ultra Stretched LED Screen

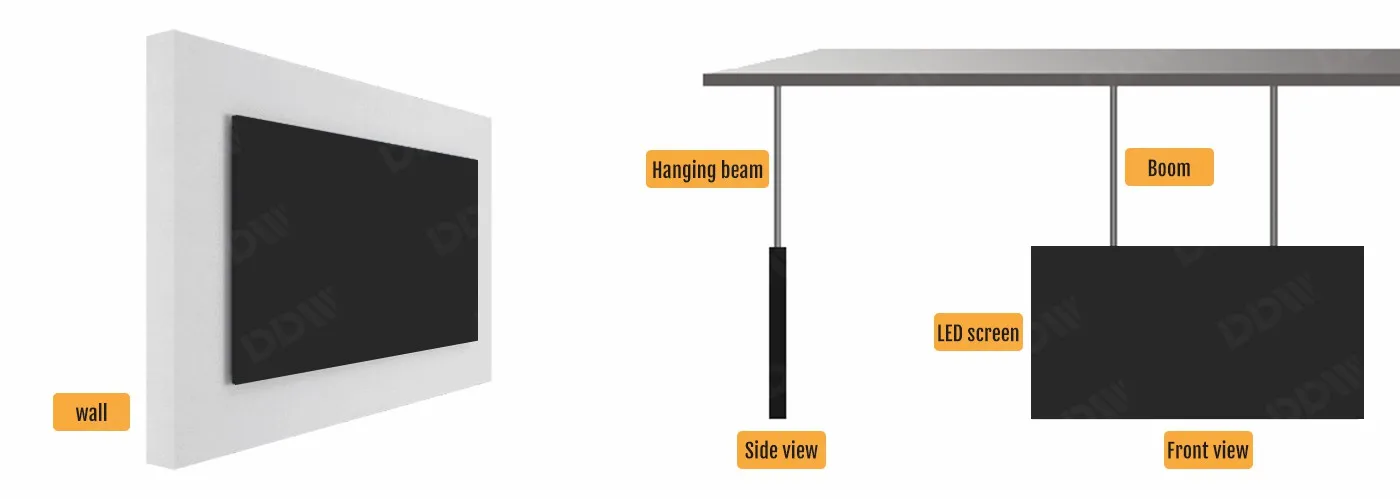

Installation

Wall hanging and hanging installation
FU Series Ultra Thin Ultra Stretched LED Screen

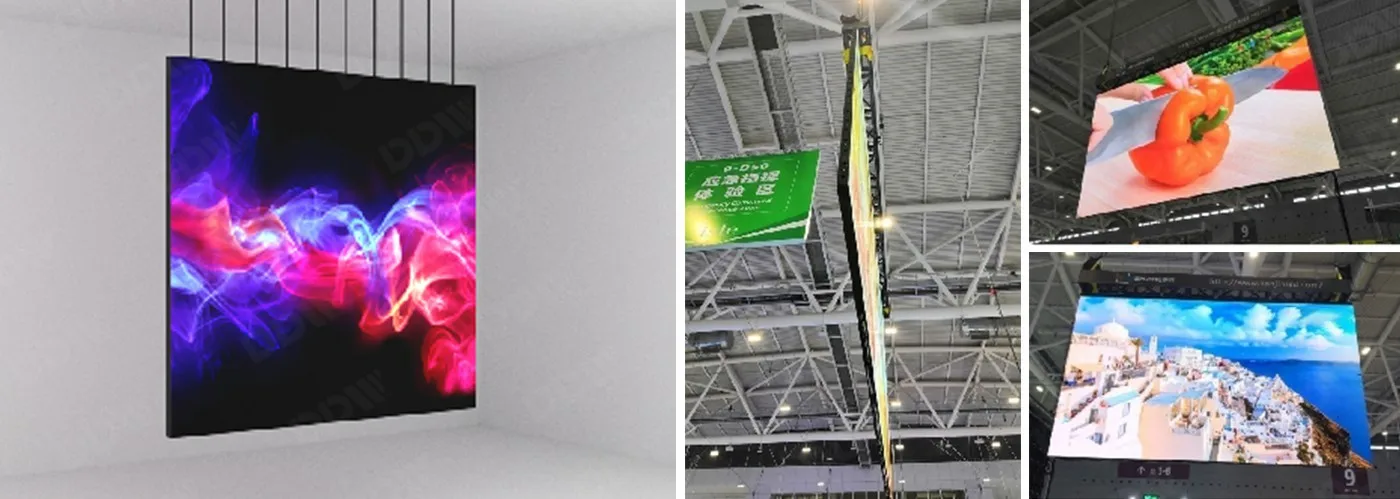

Hanging Installation
FU Series Ultra Thin Ultra Stretched LED Screen

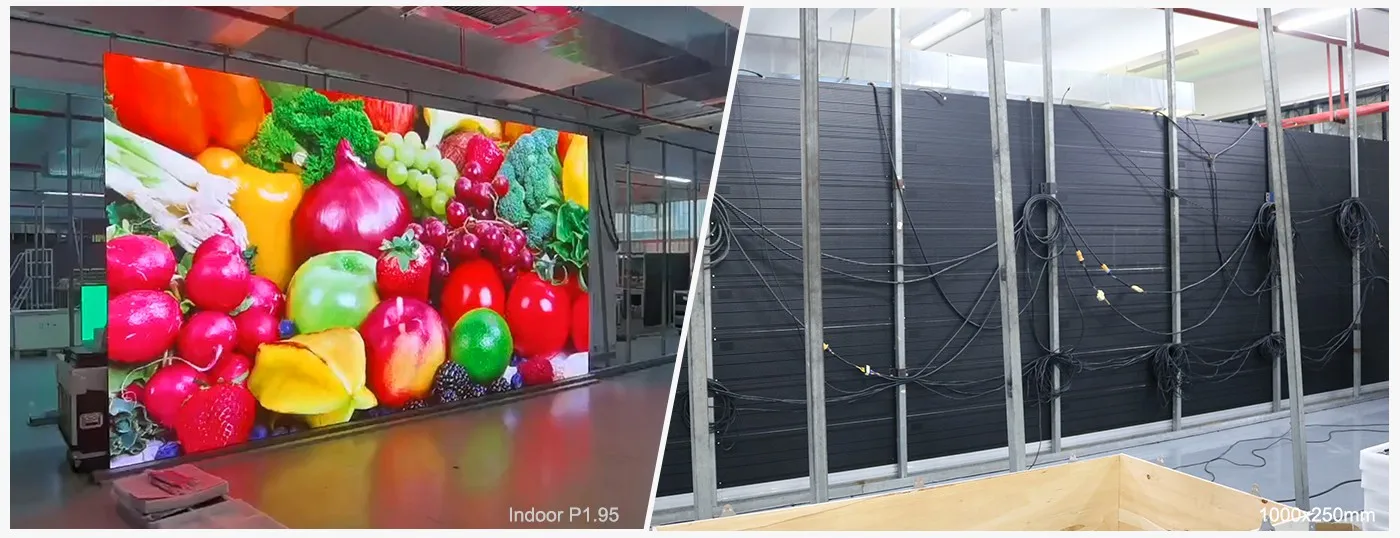

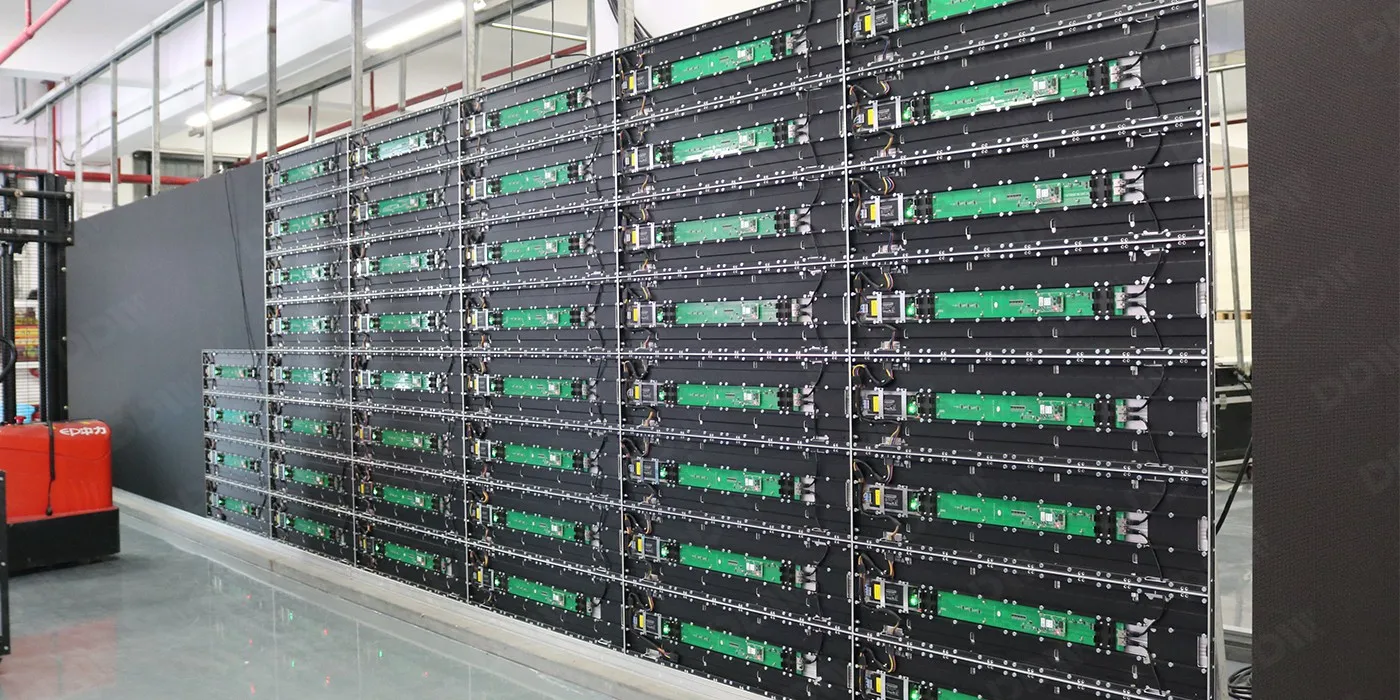

Aging test
FU Series Ultra Thin Ultra Stretched LED Screen

Specifications

  P1.56 P1.95 P2.5 P2.604 P2.976 P3.91
LED type SMD1212 SMD1515 SMD1515 SMD1515 SMD1515 SMD2121
Physical density(dots/sq.m) 409600 262144 160000 147456 112896 65536
Module resolution 160X160 128X128 100X100 96X96 84X84 64X64
Module dimension(mm) 250X250 250X250 250X250 250X250 250X250 250X250
Module quantity(W×H) 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1 4X1/3X1/2X1
Panel resolution 640X160 512X128 400X100 384X96 336X84 256X64
Maintenance Front access service Front access service Front access service Front access service Front access service Front access service
Cabinet material Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
Pixel calibration Yes Yes Yes Yes Yes Yes
Brightness(cd/m²) 500 700 800 800 800-1000 1000-1200
Color temperature(K) 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional 3200-9300 Optional
Grey scale(bit) 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional 14/16 Optional
Viewing angle(V/H) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
Brightness/Color uniformity ≥97% ≥97% ≥97% ≥97% ≥97% ≥97%
contrast 6000:1 5000:1 5000:1 5000:1 5000:1 5000:1
Frequency rate 50/60 50/60 50/60 50/60 50/60 50/60
Drive mode 1/40Scan 1/32 Scan 1/25 Scan 1/32 Scan 1/28 Scan 1/16 Scan
Max power consumption(w/m²) 480 600 600 600 600 800
Avg. power consumption(w/m²) 100-200 100-200 100-200 100-200 100-200 100-200
Electric power AC90-264V 47-63Hz

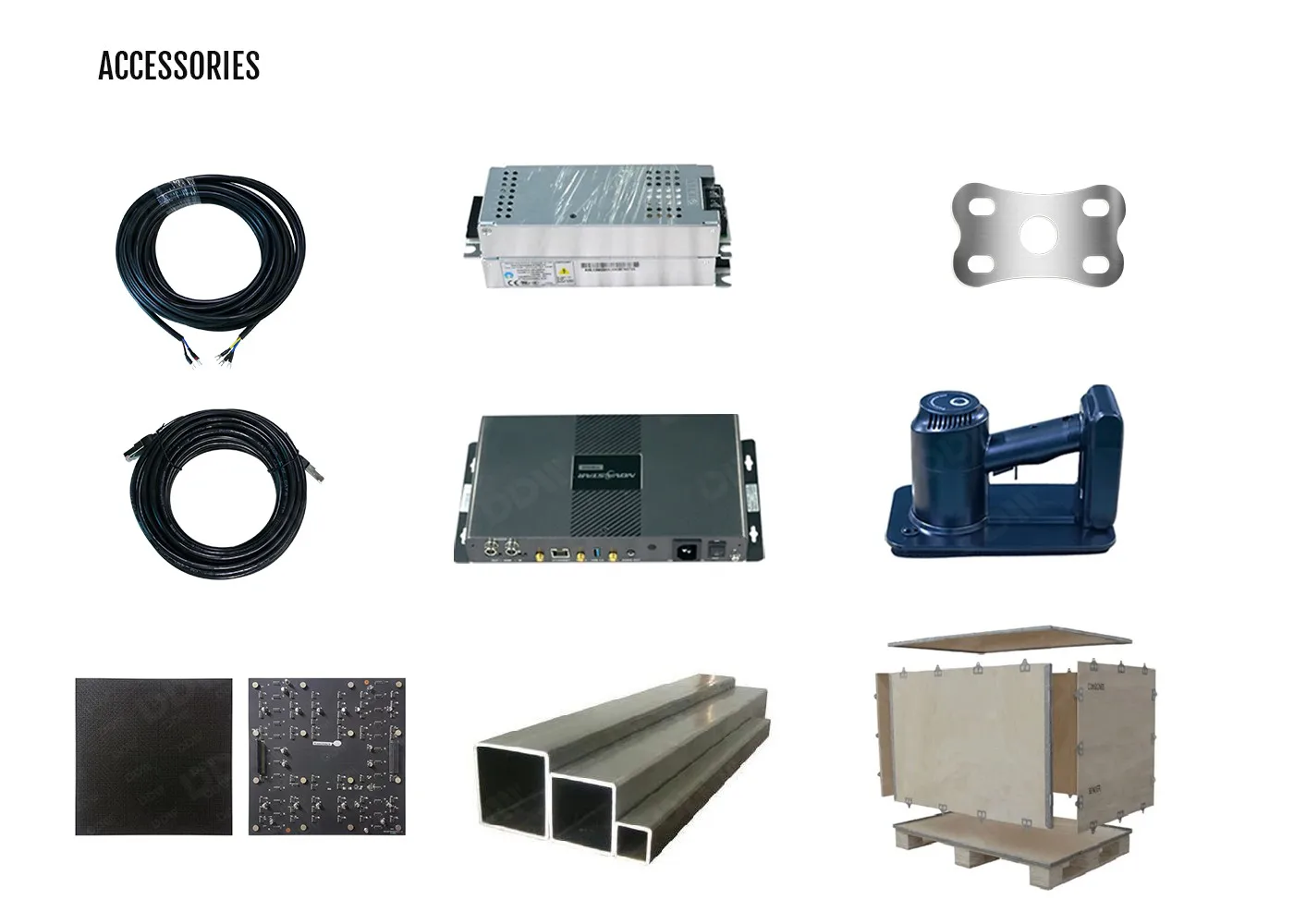

Accessories

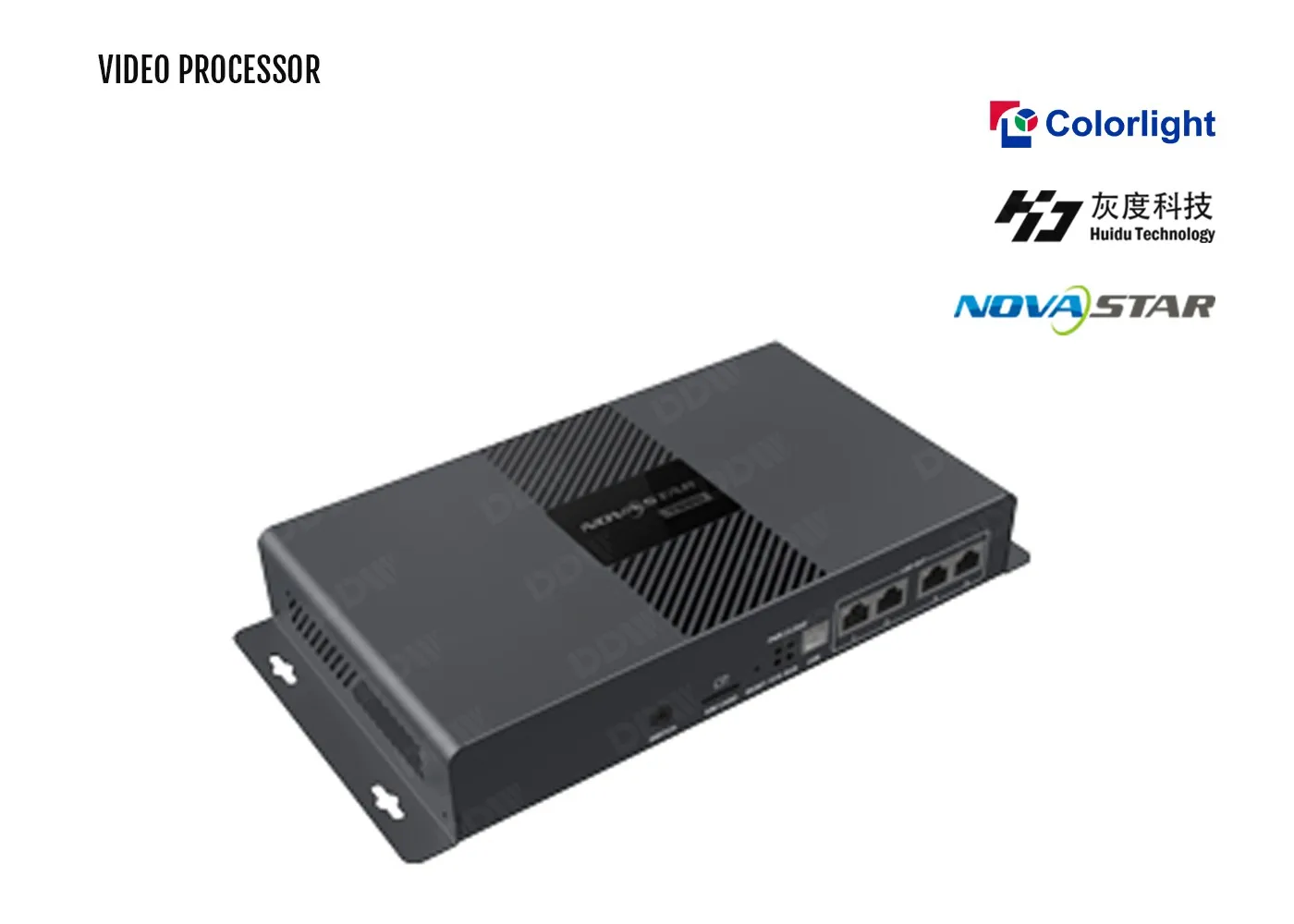

Sending box
Sending box
Power Supply
Power Supply
Pickup card
Pickup card
Outdoor Movable power cabinet
Outdoor Movable power cabinet
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet

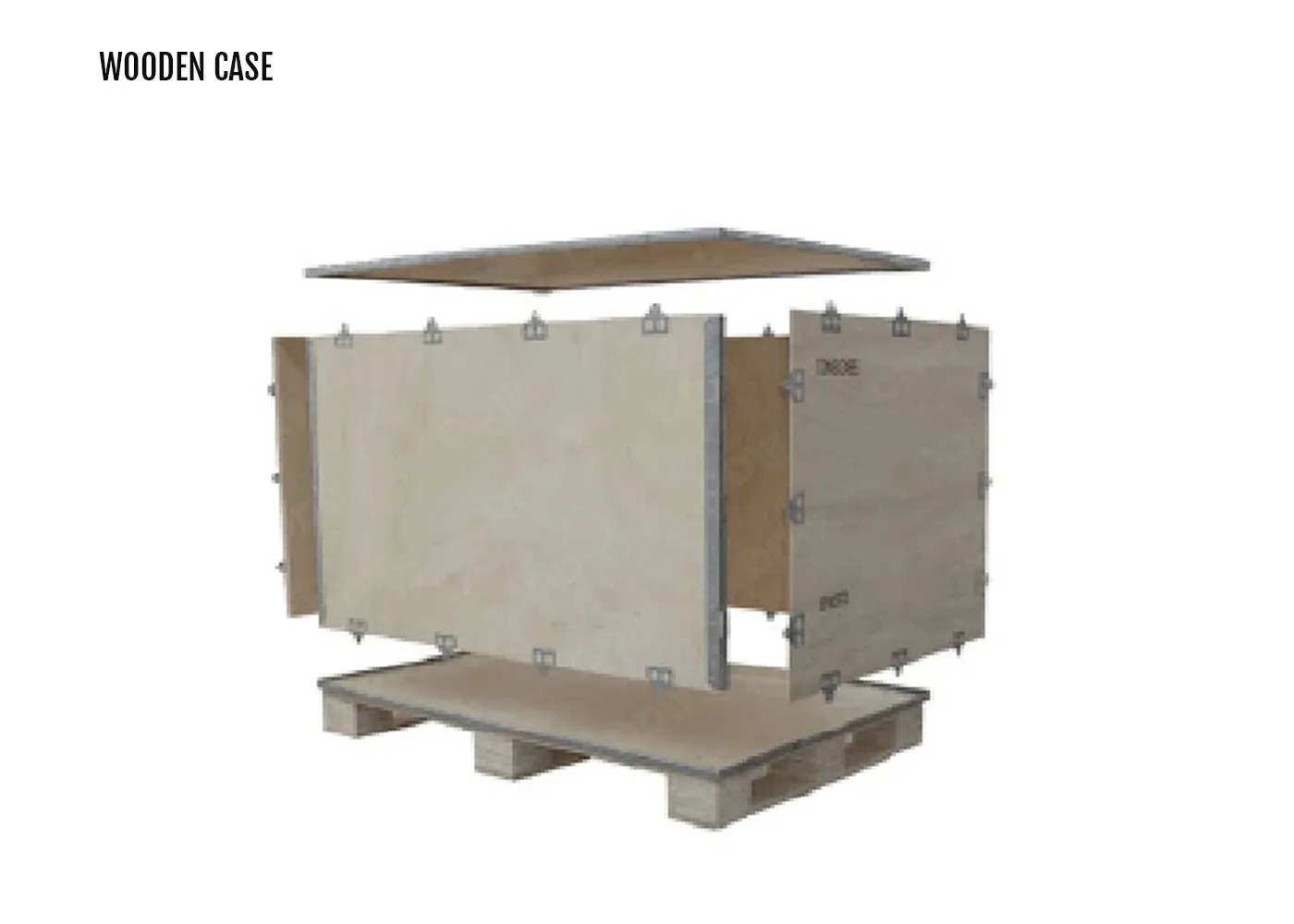

Wooden case packing
Wooden case packing

Related Products

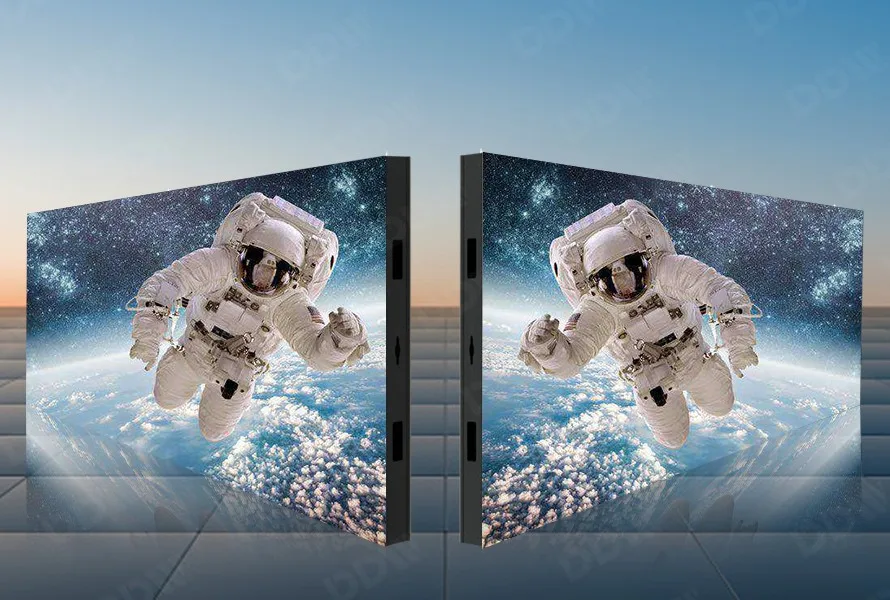

FI series Indoor LED screen
