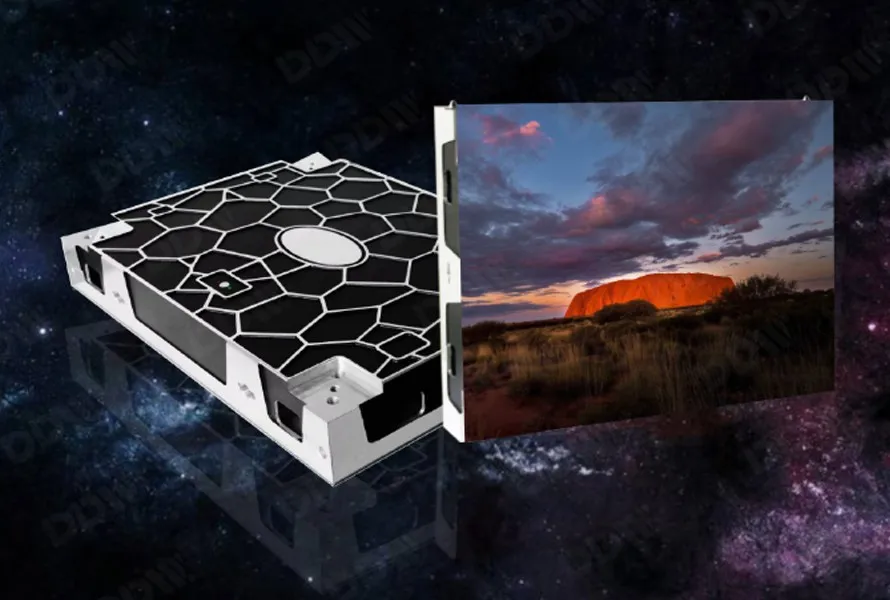

HH series Ultra fine HD LED screen

The cabinet size of HH series is 400*300mm .Key features support power backup and system backup .Also It supports front maintenance ,fixed installation and ceiling installation . And it is compatible with P1.25 P1.56 P1.66 P1.923 pixel pitch .

Features

≥3840Hz

Wide Viewing Angles

Common Cathode Design

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

Right Angle Splicing

Advantages

HH series Ultra fine HD LED screen
Feature Description
  • - Low brightness and high gray technology, 5000:1, low power consumption
  • - 3840Hz refresh rate ,Real and natural for High dynamic picture display,no smear
  • - Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
  • - Metal heat dissipation, ultra-quiet fan less design
  • - Full front maintenance. High precision adjustment
  • - Optional power supply and signal dual backup function
  • - Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration

Video

HH series Ultra fine HD LED screen

Parameters

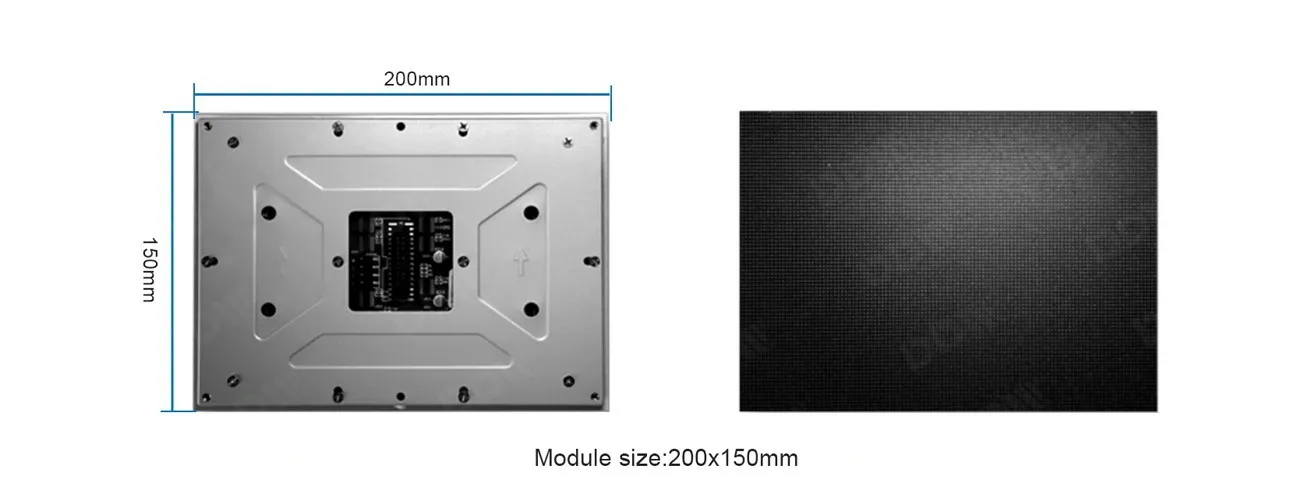

Aluminum module

200x150mm aluminum module

HH series Ultra fine HD LED screen
Magnetic adsorption

Front maintenance design of magnetic suspension adsorption module

HH series Ultra fine HD LED screen
Front maintenance

Support both front installation while fully front-accessible serviceability makes more friendly maintenance and saves your space.

HH series Ultra fine HD LED screen

Installation

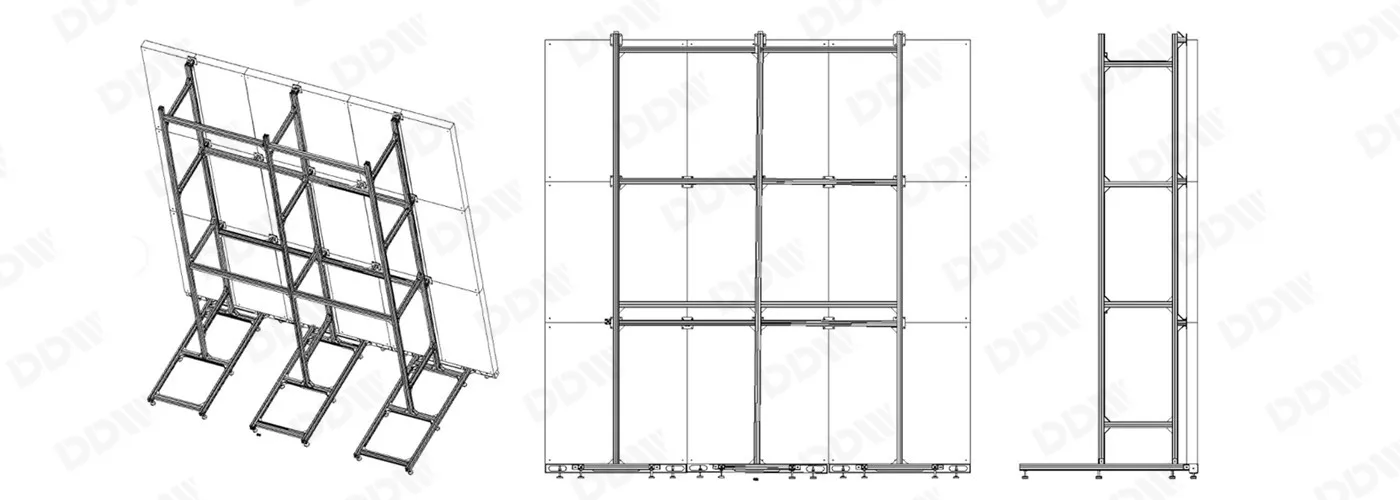

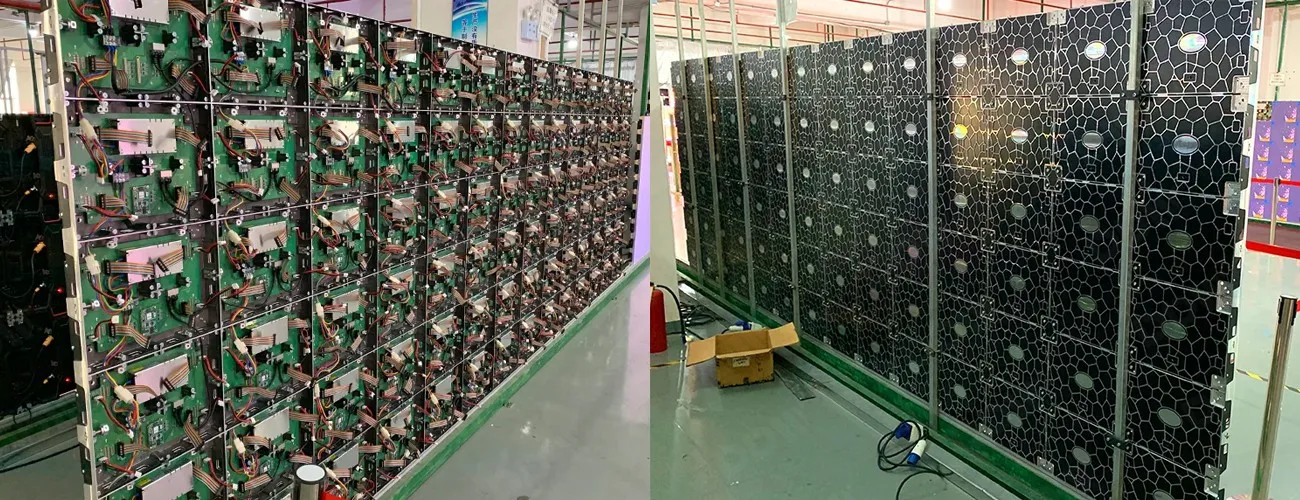

Aluminum profile support
HH series Ultra fine HD LED screen

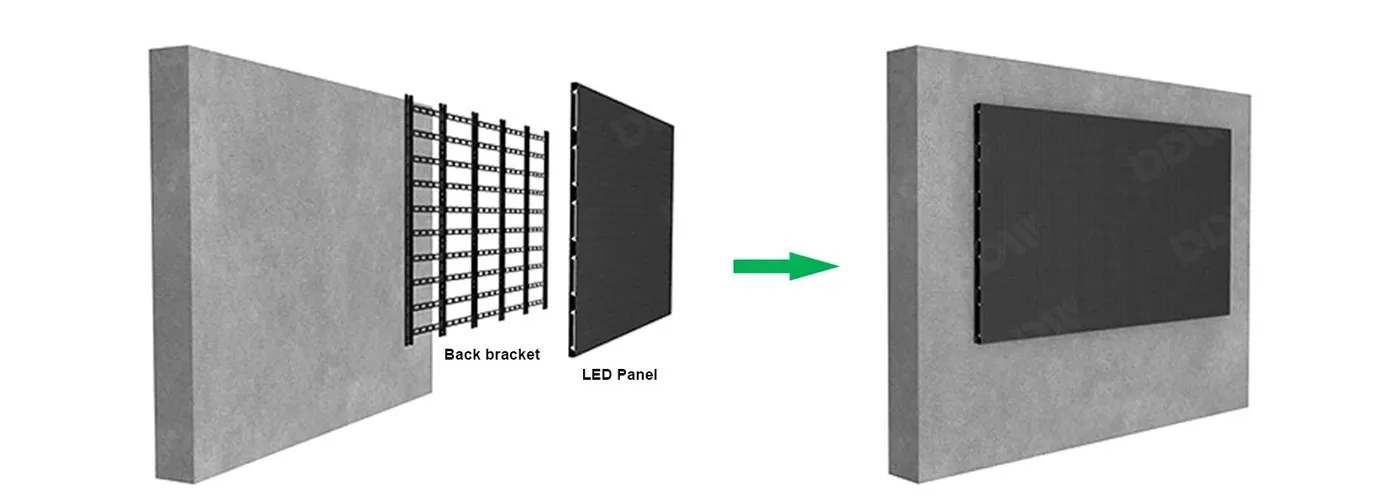

Wall-mounted installation
HH series Ultra fine HD LED screen

Specifications

Pixel pitch 1.25mm 1.56mm 1.667mm 1.923mm
Panel resolution (W×H) 320×240 256×192 240×180 208×156
Module distribution (W×H) 2×2
Flatness between modules ≤0.1mm

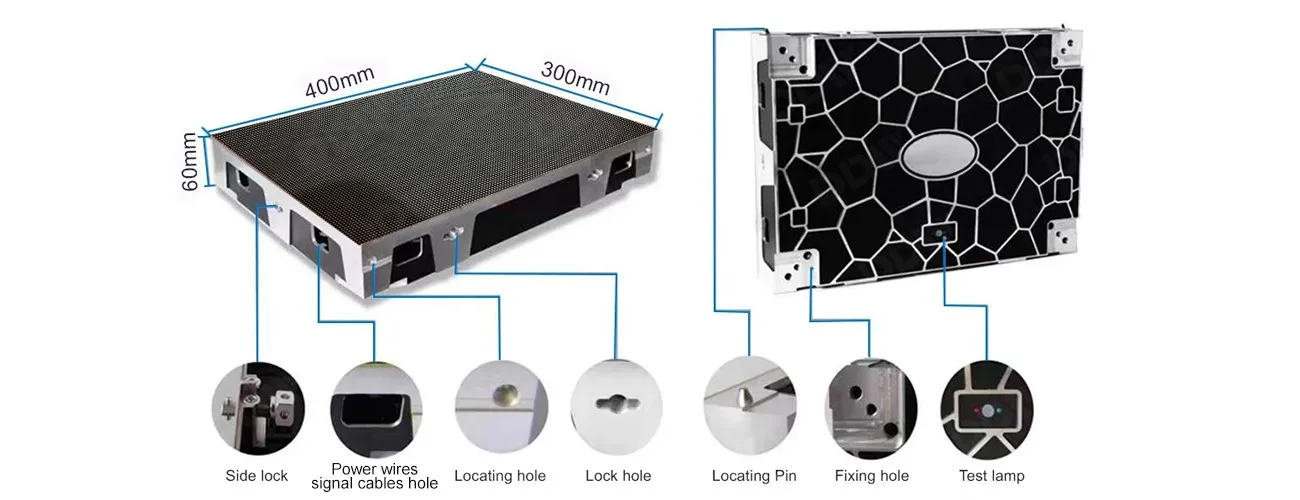

Panel size(WxHxD) 400mmx300mmx60mm
Panel weight  3.5Kg/pc

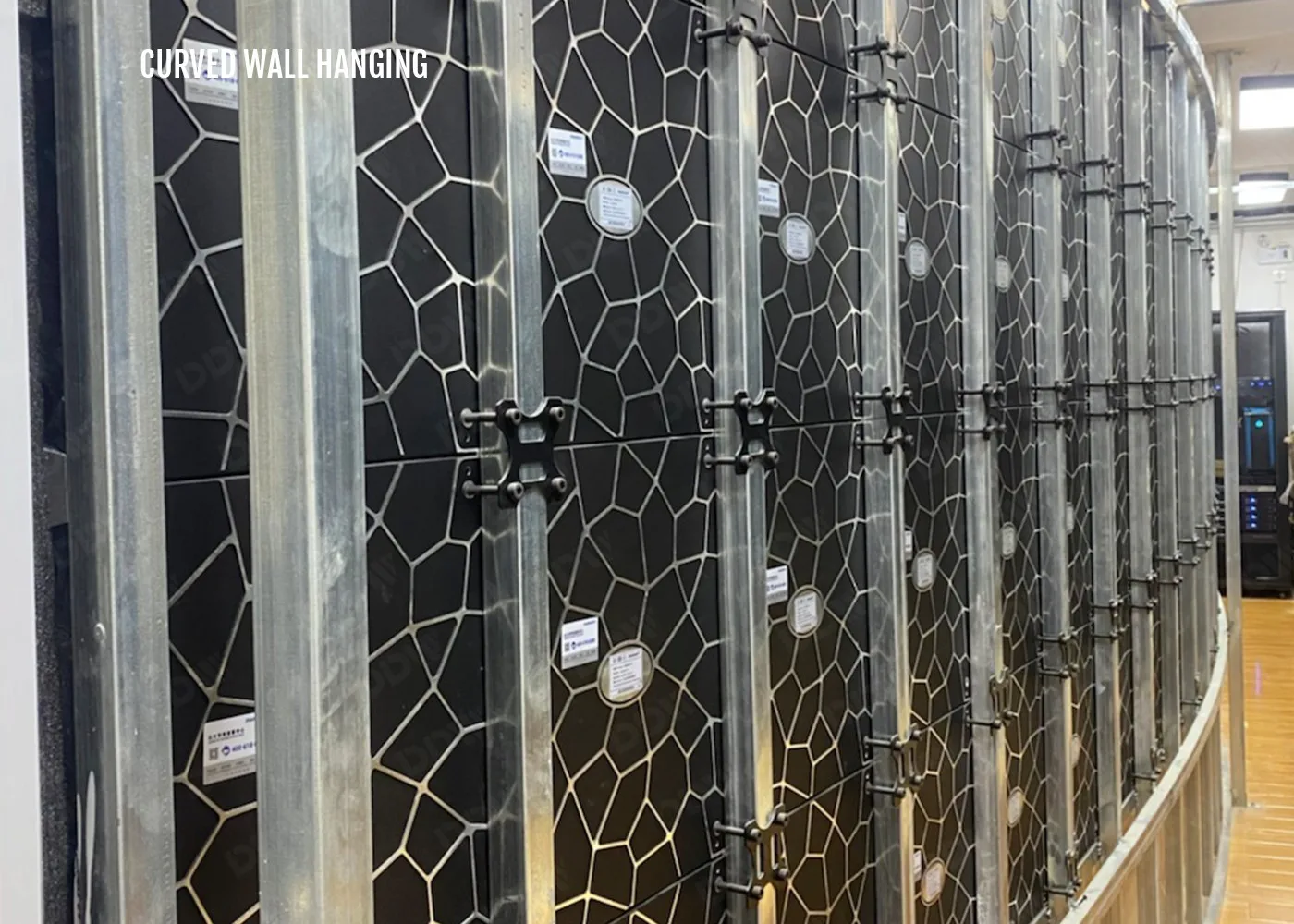

Installation method Back Frame Installation / Hoisting / Inner Arc Installation
Brightness 200cd~800cd/ m’Adjustable
Viewing Angle(H/V) 140°/140°
Driving Way Constant current drive
Refresh rate ≥3840Hz
Working voltage AC : 110V~240V、50~60Hz
Avg.Power Consumption 100w/ m² ~ 300w/ m²
Screen temperature rise(running state) ≤5 degrees
Operating Temperature -10℃ ~60℃
Operating Humidity 10%~90%RH,No condensation
LED Lifetime 100000 hrs

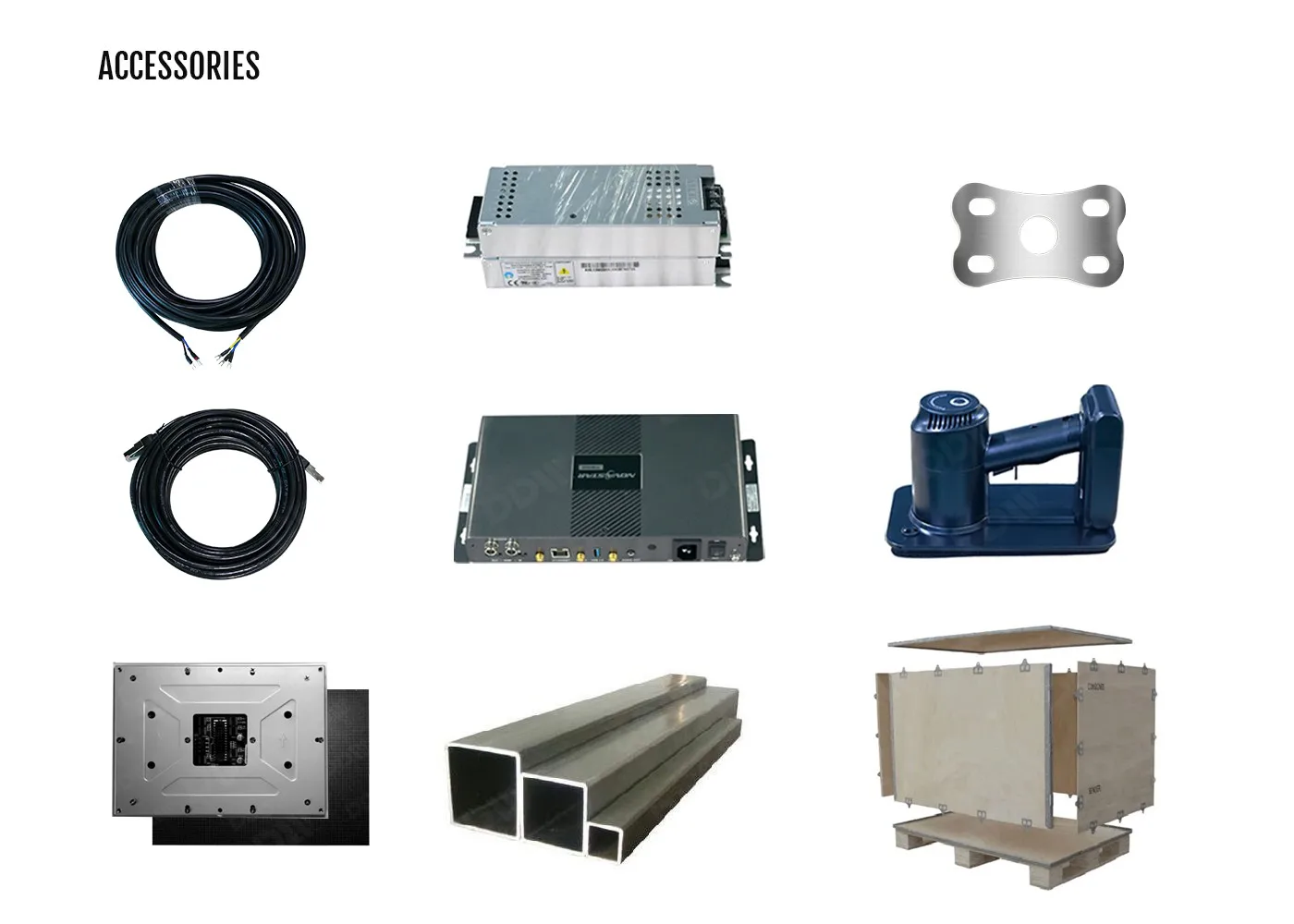

Accessories

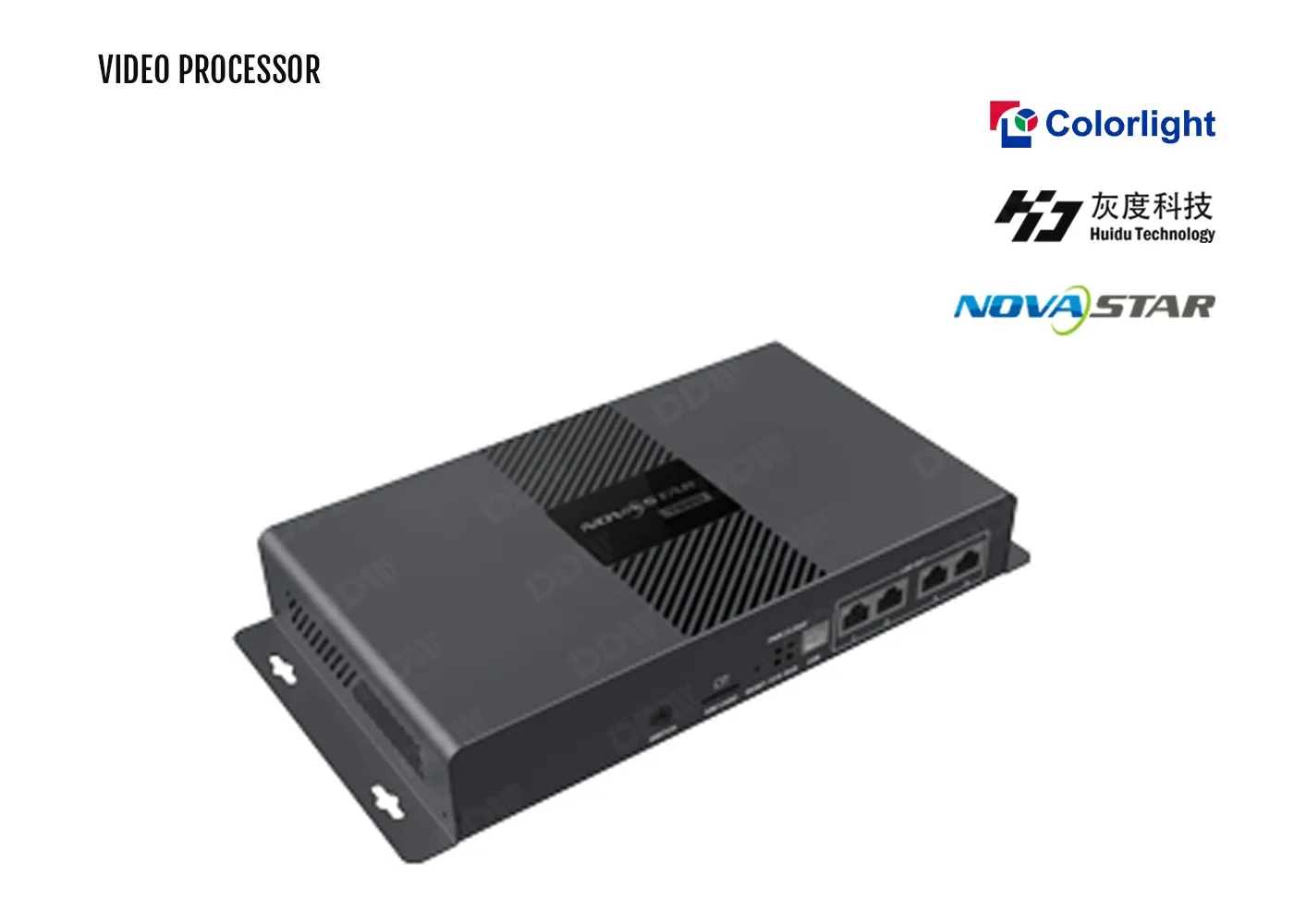

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet

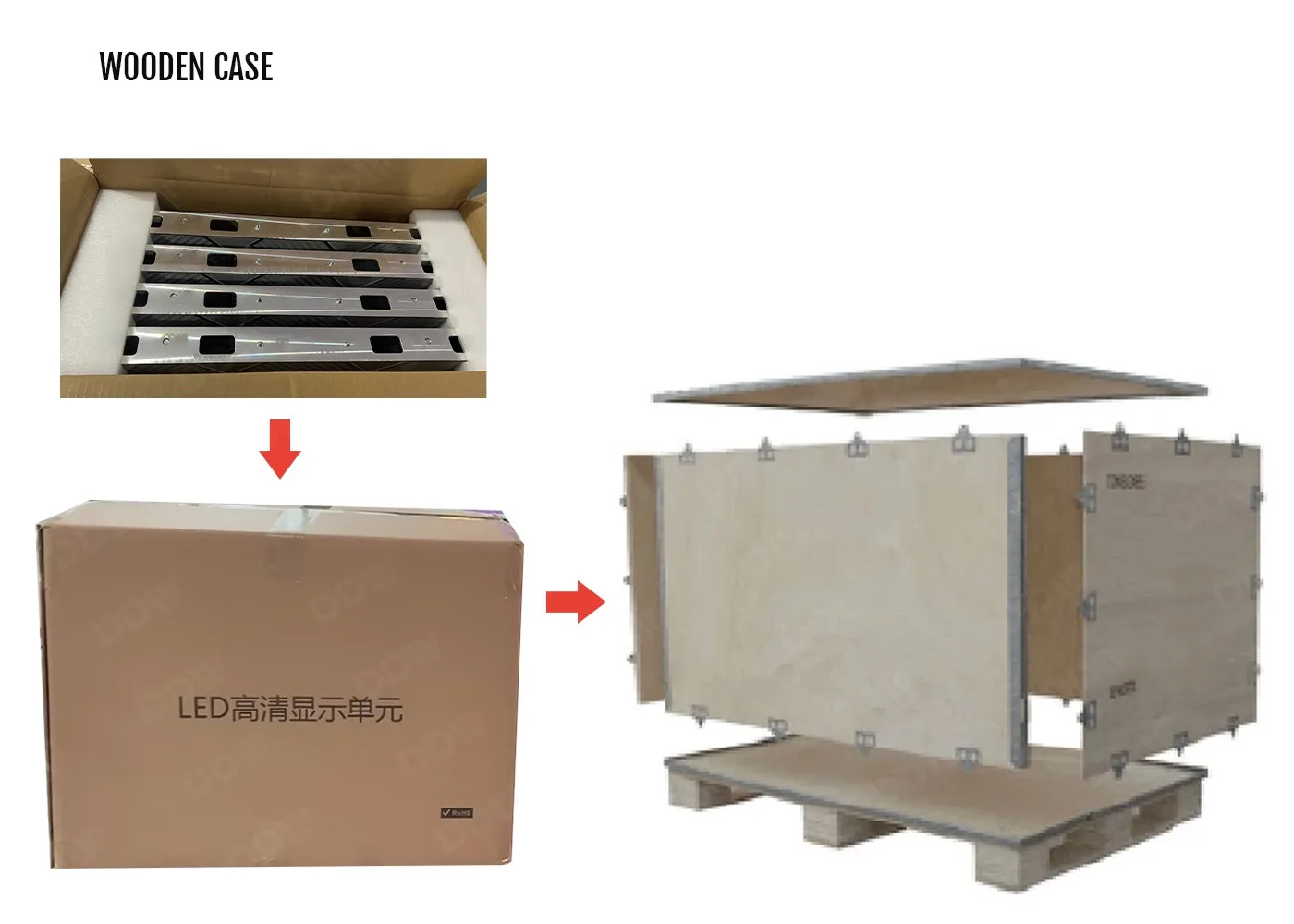

Flight case
Flight case
