HV series Ultra fine HD LED screen

HV series ultra fine hd led display is widely used in high-end HD displays such as smart cities, command and dispatch center, conference medical education, security monitoring and emergency center, radio and television broadcasting hall, military operation command center, airspace and rail transit control room, electric sports events, oil and gas energy control center and other fields.

Features

3840 Hz

Wide Viewing Angles

Common Cathode Design

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

High brightness

Advantages

HV series Ultra fine HD LED screen
Feature Description
  • - Low brightness and high gray technology, 5000:1, low power consumption
  • - 3840Hz refresh rate, high dynamic picture display is real and natural, no smear
  • - Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
  • - Metal heat dissipation, ultra-quiet fan less design
  • - Full front maintenance. High precision adjustment
  • - Optional power supply and signal dual backup function
  • - Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration

Video

HV series Ultra fine HD LED screen

Parameters

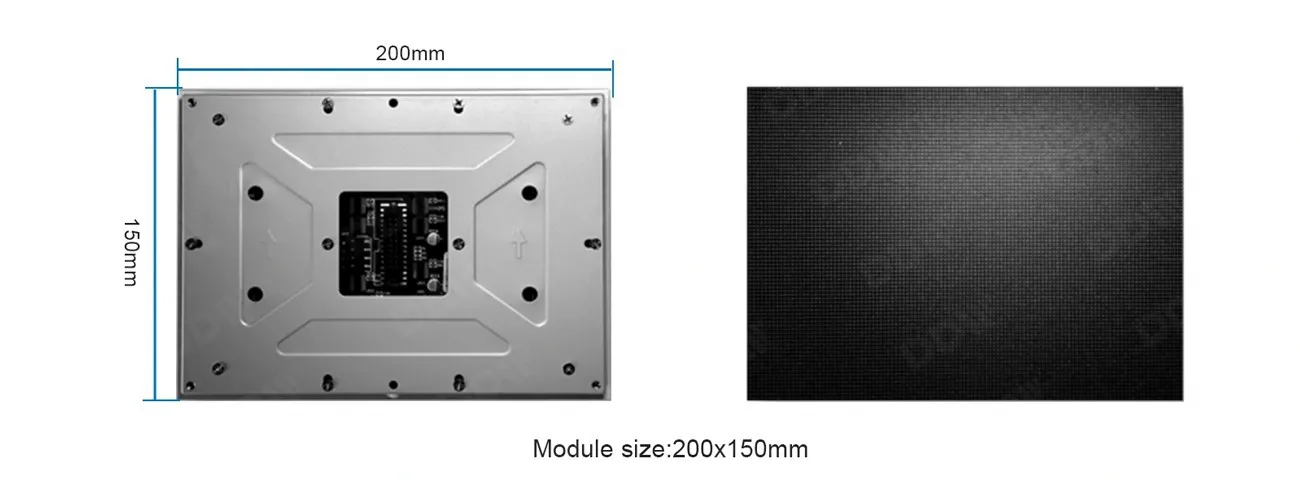

Aluminum module

200x150mm aluminum module

HV series Ultra fine HD LED screen

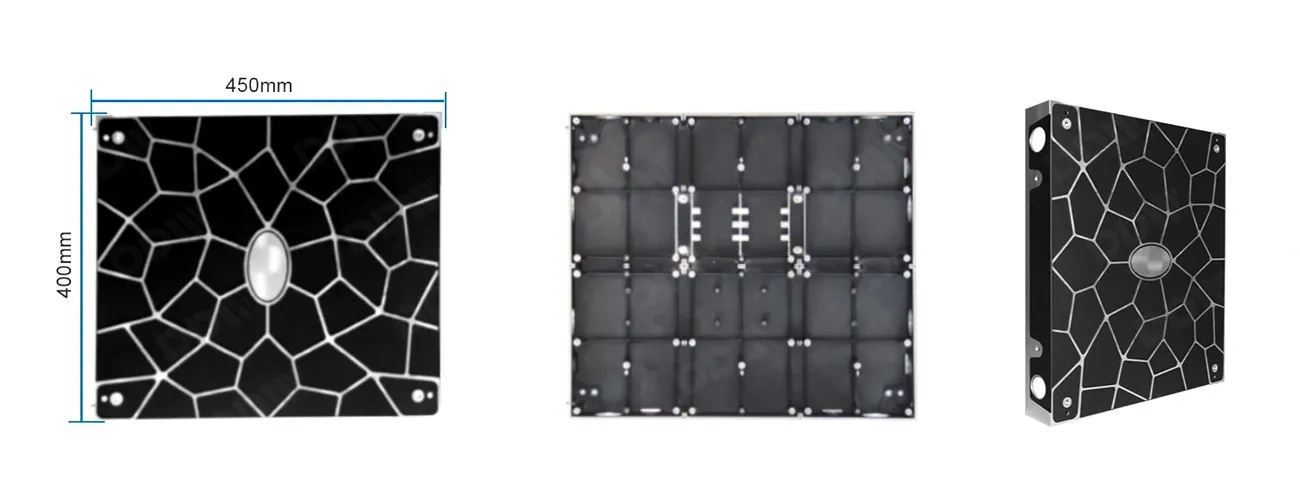

Cabinet Specs

Front maintenance design of magnetic suspension adsorption module

HV series Ultra fine HD LED screen
Front maintenance

Full front maintenance,Module, receiving card, Hub card, power supply takes out from front side.

HV series Ultra fine HD LED screen

Installation

Aluminum profile support
HV series Ultra fine HD LED screen
Wall-mounted installation
HV series Ultra fine HD LED screen

Specifications

Pixel structure (SMD) 1010 1212 1212
Pixel Pitch (mm) 1.25 1.56 1.66
Module Size ( mm) 200x150x3
Module Resolution ( Dots) 160×120 128×96 108×90
Power Load Quantity ( Pcs ) 6
Cabinet Re solution (Dots) 320×360 256×288 240×270
Cabinet Module s ( Pcs ) 2×3
Cabinet Size ( m m ) 400x450x59
Cabinet Flatness ( mm) <0.1
Viewing Angle vertical horizontal pers pe ctive ≥160°
Scanning Mode 1/60 1/48 1/45
Protection Level IP55

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet
Flight case
Flight case
