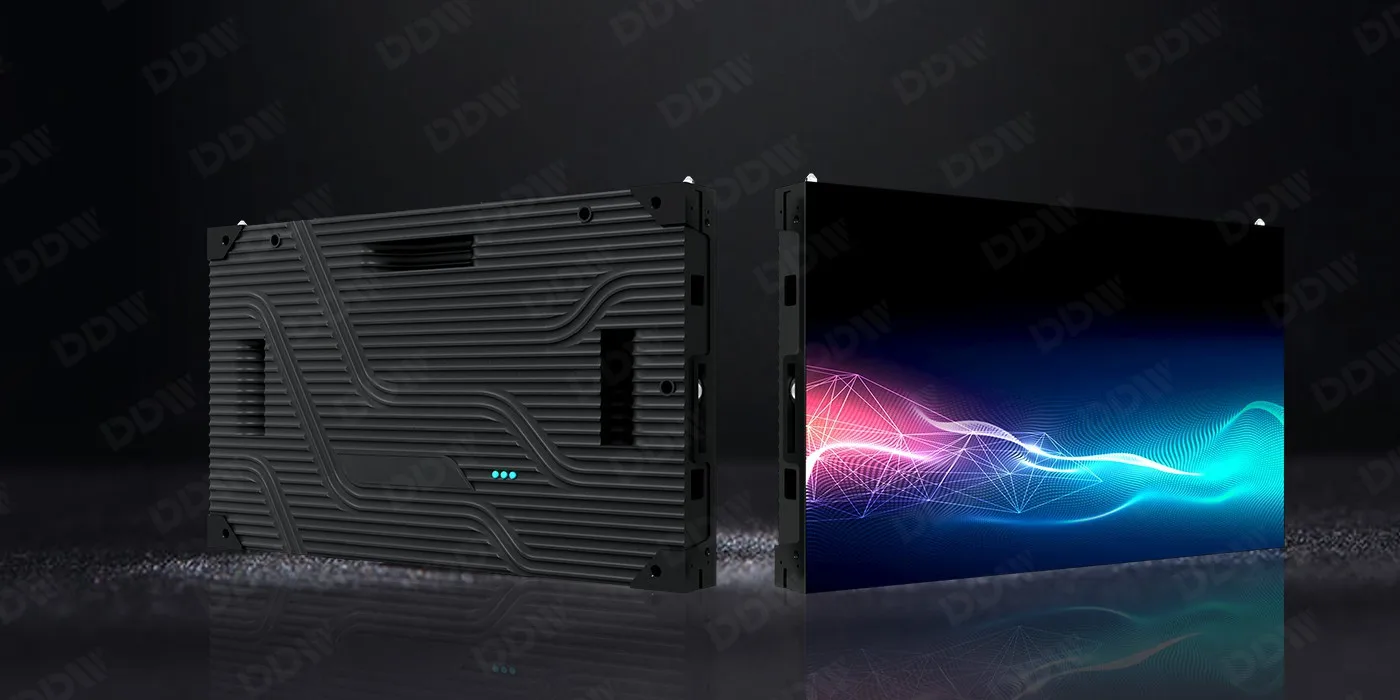

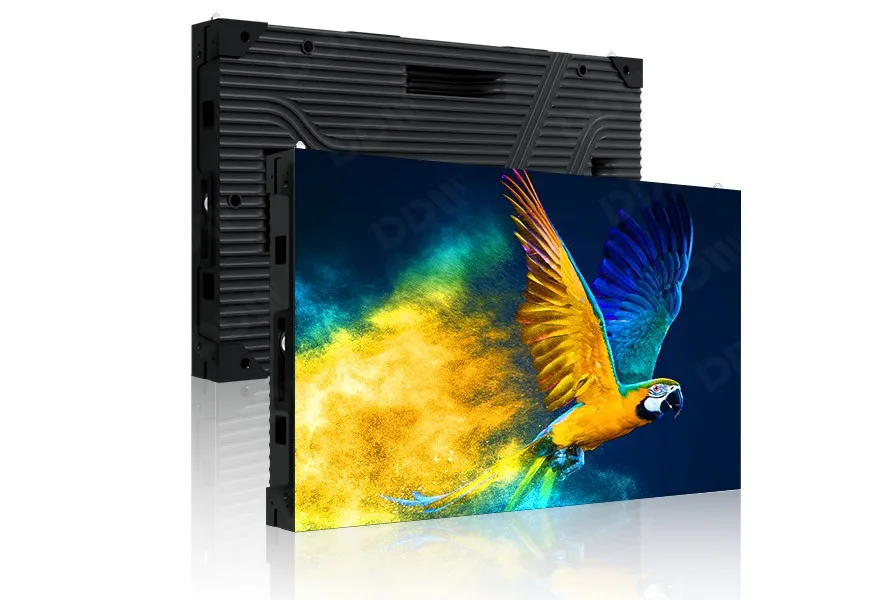

HX series Ultra fine HD LED screen

16 : 9 Cabinet Design with 600×337.5x48mm size, high flatness, Front service design for easy install and disassemble, High definition quality image with excellent visual effect.

Features

Upto 3840Hz

Wide Viewing Angles

Dual Card Backup

High Flexibility

Magnetic Suction Installation

Front Maintenance

Die Cast Aluminum

7kg/pc

Advantages

HK series Ultra fine HD LED screen
Feature Description
  • - Low brightness and high gray technology, 8000:1, low power consumption
  • - 3840Hz refresh rate,real and natural high dynamic picture display ,no smear
  • - Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
  • - Natural heat dissipation of the cabinet, ultra- quiet fanless design, reducing screen heat and noise
  • - Full front maintenance. High precision adjustment
  • - Optional power supply and signal dual backup function
  • - Die-cast aluminum design, seamless border less, infinite splicing

Video

HK series Ultra fine HD LED screen

Parameters

16:9 Cabinet Design

16:9 Golden Ratio Fine Pitch LED Display features , Die cast aluminum cabinet with 600×337.5mm size, Better color uniformity and high definition display visual quality.

HK series Ultra fine HD LED screen

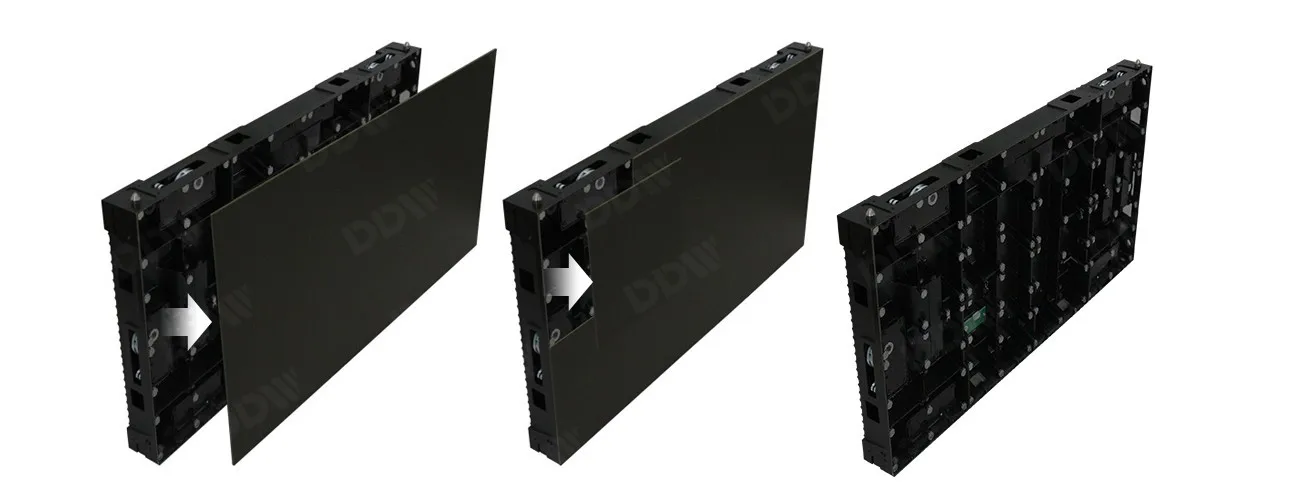

Front Service, Easy Maintenance

The front service HD LED screen with ultra thin cabinet, meets, the needs of small space,enhancing the vision of the space as well as its' visionary effect. It allows for easy maintenance, saving time and labor on site.

HK series Ultra fine HD LED screen

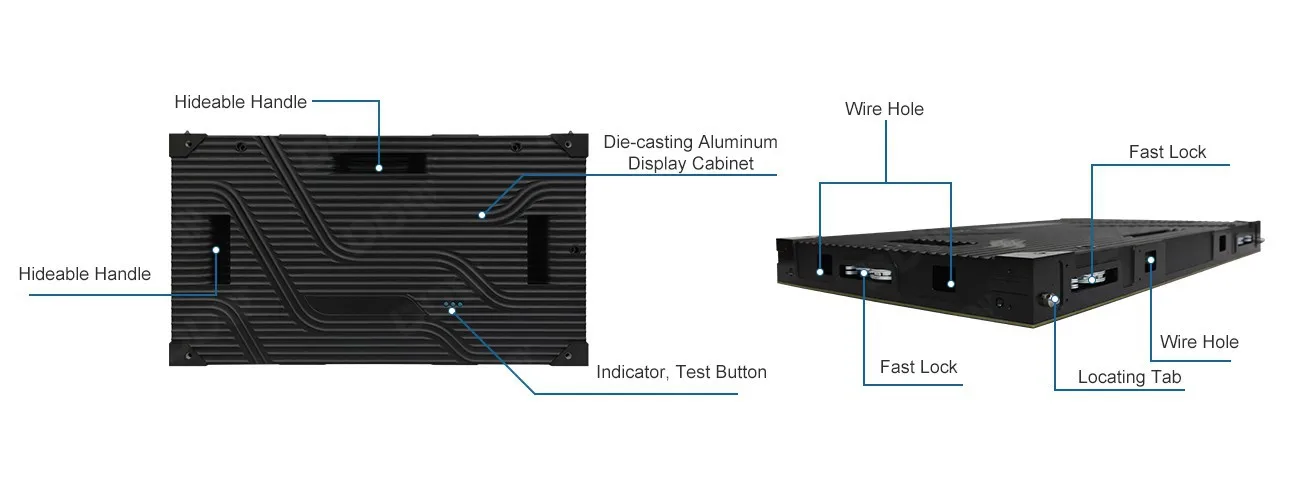

Perfect Cabinet Structure

Unique Cabinet Design with elegant appearance and human layout, Perfect cabinet from hideable handle, fast locks, panel module, power & signal indicator and wire hole.

HK series Ultra fine HD LED screen

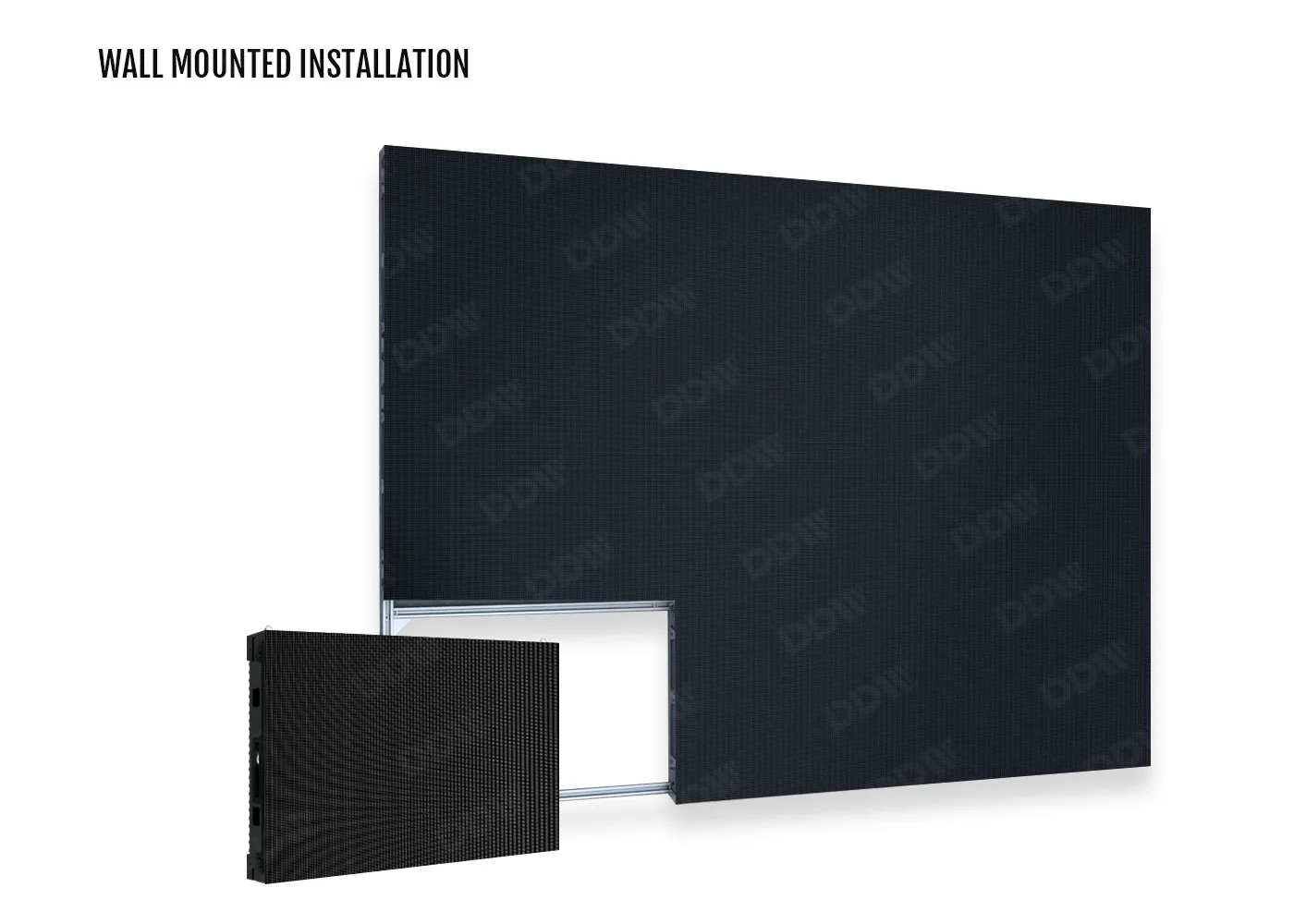

Installation

Aluminum profile support
HX series Ultra fine HD LED screen
Various installation mode
HK series Ultra fine HD LED screen

Specifications

Pixel Pitch P0.78125 P0.9375 P1.25 P1.5625 P1.875
LED Type Mini 4-in-1 Mini 4-in-1 SMD1010 SMD1010/1212 SMD1010/ SMD1515
Physial Density (dots/m²) 1638400 1137778 640000 409600 284444
Module Resolution 192x216 320x180 240x135 192x108 160x90
Module Size (WxH) 150x168.75 300x168.75 300x168.75 300x168.75 300x168.75
Cabinet Size(mm) 600x337.5x48
Cabinet Resolution 768x512 640x360 480x270 384x216 320x180
Module QTY /Cabinet (WxH) 4x2 2x2 2x2 2x2 2x2
Cabinet Weight(kg) 7
Maintenance Mode Front access
Cabinet Material Die-casting Aluminum
LED brightness correction Yes
Brightness ≥600
Color Temperature(K) 1000-18500 Adjustable
Grey Level 16 bit
Viewing Angle(H/V) 170*/170
Brightness/Color Uniformity ≥99.8%
Contrast Ratio 8000:1
Frame Frequency 50/60
Drive Mode Static, 1/48 Scan Static, 1/46 Scan Static, 1/45 Scan Static, 1/48 Scan Static, 1/45 Scan
Refresh Rate (Hz) 3840
Max Power Consumption(W/m²) 420
Awerage Power Consumption(W/m²) 100
IP Grade IP31
Input Power AC90-264V, 47-63 Hz
Working Temperature/Humidity(°C/RH) -20-60°C / 10%-85%
Storage Temperature/Humidity(°C/RH) -20-60°C / 10%-85%

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet
Flight case
Flight case
