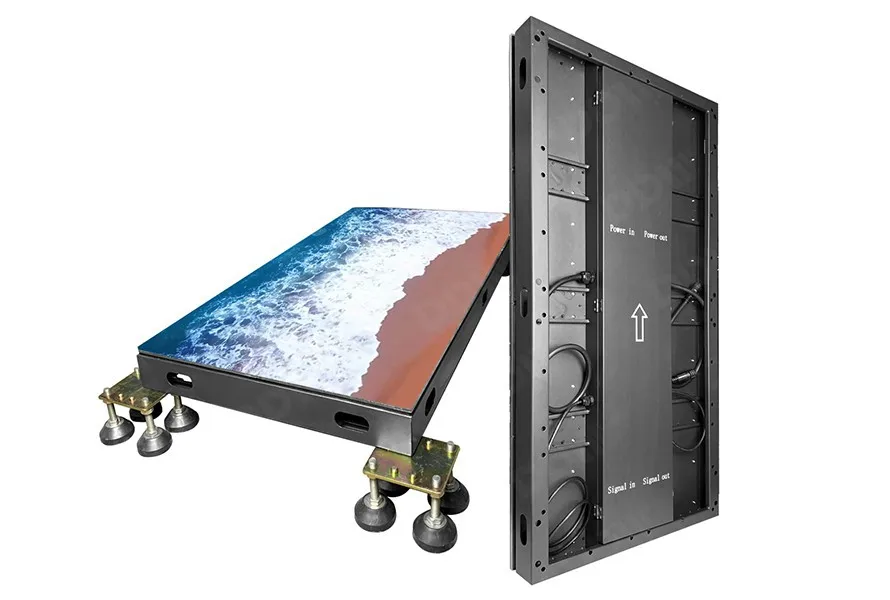

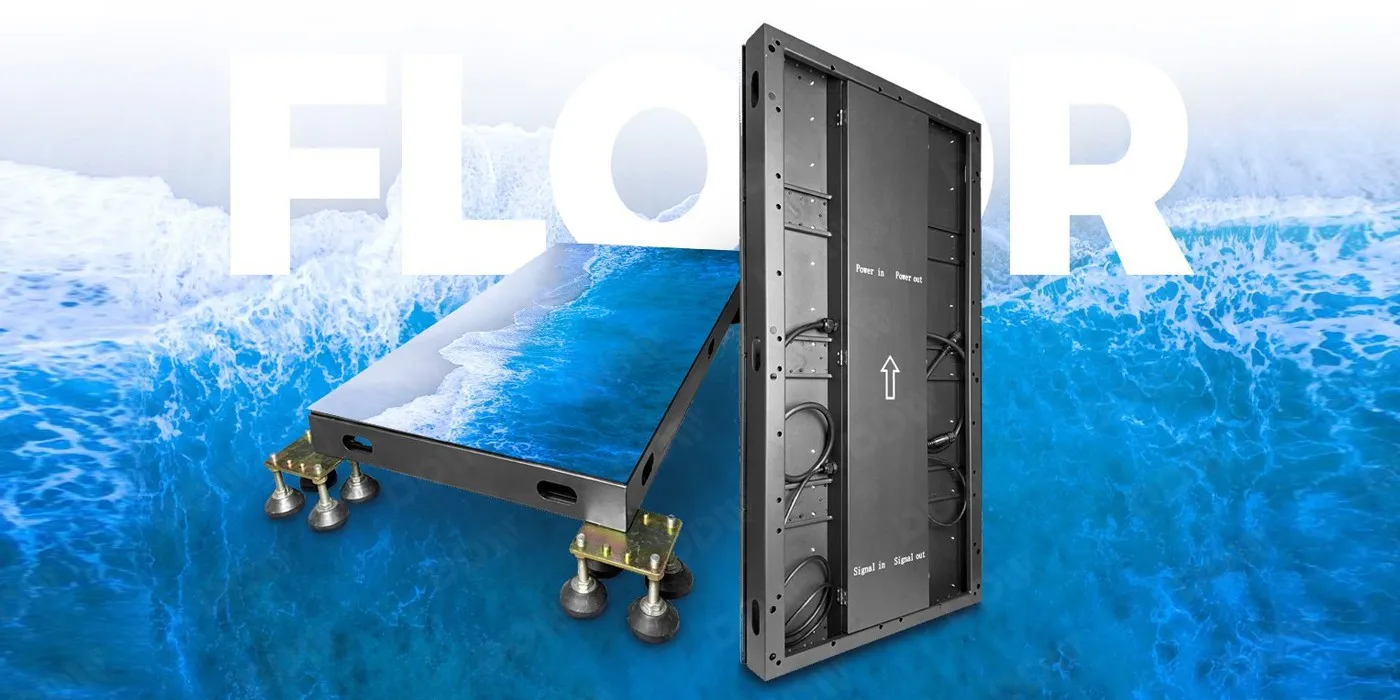

IF series Interactive Floor LED screen

500x500,500x1000,Iron Die-casting aluminum,IP68,P2.976,P3.91,P4.81,P6.25

Features

3840 Hz

Common Cathode Design

Interaction

Wide Viewing Angles

IP68 waterproof

Front rear Maintenance

Iron cabinet

High Strength Structure

Advantages

IF Series Interactive Floor LED screen
Feature Description
  • - Professional mask with unique design
  • - IP68 Waterproof design
  • - High precision and strong strength
  • - Interactive LED Dance Floor Display Module with Anti-scratch Mask
  • - Super Strong Load-bearing Performance

Video

IF Series Interactive Floor LED screen

Parameters

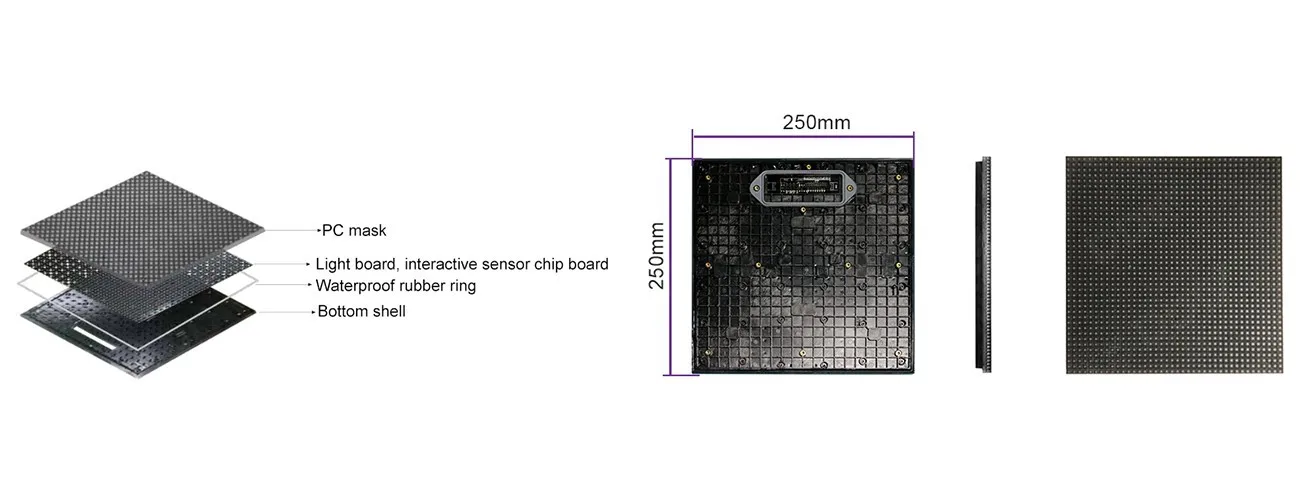

Module Specs

The cabinet is suitable for modules of 250x250mm, and the mask is convexly designed to enhance the wear resistance of the surface of the module,and the protective rubber ring increases waterproof performance

IF Series Interactive Floor LED screen

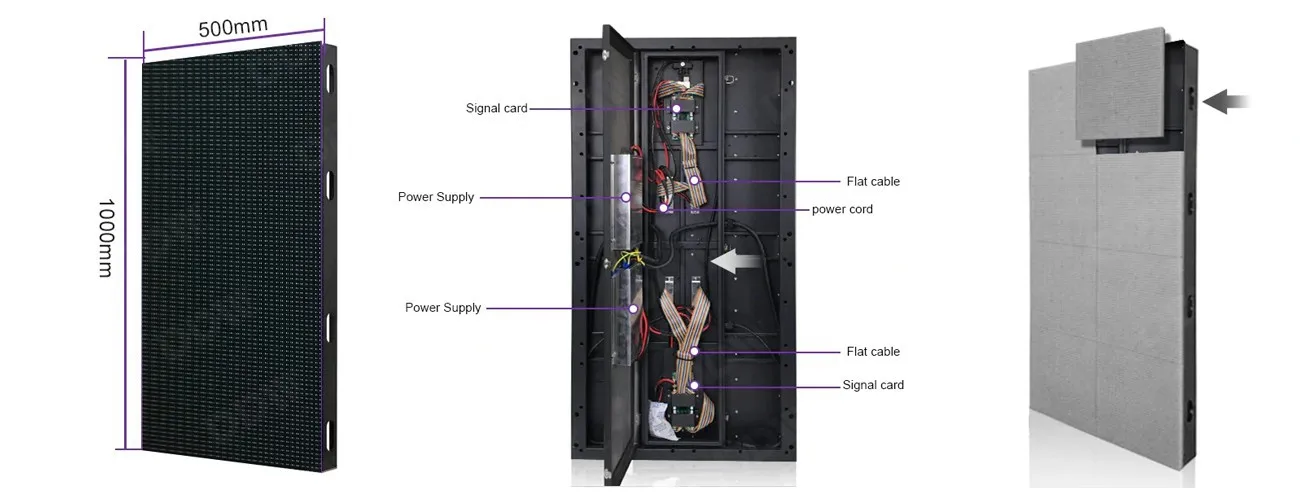

Excellent cabinet design

High-protection cabinet design, IP66 dustproof and waterproof, openable back cover, easy to maintain power supply and receiving card.

IF Series Interactive Floor LED screen

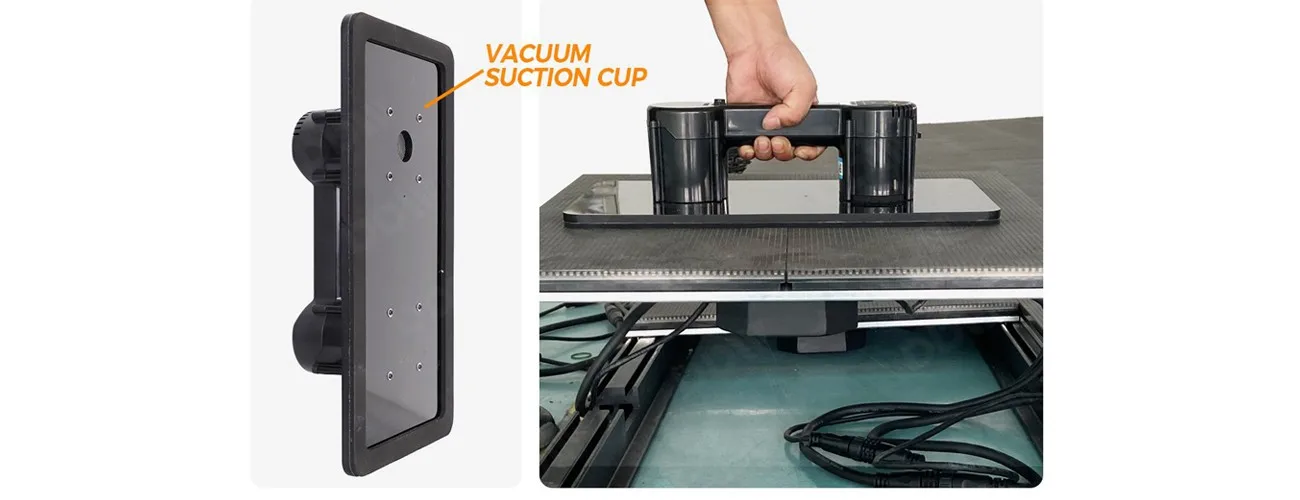

Front Service

With magnetic design,supports front service, save your time and energy to finish the maintenance

IF Series Interactive Floor LED screen

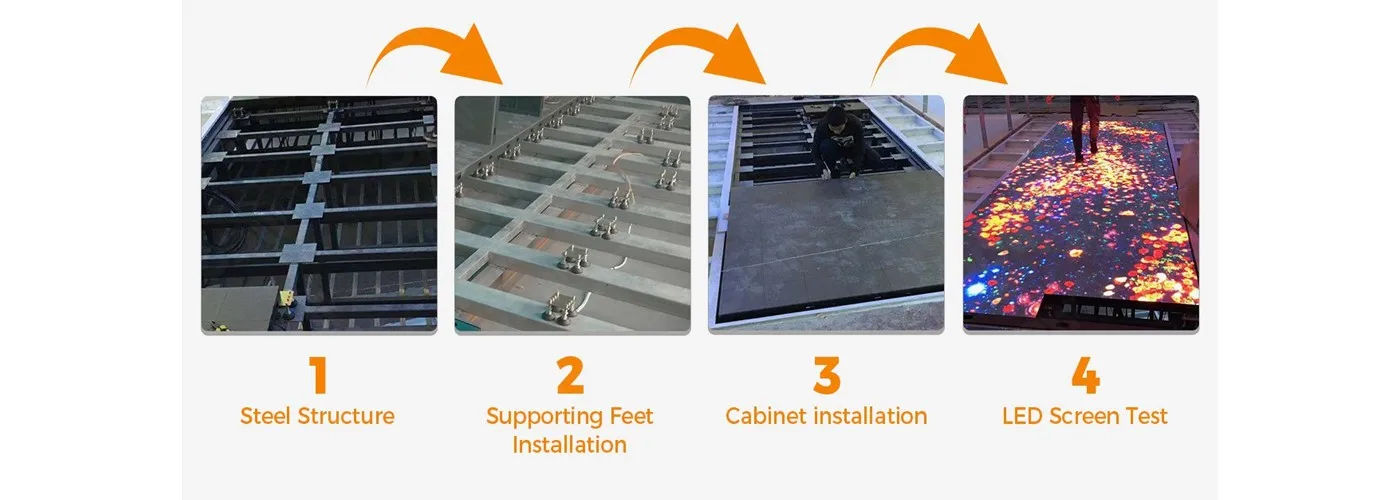

Installation

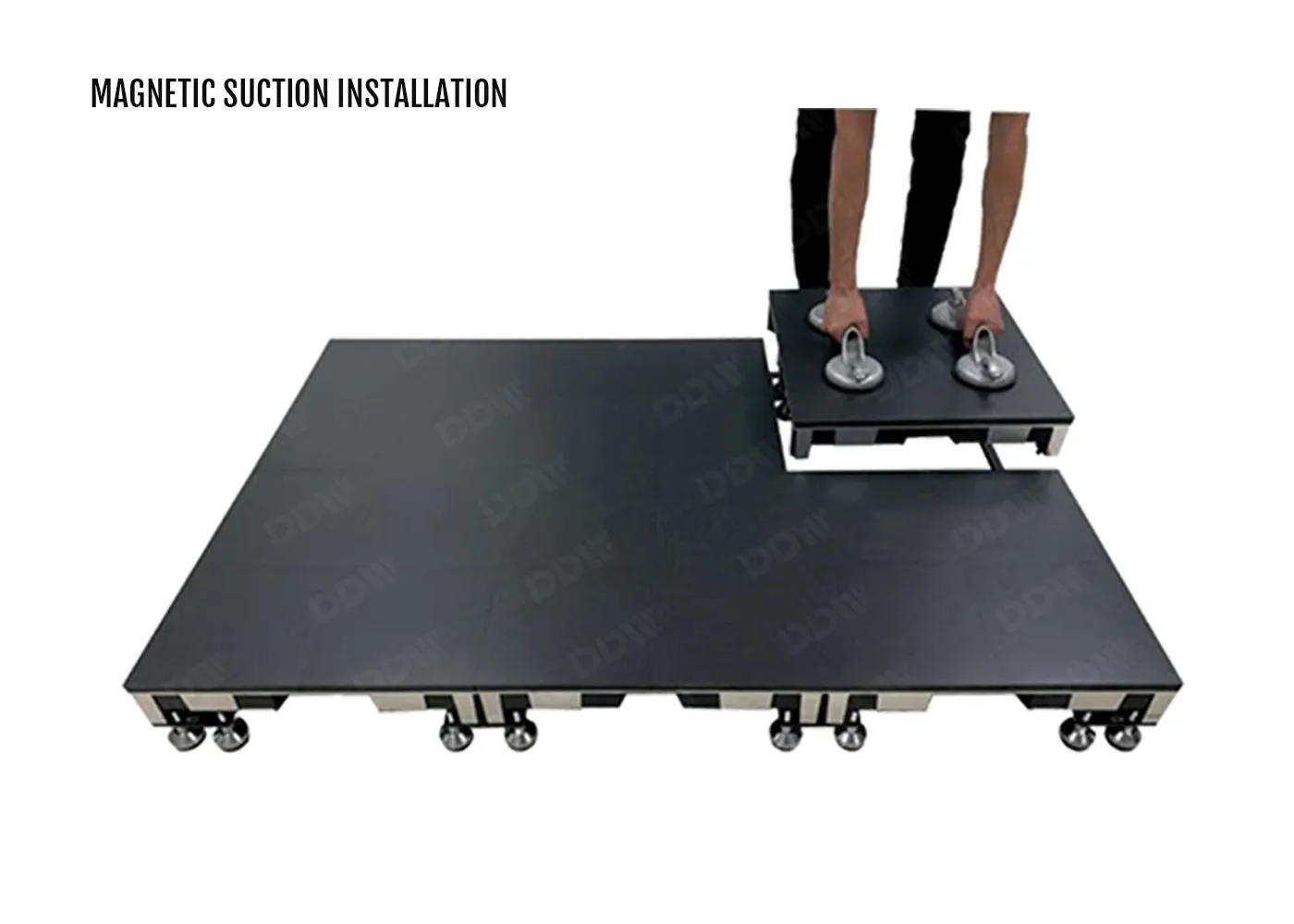

Easy Installation



IF Series Interactive Floor LED screen

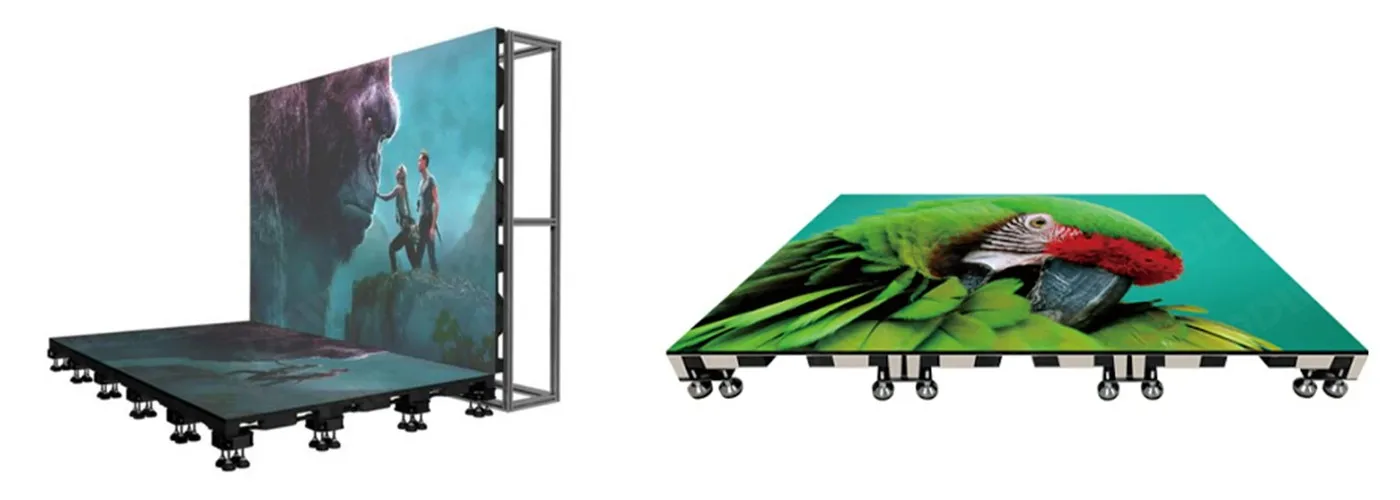

Various installation mode
IF Series Interactive Floor LED screen

Specifications

Model P2.976 P3.91 P4.81 P6.25
Module size(mm) 250×250
Module resolution (dot) 84×84 84×84 52×52 32z32
Scanning 1/28S 1/28S 1/13S 1/4S
SMD 1G1R1B
Maintenance Front/Back
Installation Foot margin
Cabinet size(mm) 500×500/500×1000
Density(dot/㎡) 112896 112896 43264 25600
Brightness(cd/㎡) 1800/4000 1800/4000 1800/4000 1800/4000
Max. Power Consumption 800 800 800 600
Average Power Consumption 400 400 400 300
Cabinet weight (kg) 25kg 25kg 25kg 25kg
Cabinet material Iron/ Die-casting  aluminum
IP rate IP68
Grayscale 10000:1
Refresh rate(hz) 1920-3840
Frame change frequency 50/60hz
Horizontal viewing angle >120°
Vertical viewing angle >120°
Best viewing distance >3m >3m >5m >6m
Input Voltage AC110V – AC220V
Module Max. current 5.0-7.0
5.0-7.0
5.5-7.0
5.5-7.0
Temperature-operating ﹣10℃~60℃
Humidity-operating 10%~90%
Life span (H) ≥100,000
MTBF (H) >10,000

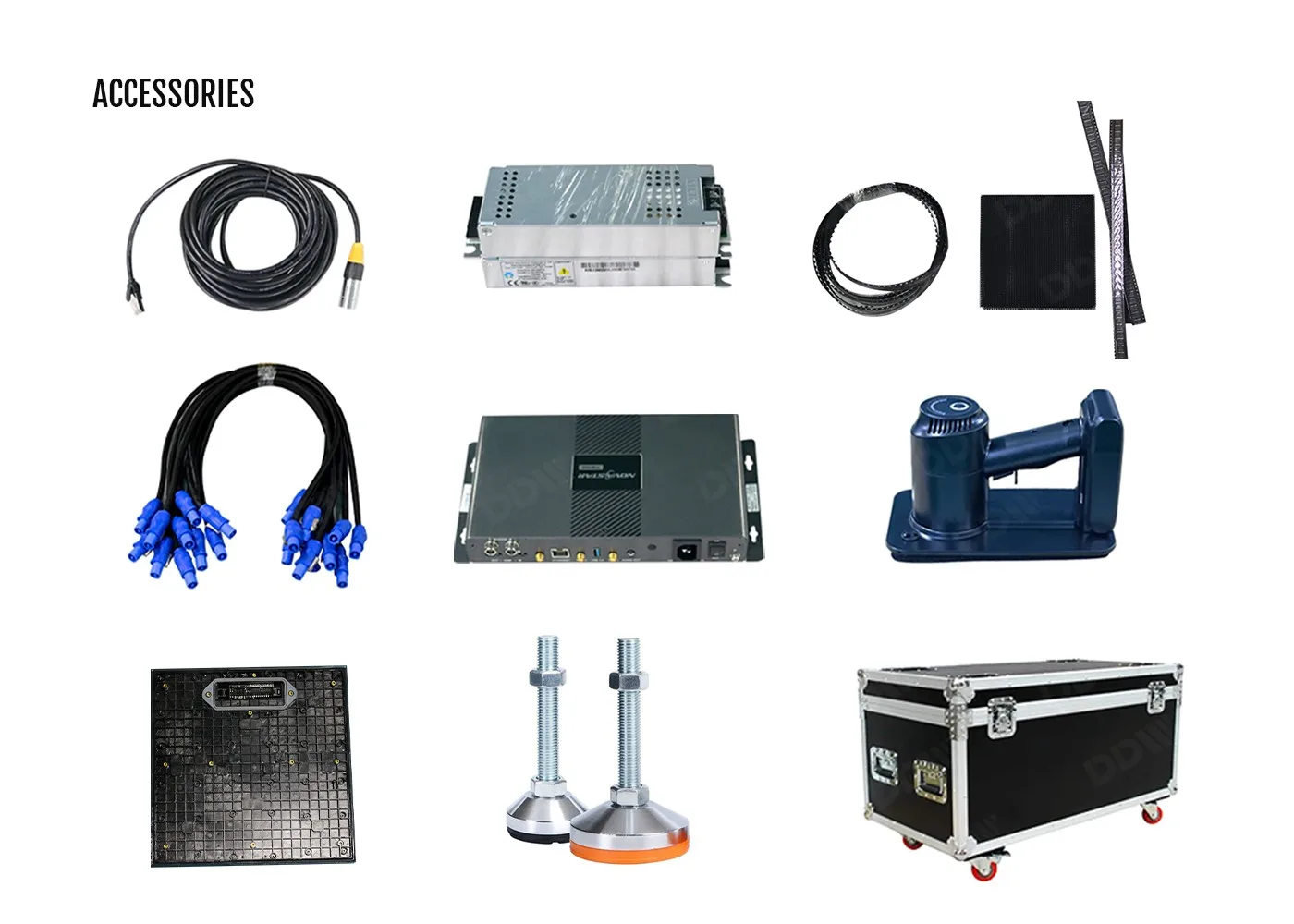

Accessories

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Video Processor
Video Processor
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet
Wooden case packing
Wooden case packing
