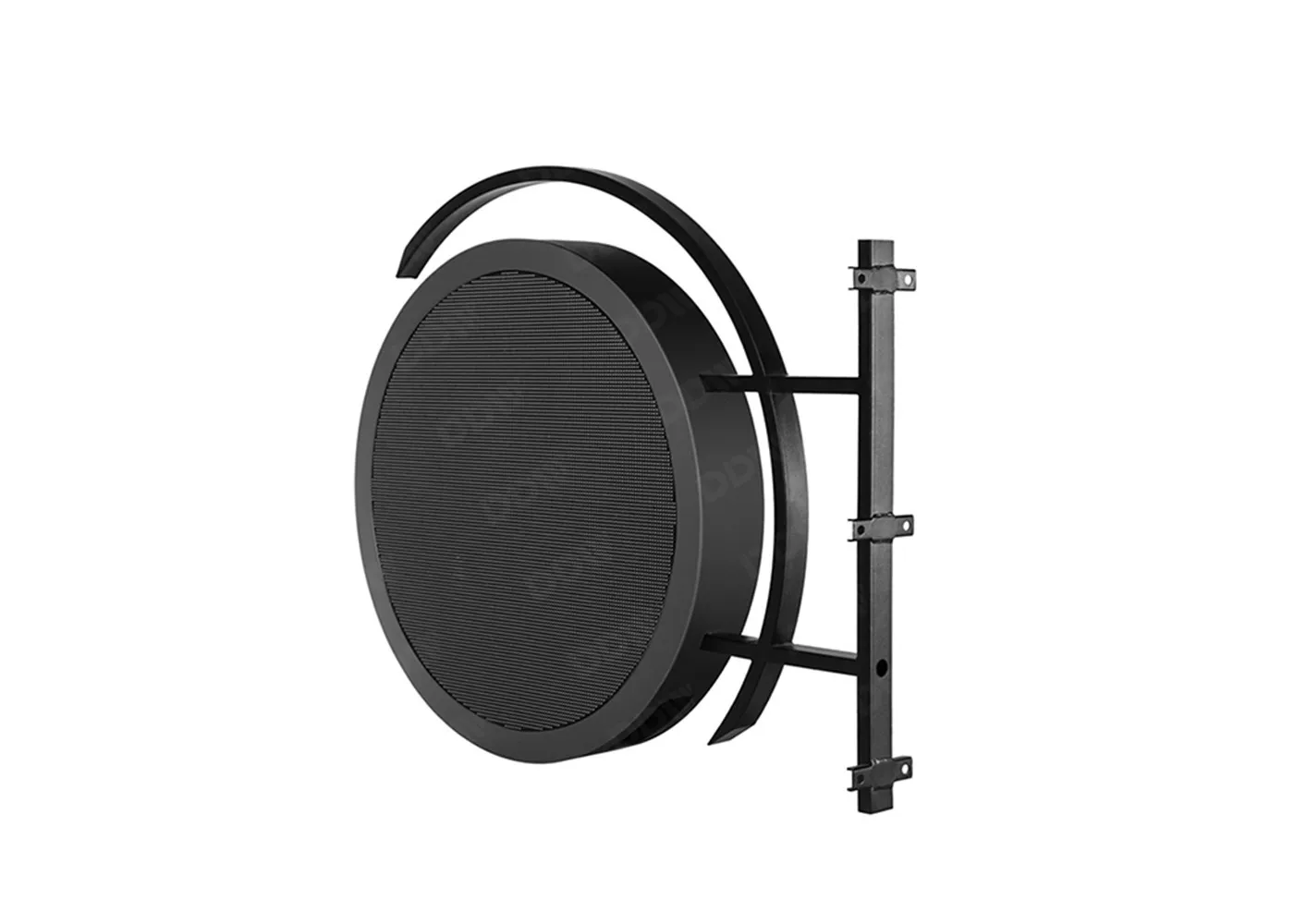

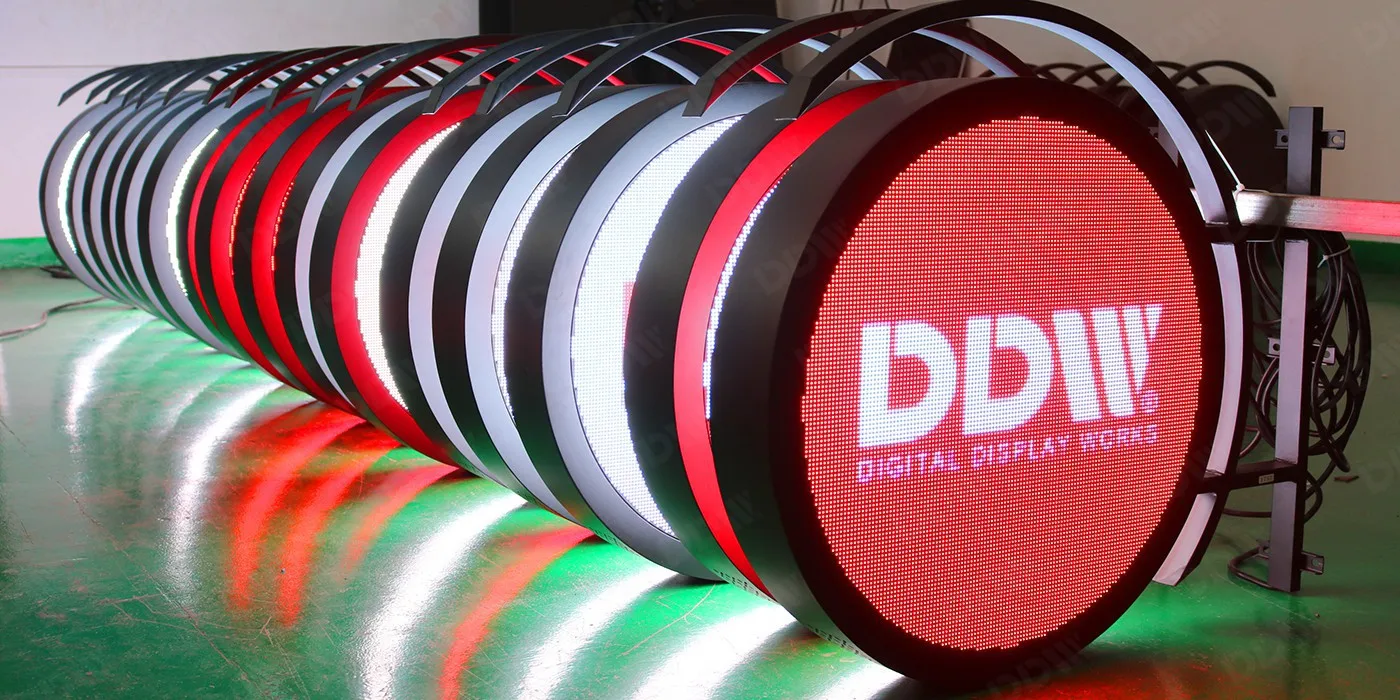

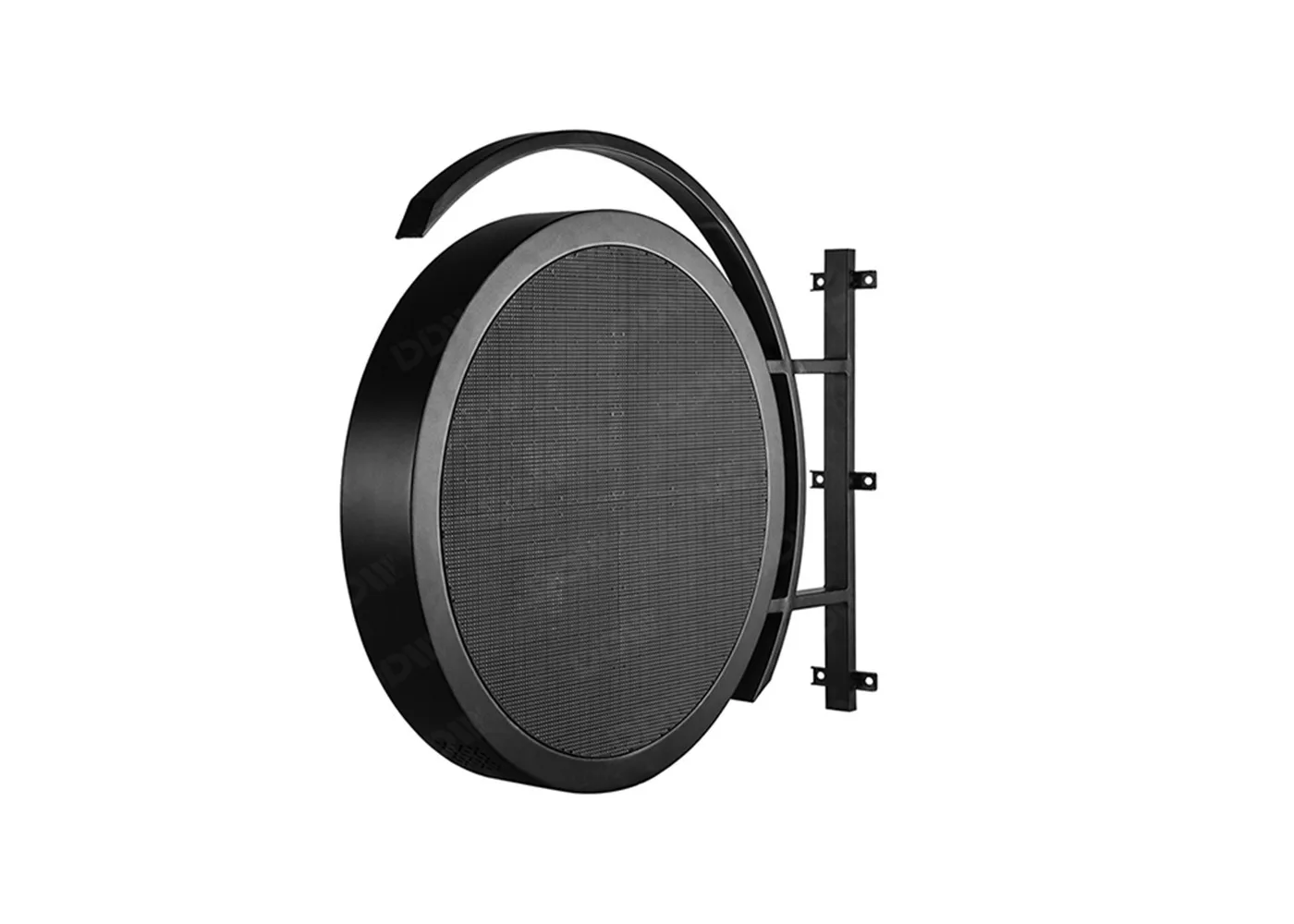

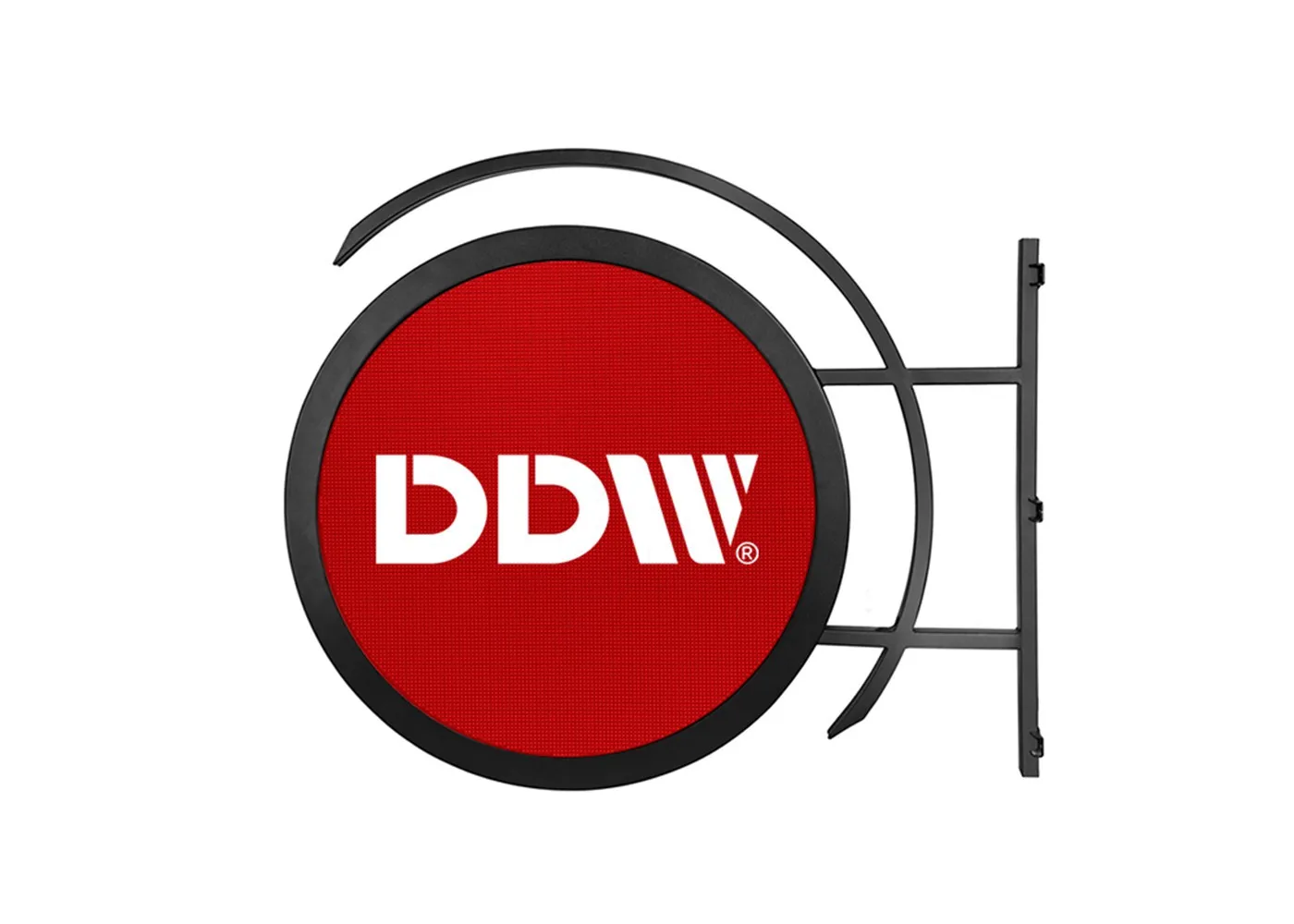

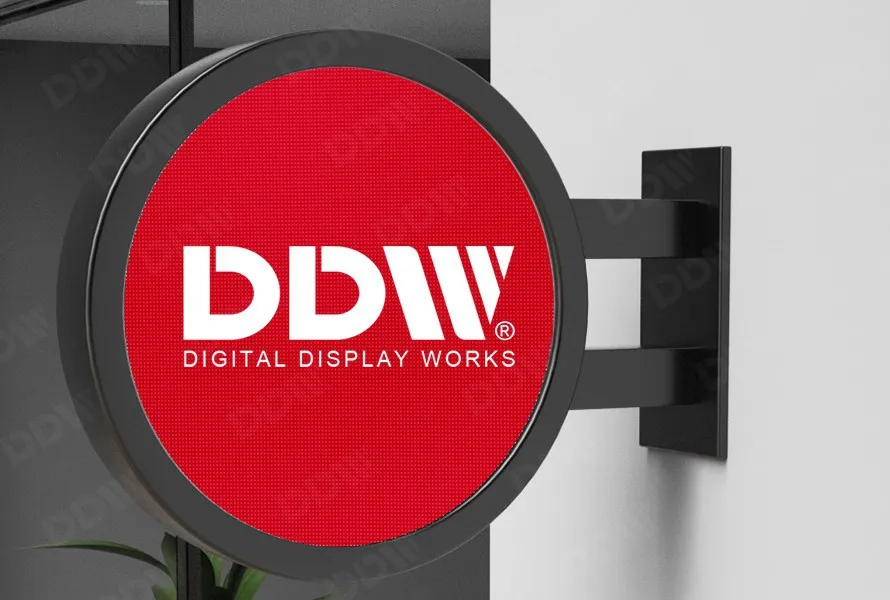

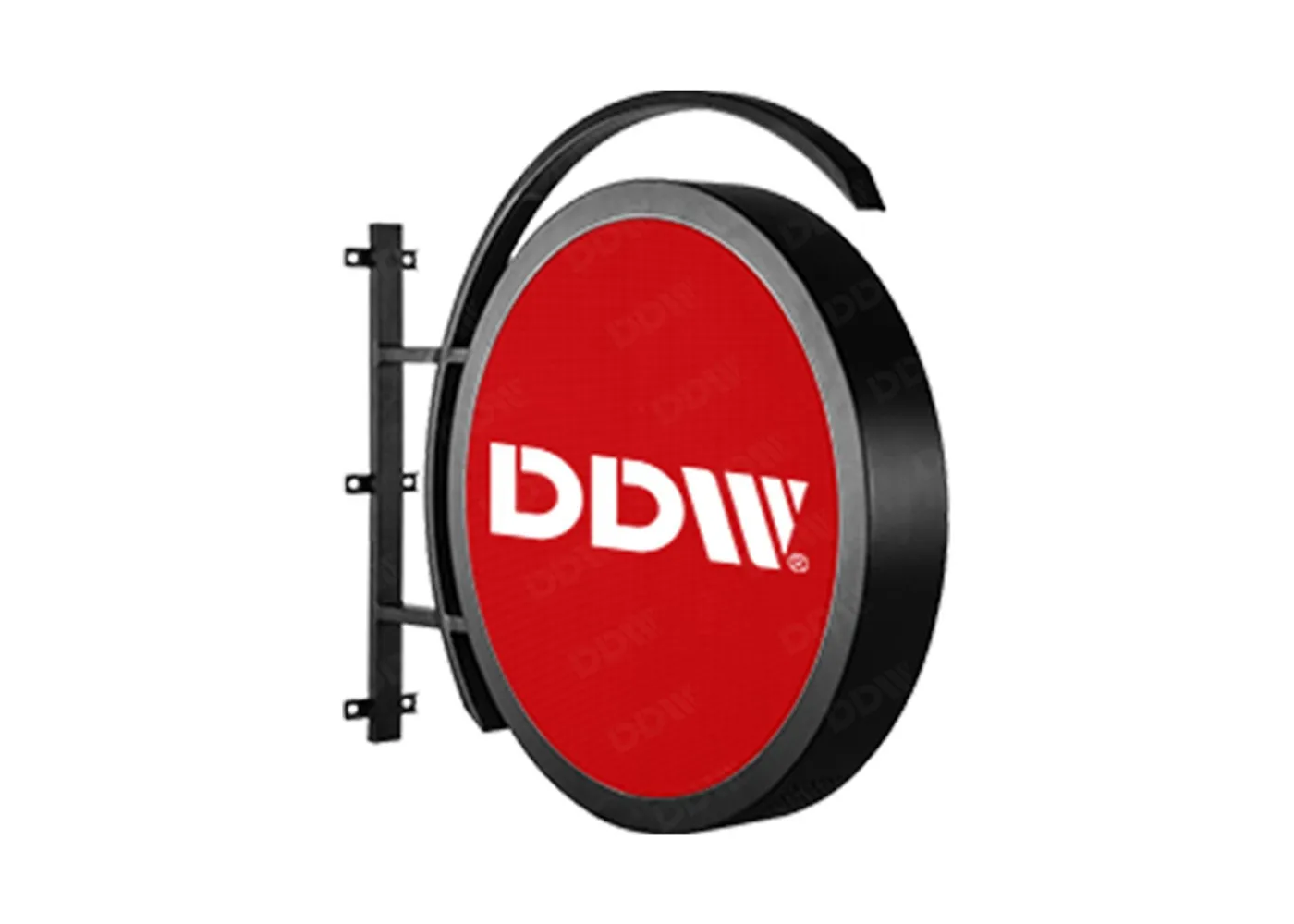

Indoor and outdoor single side or double sided led circle screen for shop logo advertising use
3840 Hz
Wide Viewing Angles
Double Sided
IP65 Waterproof
4500 cd/m²
Front Maintenance
Die Cast Aluminum
Low Power Consumption

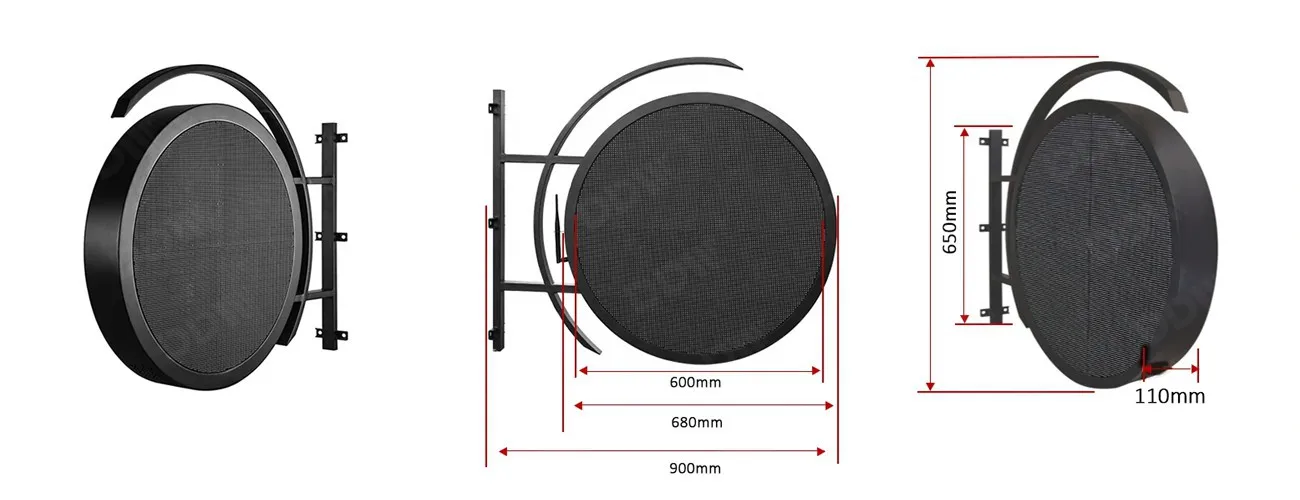

Different sizes can be customized according to requirements.

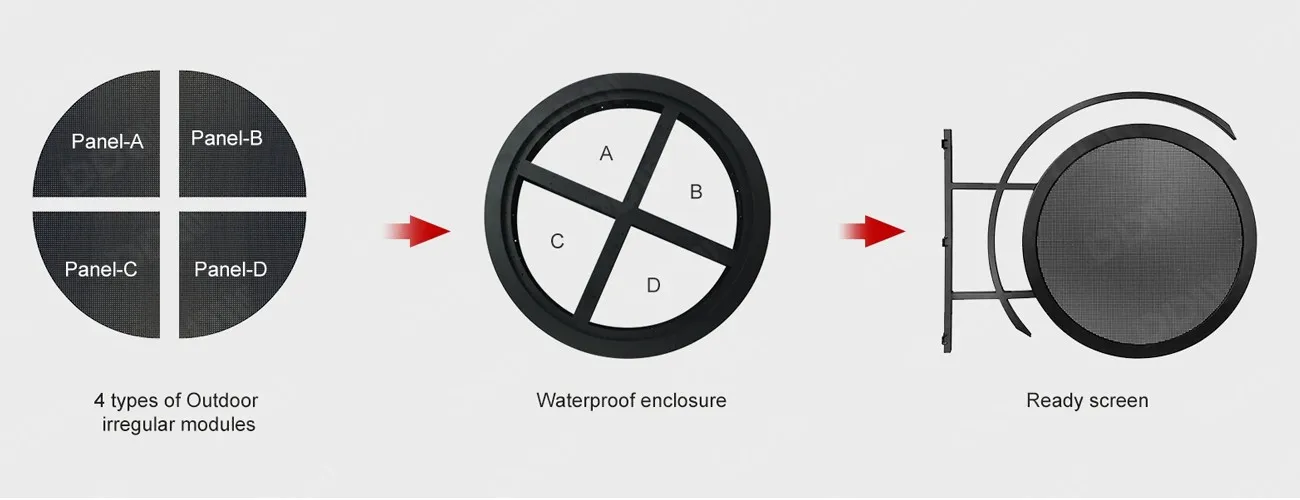

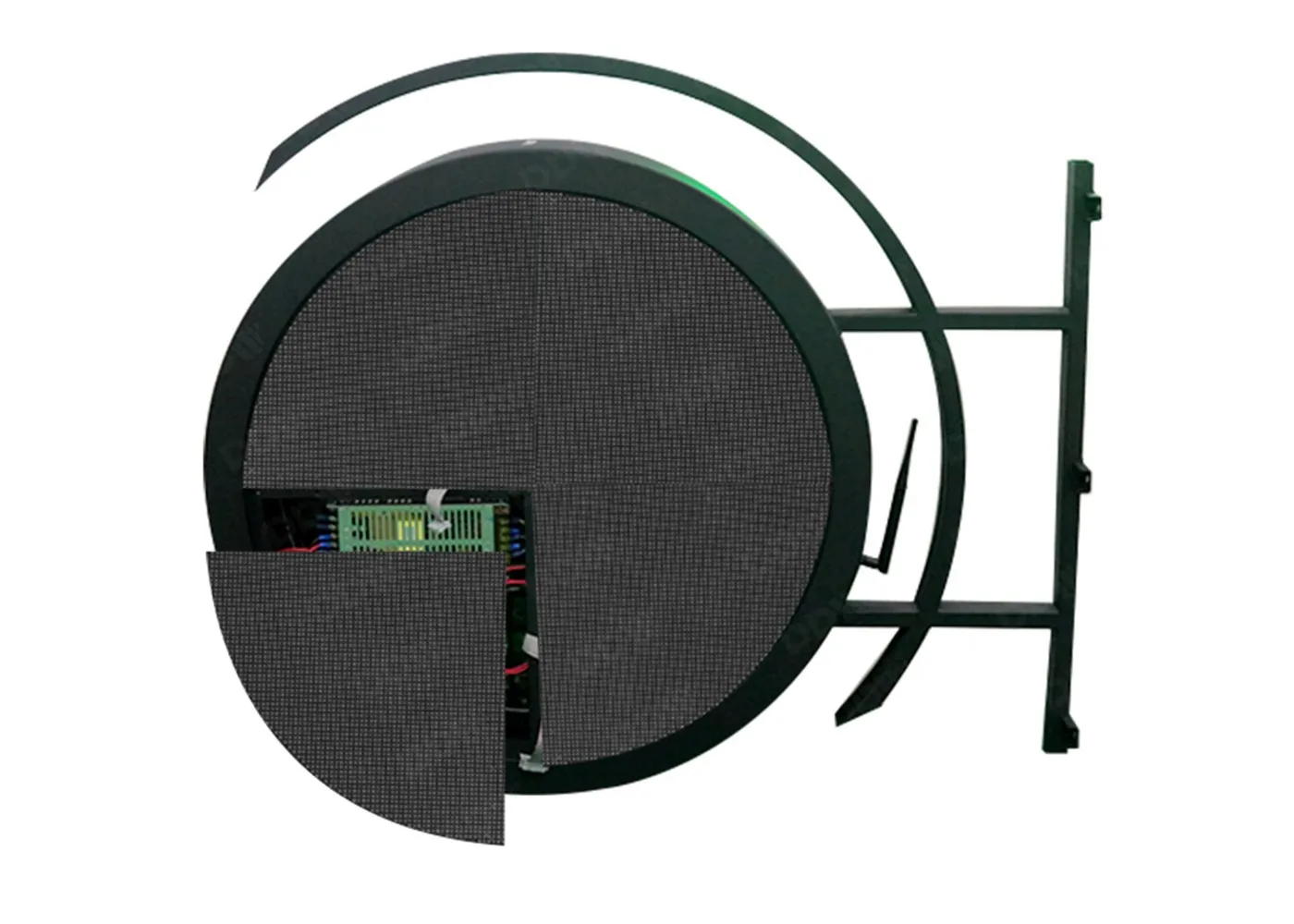

The cabinet adopt cable-less design which can be maintenence in seconds, magnetic modules with front and rear maintenance

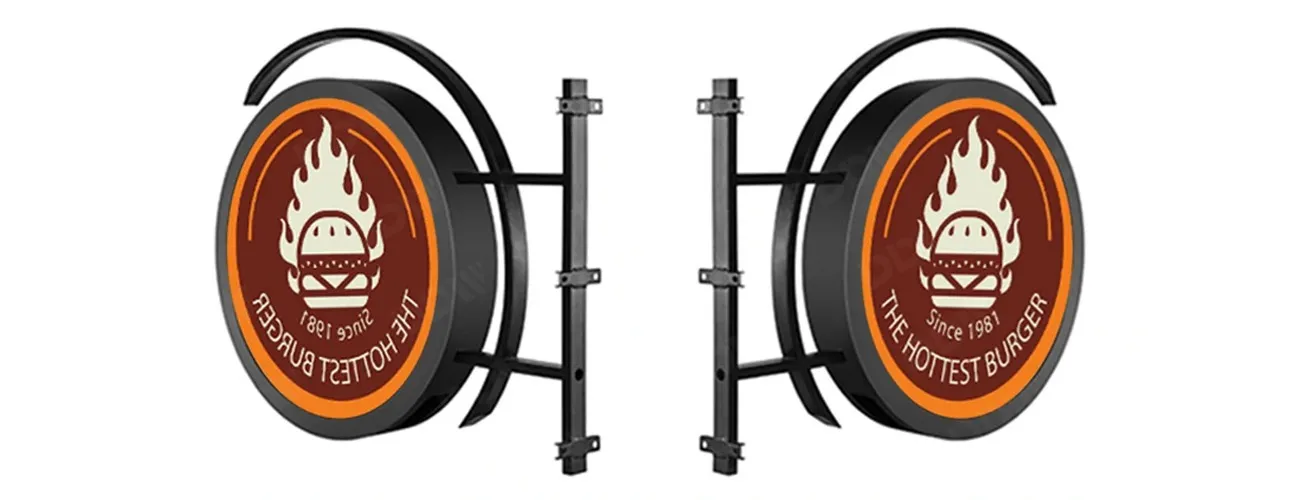

Double-sided and multi-directional playback pictures can be customized according to different needs
| Pitch Pixel | 4.68mm |
| Module Size | 300mm*300mm |
| Module Resolution | 64×64 |
| LED chip | San'an |
| LED packaging form | National Star packaging table paste three in one |
| Display density | 16384 points /pcs |
| Maximum white balance brightness | 4500cd/㎡ |
| Gray level | Red, green and blue ≥ 256 levels, up to 65536 levels |
| Display color | ≥ 16.7M, up to 281trillion |
| Runaway points | ≤ 1 / 10000 |
| Optimum sight distance | ≥ 7M |
| viewing angle | Horizontal: ≥ 120 ° vertical: ≥ 120 ° |
| Device drive | 1/8 scan (riyuecheng 2017td) |
| Brightness adjustment | 256 level software adjustment, 16 level automatic adjustment |
| Frame change frequency | ≥60HZ |
| refresh frequency | ≥1920HZ |
| control mode | Carlette asynchronous |
| Waterproof grade and material | IP65, module potting adhesive adopts Jinlian transparent original adhesive |
| Screen life | ≥ 100000 hours |
| Continuous working time | > 72 hours |
| Mean time between failures | > 1000 hours |
| working voltage | AC 220V±15%，50Hz±2 Hz |
| Ambient temperature and humidity | Temperature: -20 ℃ ~ +60 ℃, humidity: 10%-95% |
| Power consumption (max / average) | About 400W / set |
| planeness | Inter image adjacency ≤ 0.5mm; Module splicing gap ≤ 0.5mm |
| Maintenance mode | Pre maintenance |
| Screen weight | ≤ 16kg/ set |
| Uniformity | The pixel light intensity and module are uniform, and each pixel can be corrected at a single point |
Cylinder LED display is a new floor standing creative LED display consist of flexible LED modules. It can be made as floor standing type and can also be wrapped on the surface of the column. Widely used for airports, shopping malls, science exhibitions, concerts, theaters, television studios, creative exhibition halls,nightclubs,weddings and other multimedia fields.
Learn More>

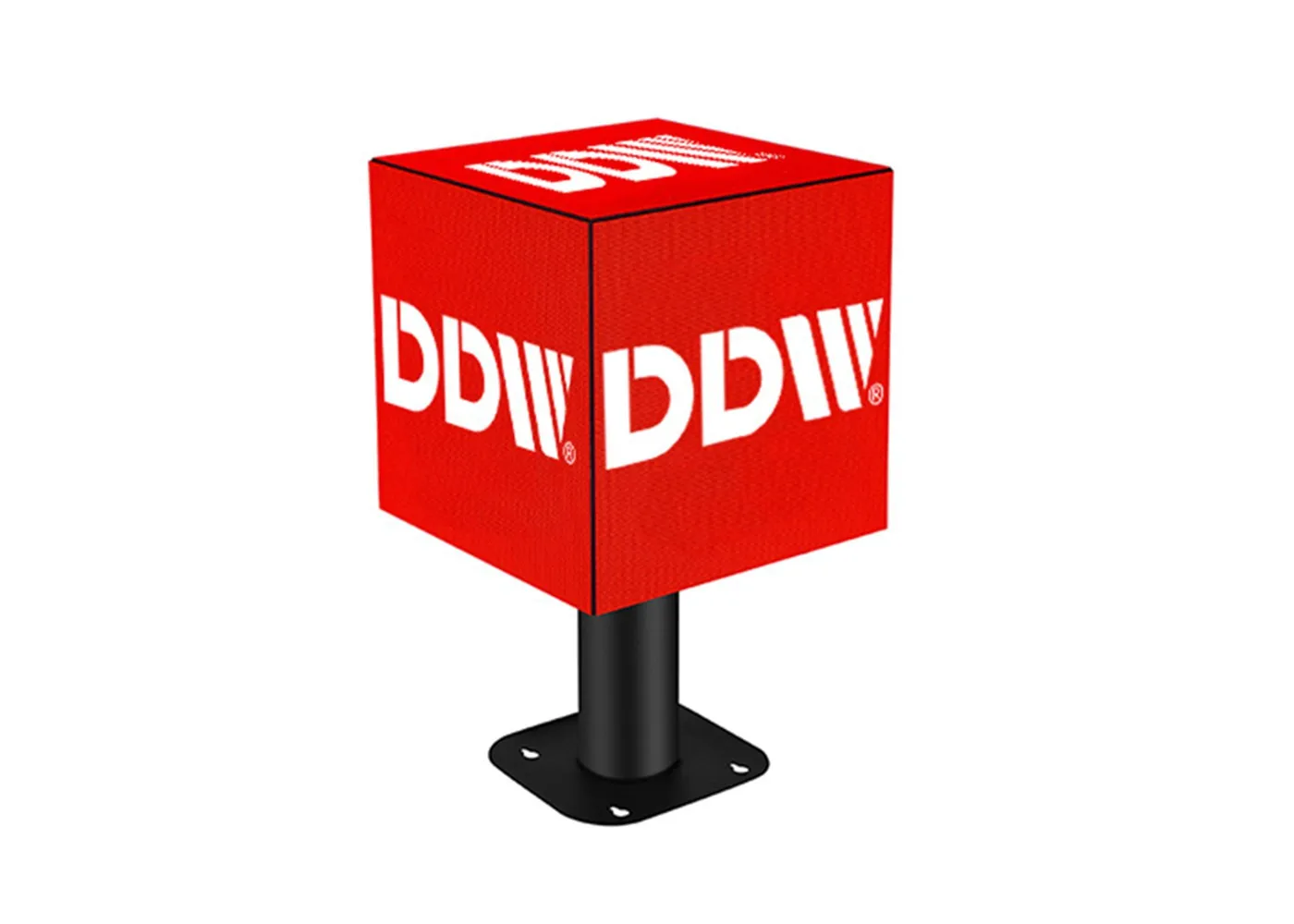

LED cube display is designed for HD visual effects that is applicable for museum, trade shows, special events that need creative decorations. It can be widely used for many different application areas. Regular size range from 200*200mm,400*400mm,600*600mm, 800*800mm, multiple size choice: 4 sides, 5 sides,6 sides. Large size can be also customized.
