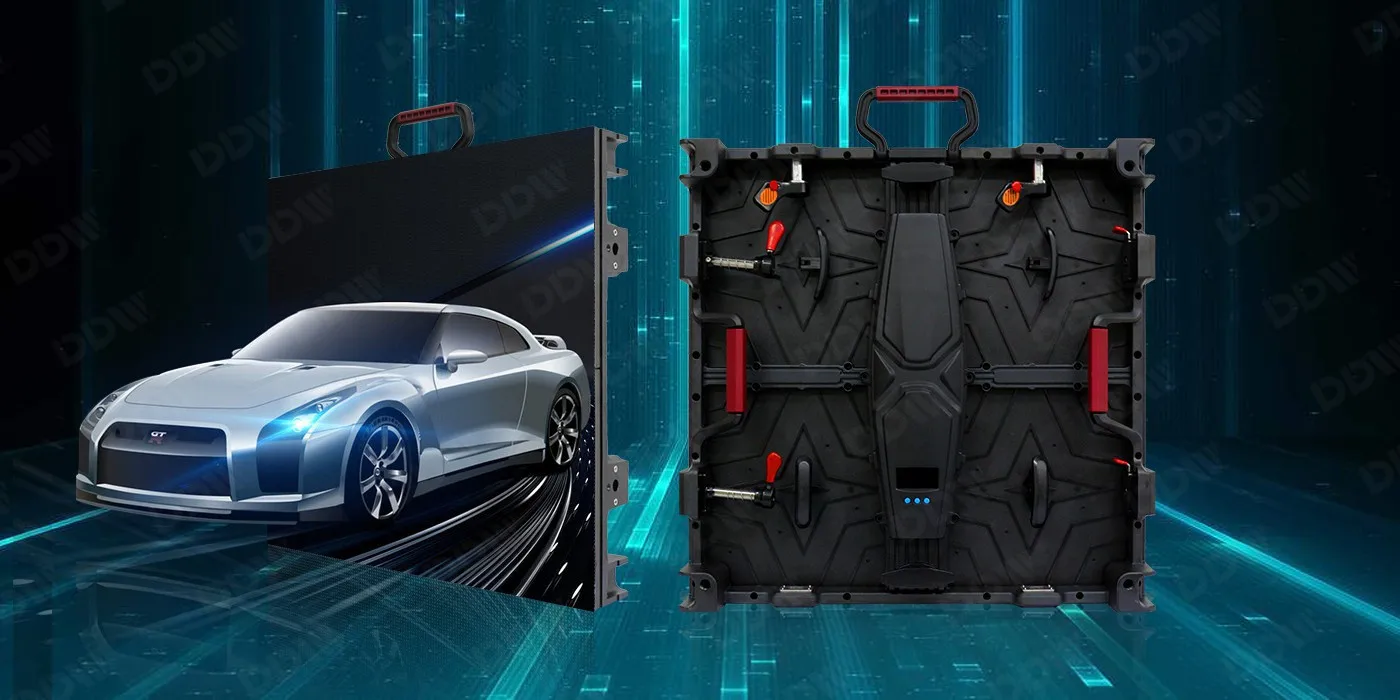

RD Series High end Rental LED Screen

P1.9 P2.5 P2.6 P2.9 P3.9 P4.8 P5.9 500x500 500x1000

Features

3840 Hz

Wide Viewing Angles

Outdoor IP65 Waterproof

High Flexibility

Module magnetic attraction

Front Rear Maintenance

Die Cast Aluminum

7.5/12.5kg

Advantages

RD Series Quality Rental LED Screen
Feature Description
  • - 16Bit grey processing technology
  • - The weight is only 7.5kg, saving transportation and labour cost .
  • - Front/ rear access, Suitable for various installation environments.
  • - Modular design, plug and play, support hot-swapping.
  • - The LCD display on the integrated power box of the cabinet shows the operating and signal situation

Video

RD Series High end Rental LED Screen

Parameters

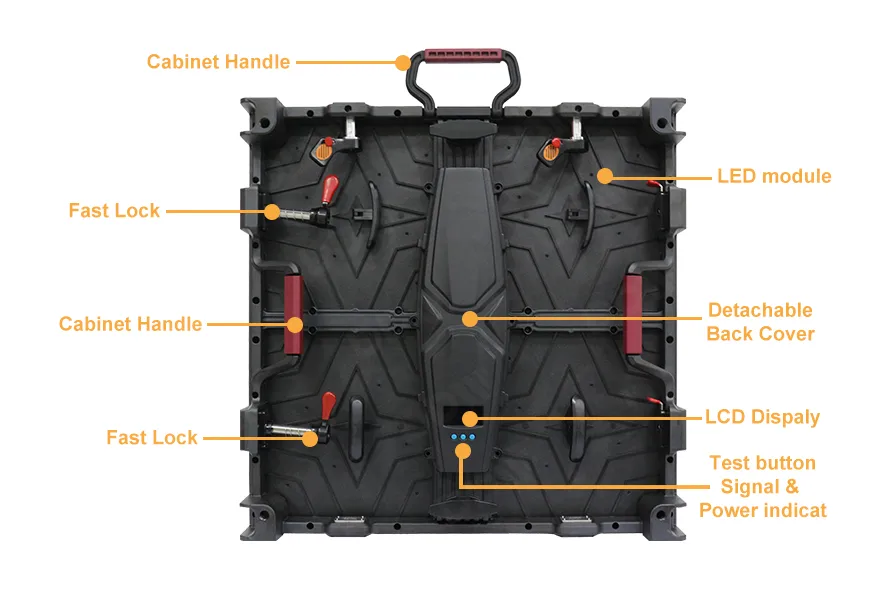

Cabinet Specs

First class design for die casting cabinet frame, each cabinet (include all components) is only 7.5 kg , four sets strong fast lock to make assembling to be easier.

RD Series High end Rental LED Screen

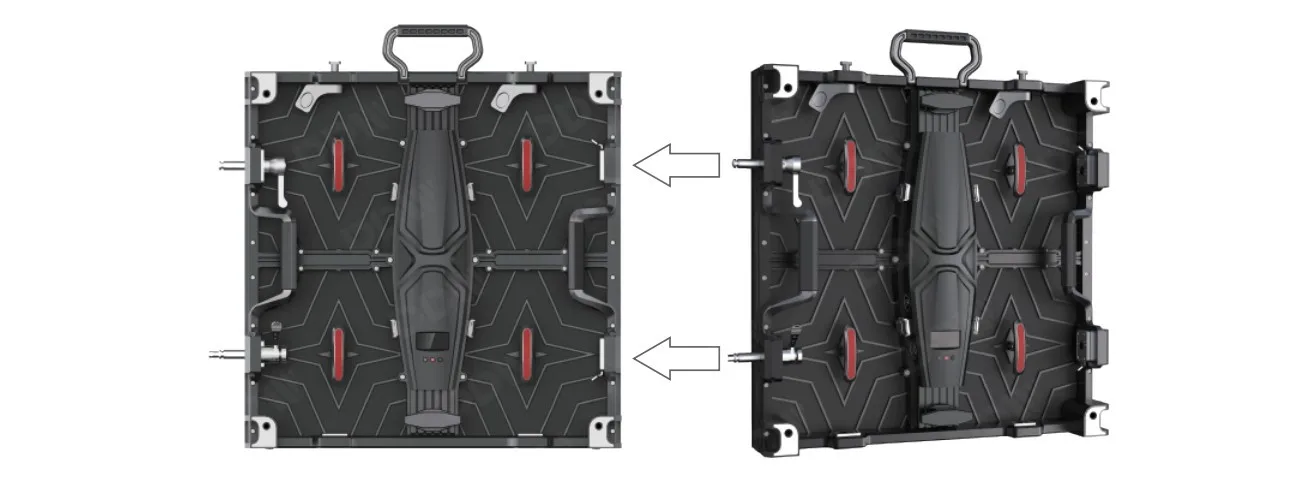

Quick | One man installation

Auto-locking system for fast and easy 1 man installation with ultimate safty and pixel protection.

RD Series High end Rental LED Screen

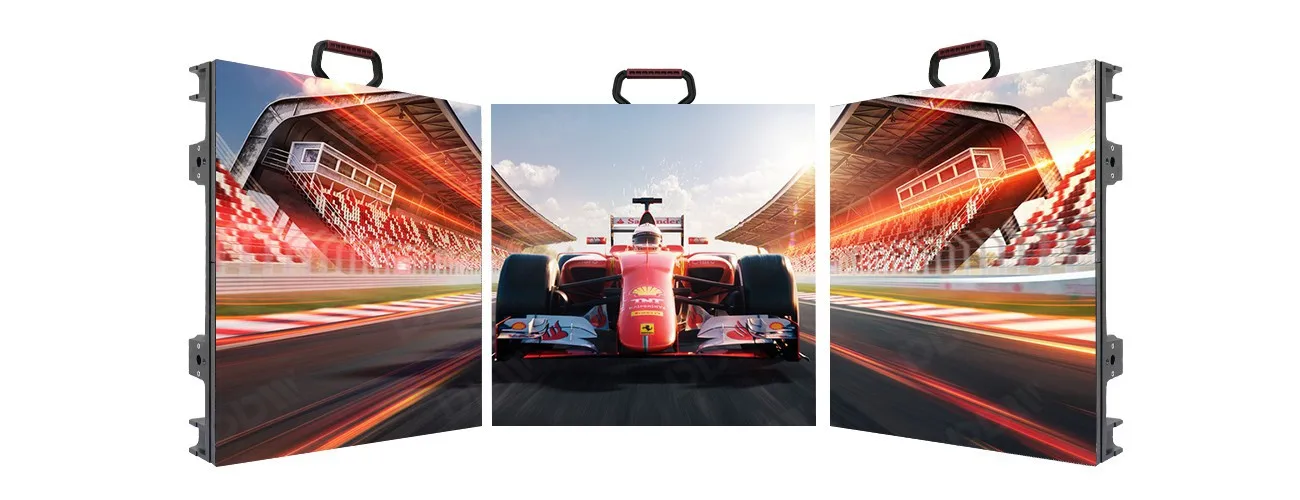

Wide Viewing Angle

Viewng angle is up io 160° vrtical and hizona poiding aewdewewing ange Utat wide vewin angle give you the largest screen viewing area.

RD Series High end Rental LED Screen

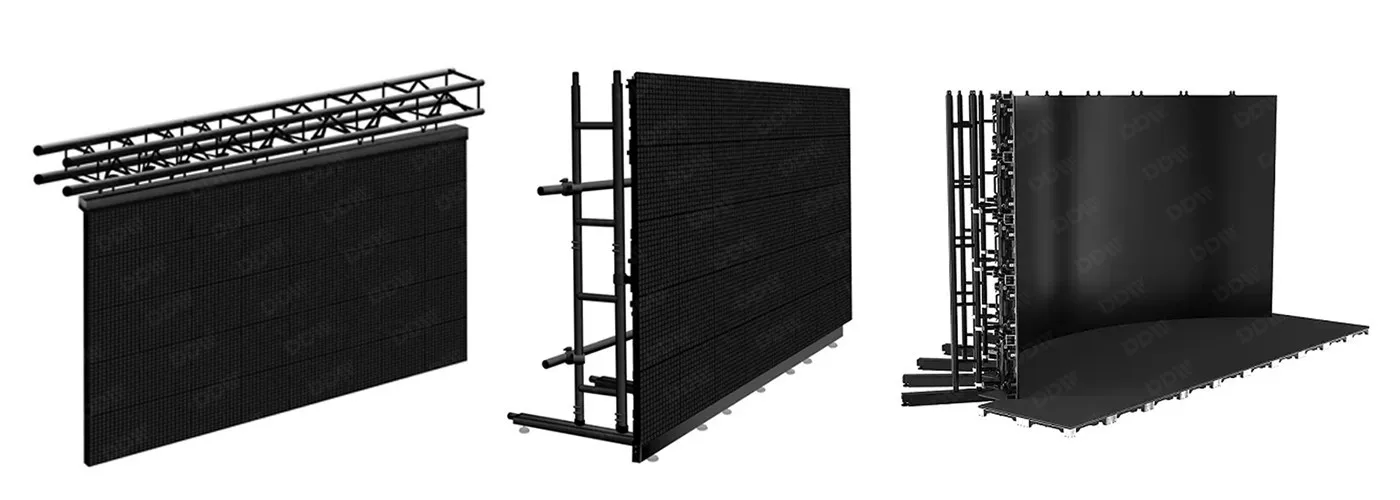

Installation

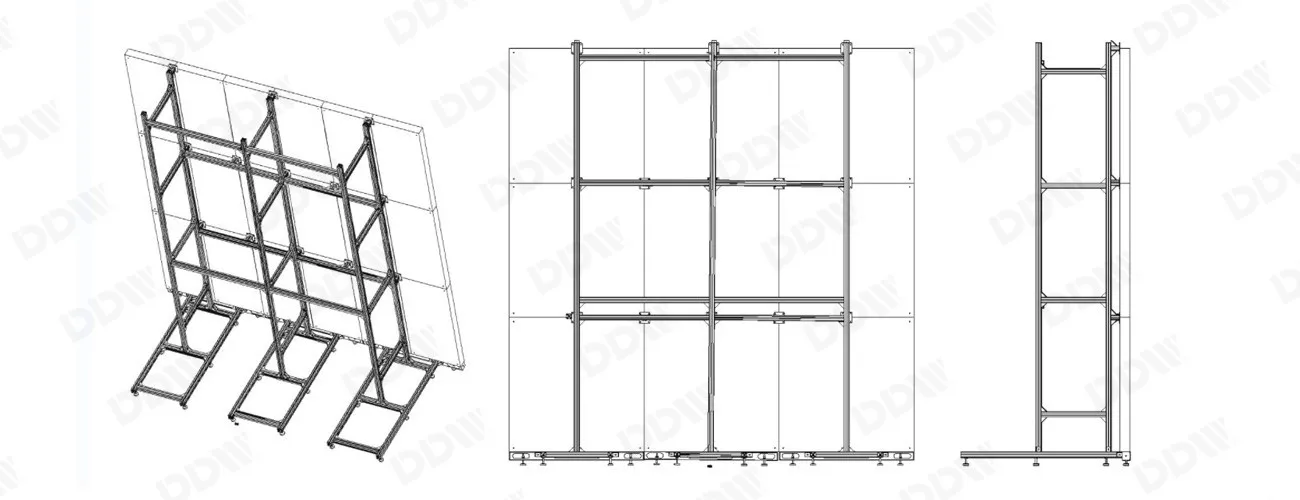

Aluminum profile support
RA Series Economic Rental LED Screen

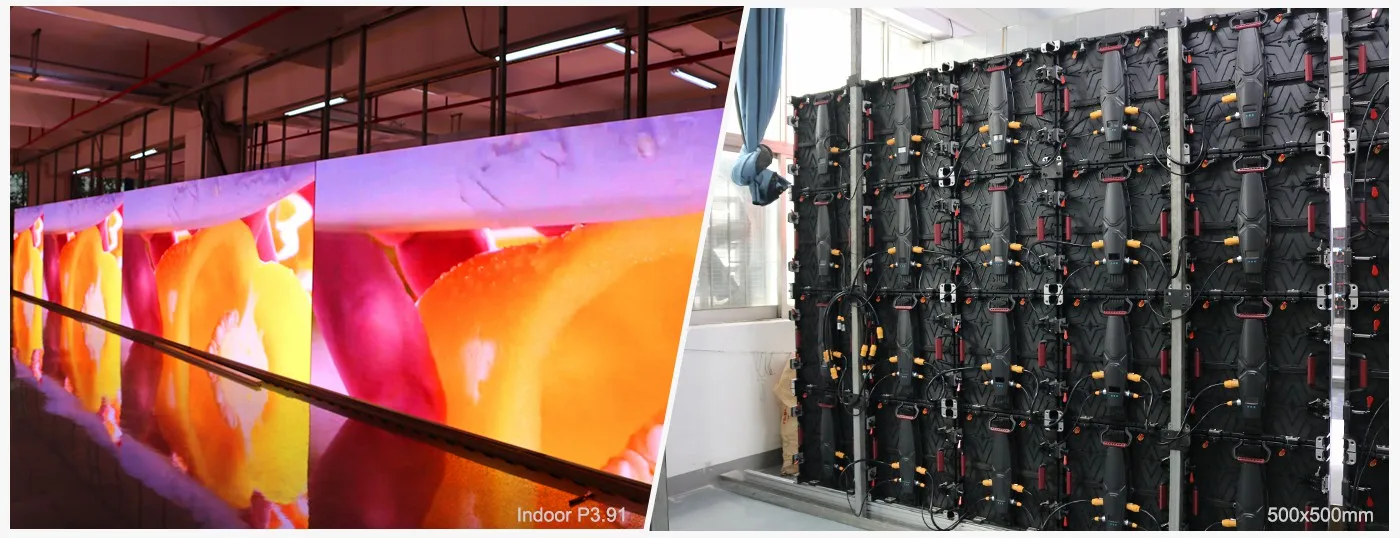

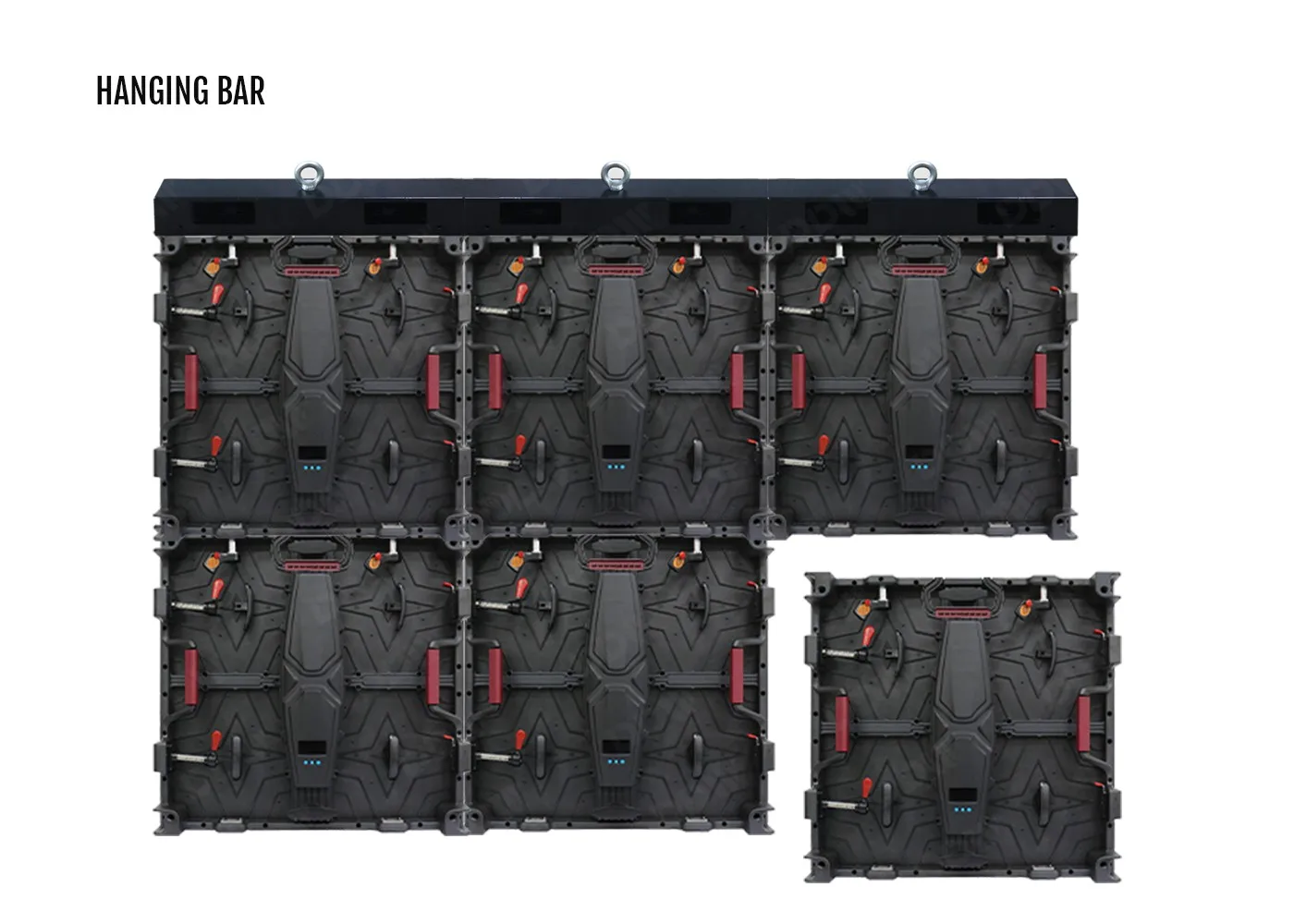

Various installation mode
RA Series Economic Rental LED Screen

Specifications

  P1.95 P2.5 P2.604 P2.98 P3.91 P4.81 P5.95
LED Type SMD1515 SMD1515 SMD1415 SMD1415 SMD1921 SMD1921 SMD2727
Physical Density (Dot/sqm) 262144 160000 147456 112896 65536 43264 28224
Module Resolution 128x128 100x100 96x96 84x84 64x64 52x52 42x42
Module Size (WXH) 250x250

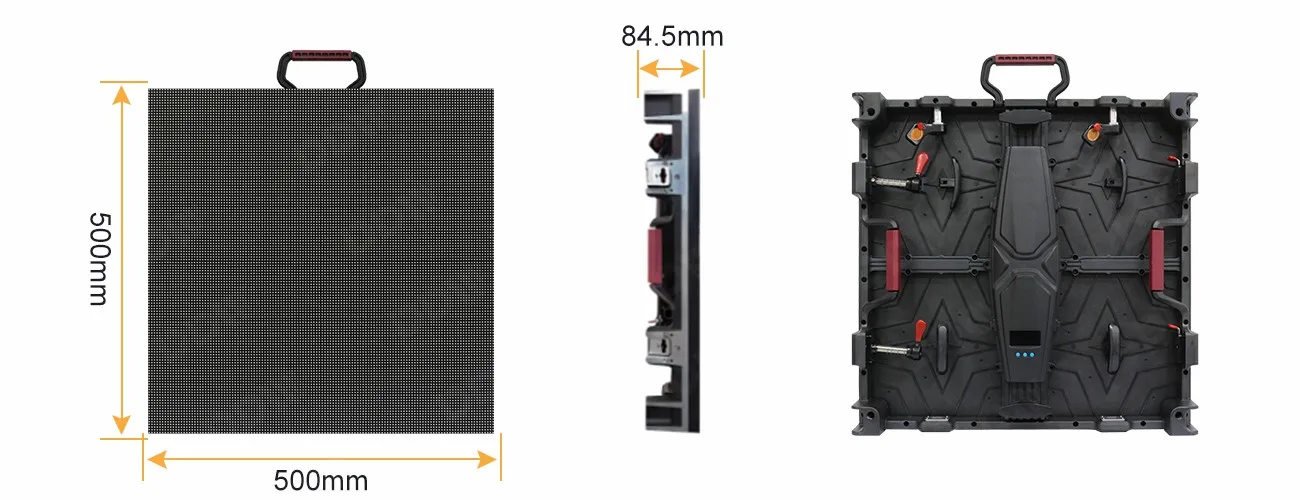

Panel Dimension (WXHXD ) 500x500(1000)x84.5
Panel Resolution (Dot/sqm) 256x256/ 256x512 200x200/200x400 192x192 168x168/168x336 128x128/128x256 104x104/104x208 84x84/84x168
Module Qty per Cabinet 2x2/2x4 2x2/2x4 2x2 2x2/2x4 2x2/2x4 2x2/2x4 2x2/2x4
Panel Weight (kg/Panel) 7.5/ 12.5 7.5/ 12.5 8.5 8.5/13.5 8.5/13.5 8.5/13.5 8.5/13.5
Grey Level ≥16bit
Maintenance Mode Front/ rear Maintenance
Cabinet Frame Die-casting Aluminum
Brightness (CD/m2) ≥1000 ≥1000 ≥4500 ≥4500 ≥5000 ≥5000 ≥5000
Color Temperature (K) 3200-9300 Optional 3200-9300 Optional 1000-18500 Optional 1000-18500 Optional 1000-18500 Optional 1000-18500 Optional 1000-18500 Optional
Viewing Angle (HN) 160*/160°
The Optimal Viewing Distance 2-50M 2.5-50M 3-50m 3-100m 4-150m 4-150m 6-200m
Display Color 68.7 billion 68.7 bilion 687 billion 687 billion 687 billion 687 billion 687 billion
Contrast Ratio 5000:1
Frame Frequency (Hz) 50/60
Drving Mode 1/32 Scan 1/25 Sca 1/32scan 1/28scan 1/16scan 1/16scan 1/16scan
Protection Degree IP31 IP31 IP65 IP65  IP65  IP65  IP65
Maximum Power Consumption 800w/m²
Average Power Consumption 200-300w/m²

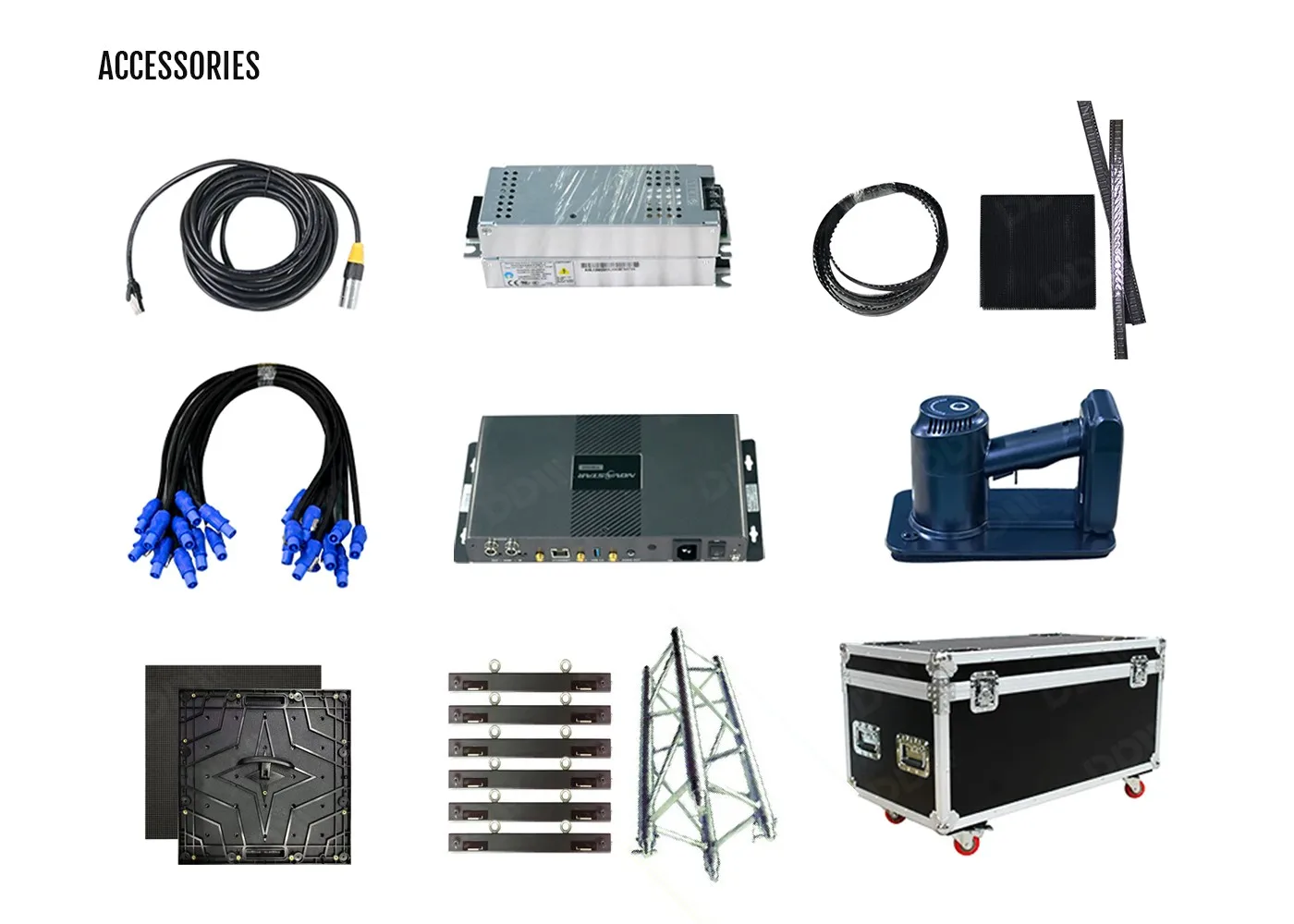

Accessories

Sending box

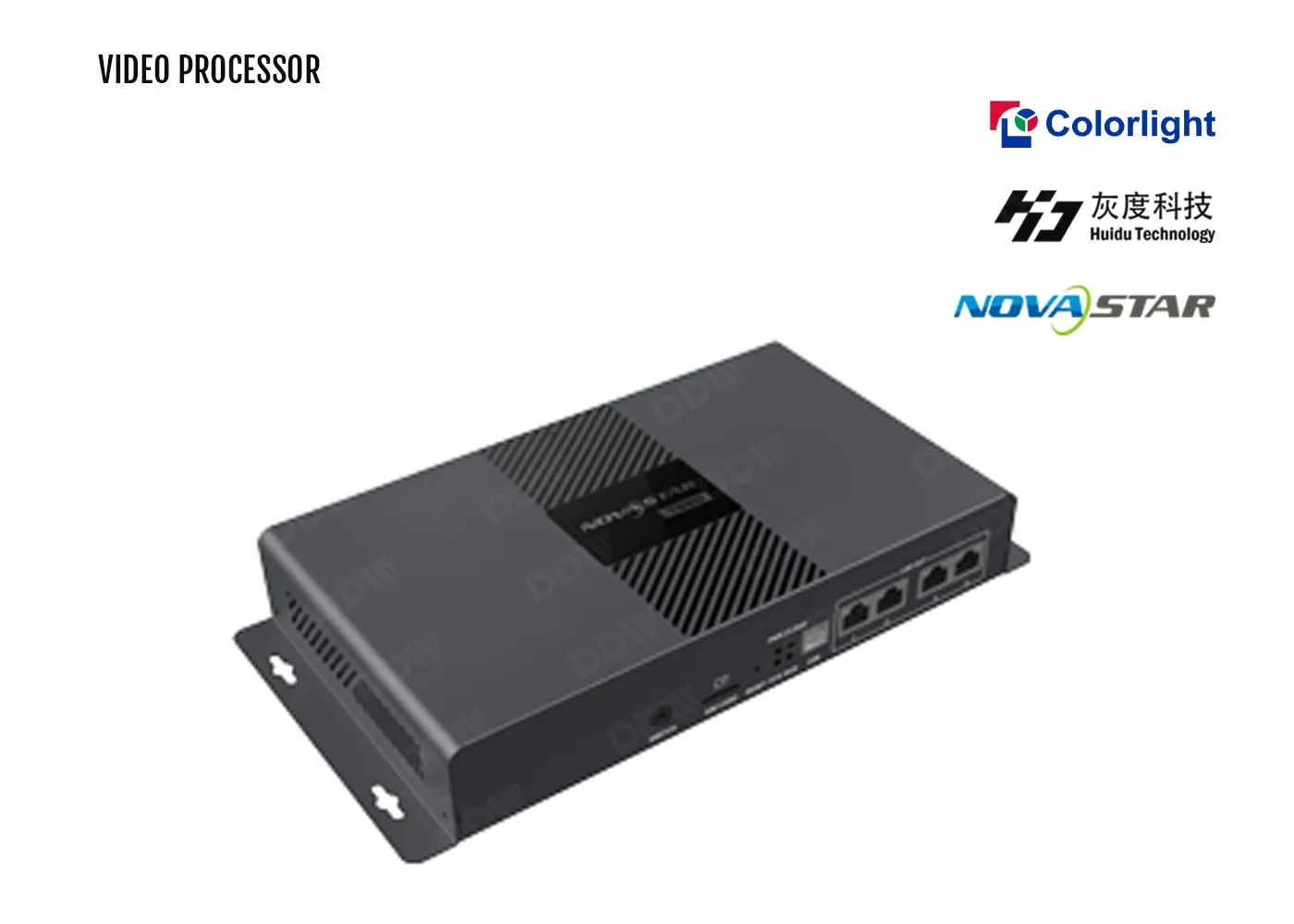

Video Processor
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet

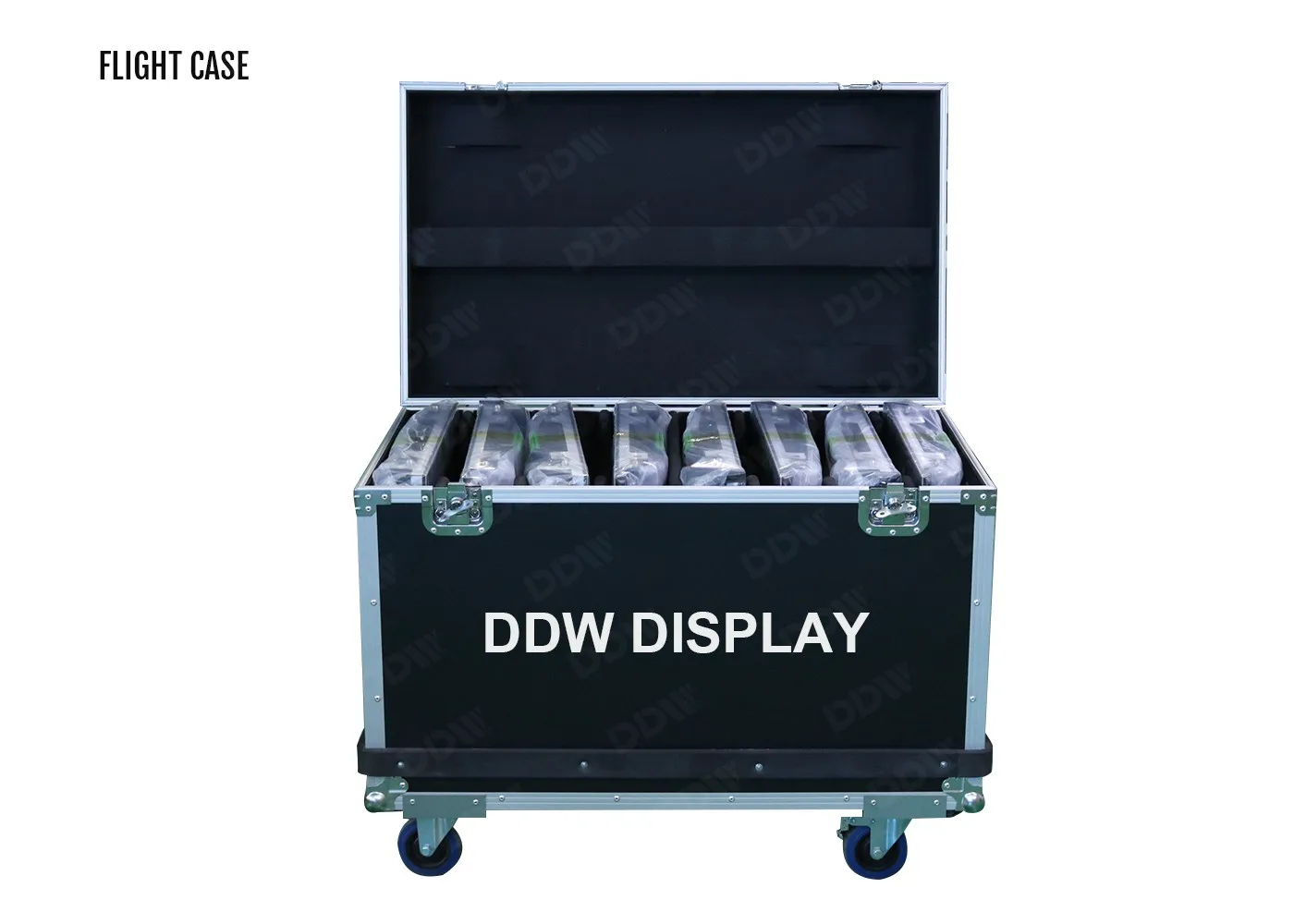

Flight case
Flight case
