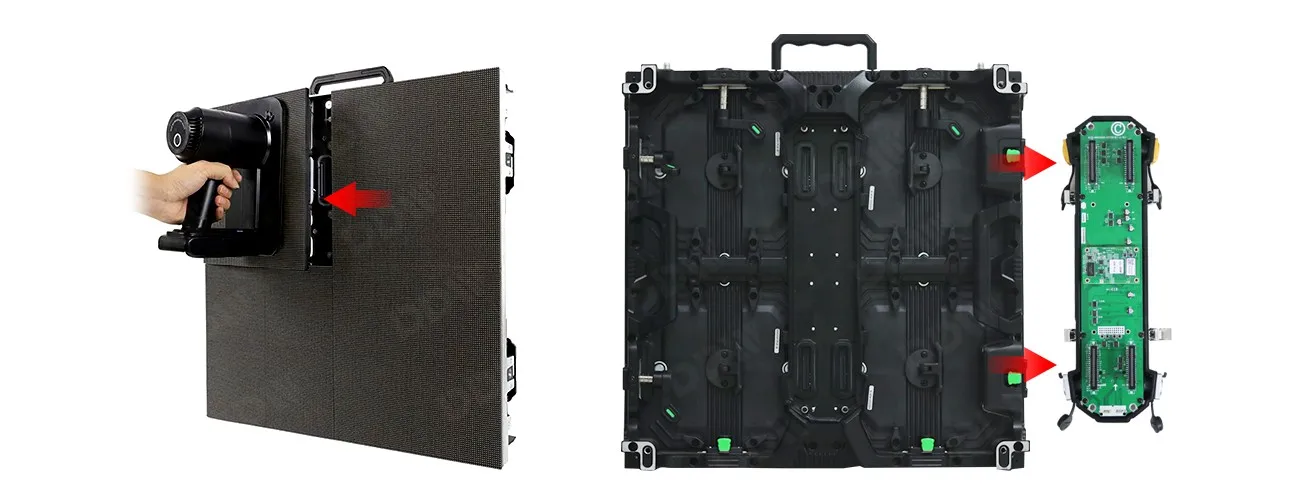

Outdoor Indoor 500 x500mm Rental LED Display front and rear double service removing the power box from the front of the Cabinet
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Scalability
High Strength Structure
Front/Rear Maintenance
Die Cast Aluminum
8kg

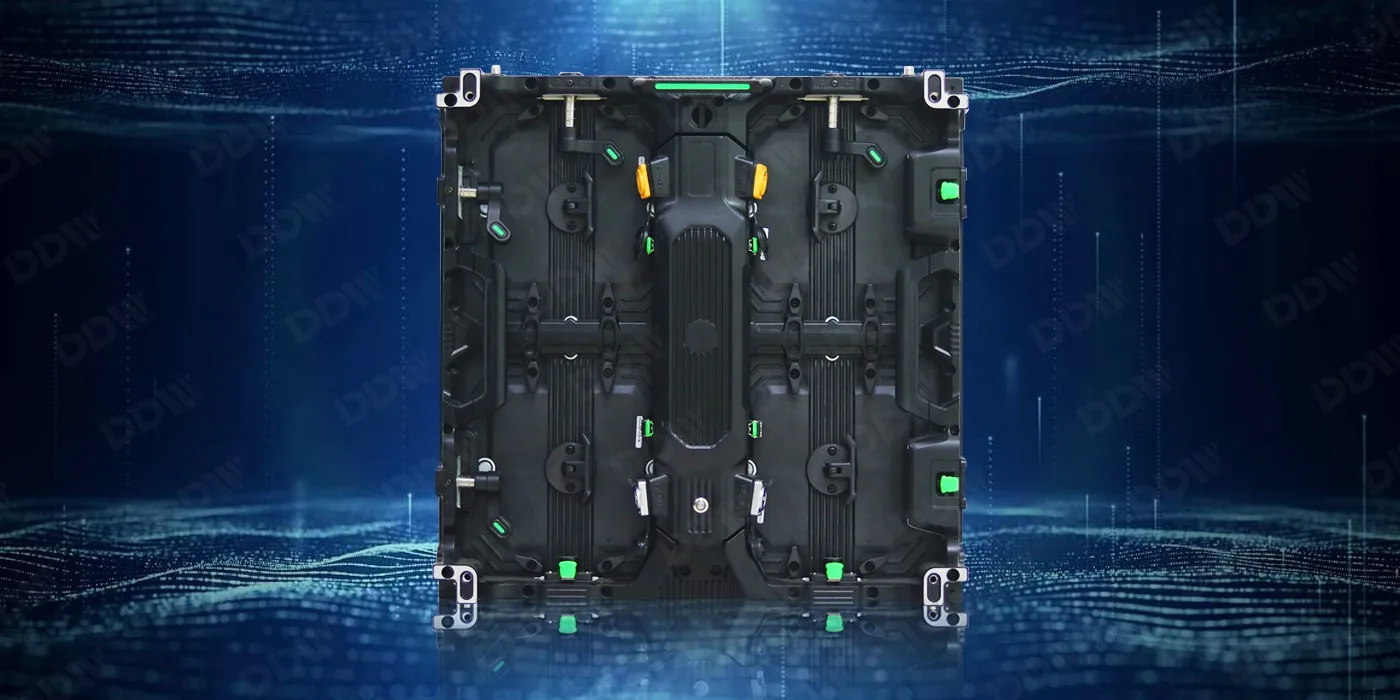

First class design for die casting cabinet frame, each cabinet (include all components) is only 8kg , four sets strong fast lock to make assembling to be easier.

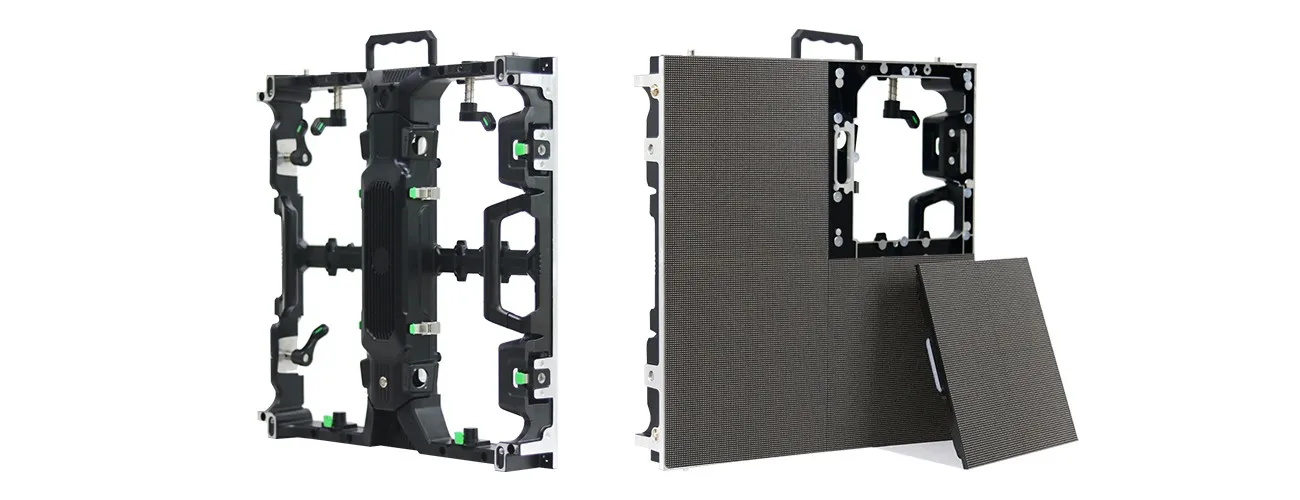

RF series LED display adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. Easy installation for LED panels.

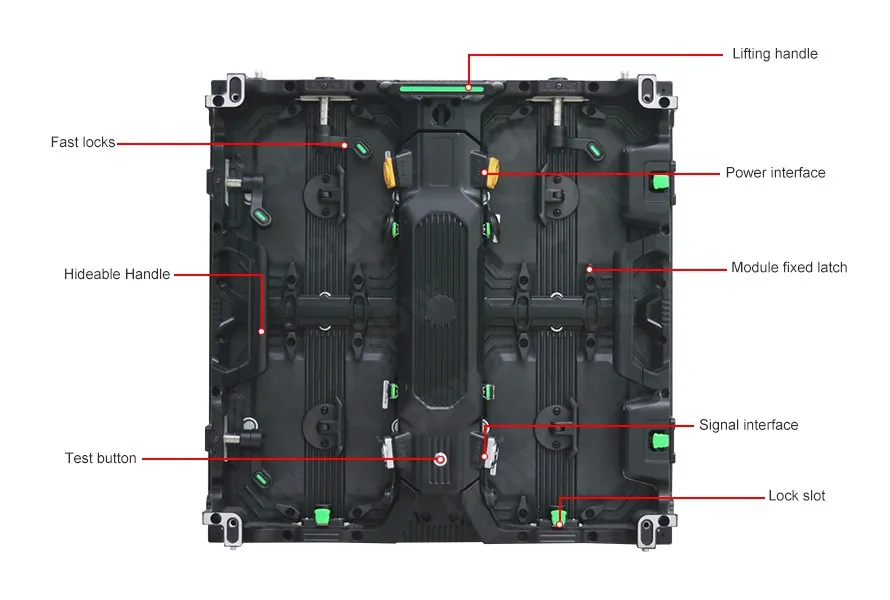

Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

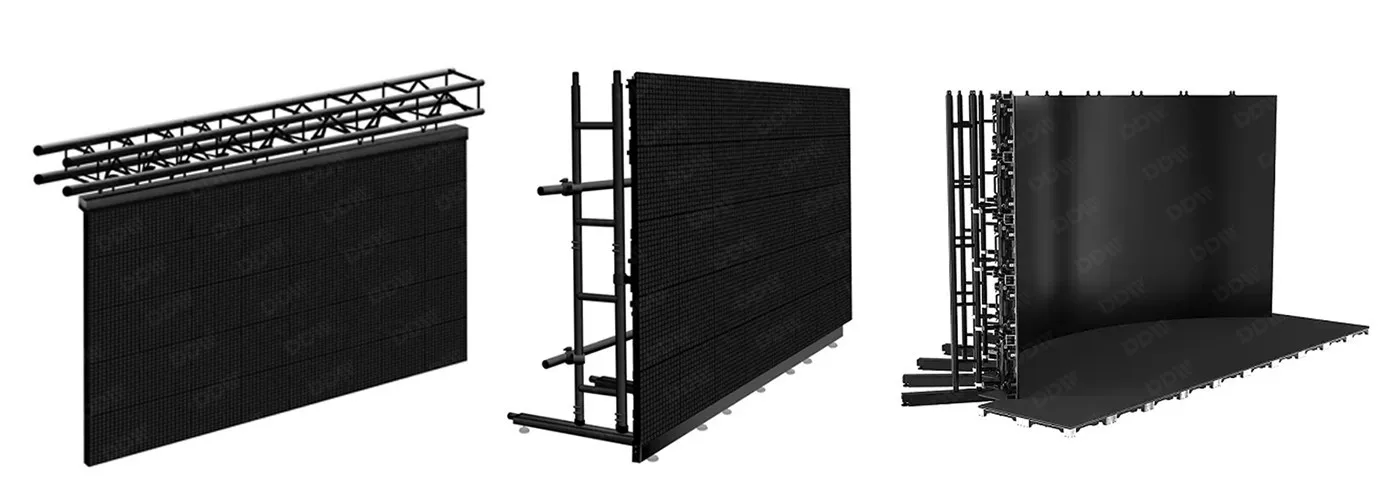

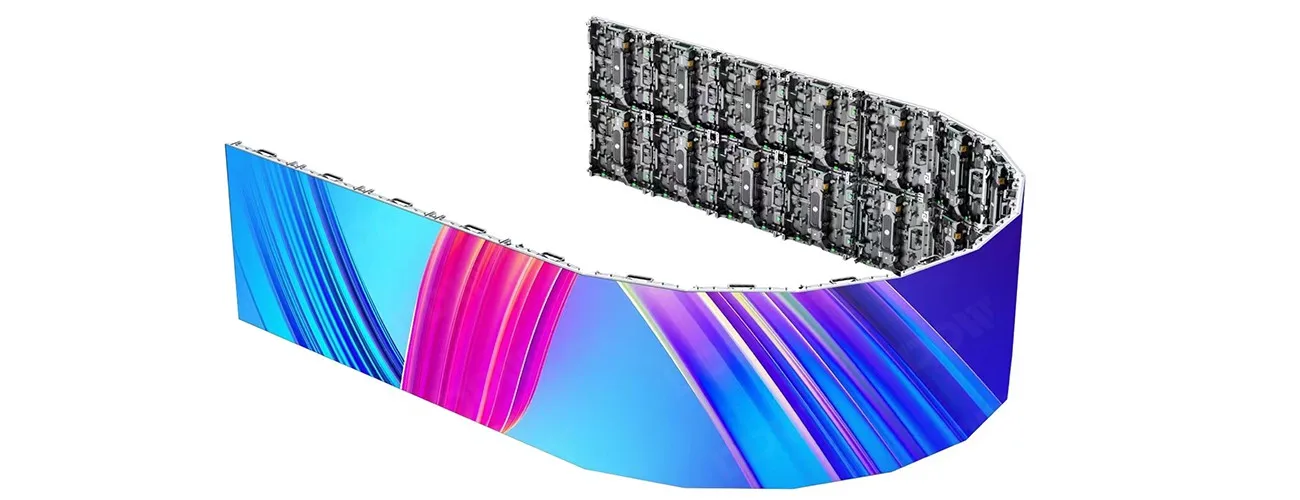

Allows to make curve video wall Inner outer arcs 15°,0°,-15° adjustable,right angle combination and other creative combinations
| Pixel Pitch | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2020/1921 | SMD1921 |
| Density (Pixels/ni) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution | 128x128 | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size | 250x250mm | ||||
| Driving Mode | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |

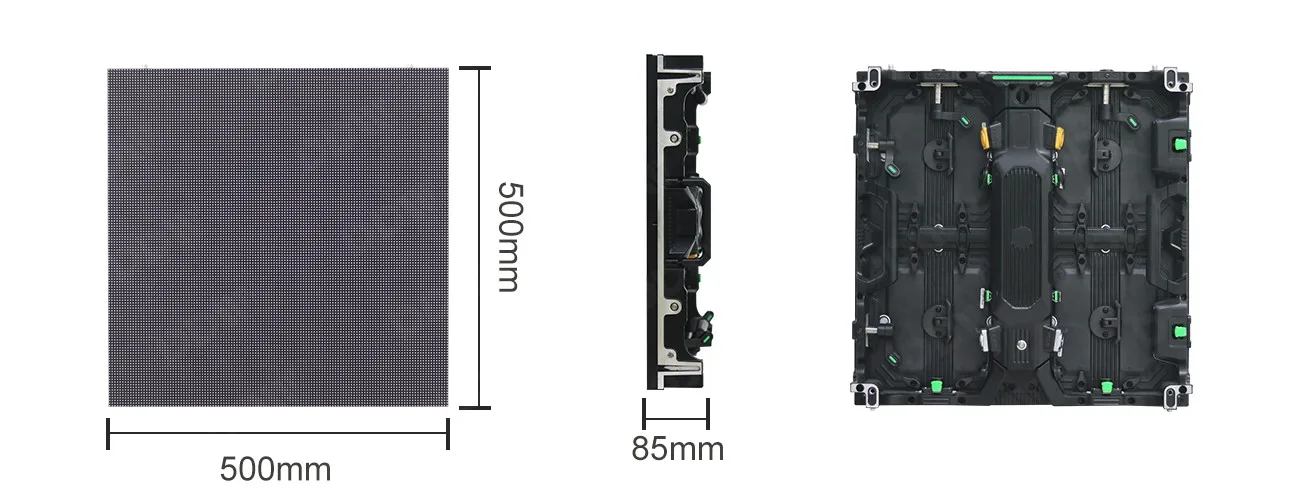

| Cabinet Size | 500x500x85mm | ||||
| Cabinet Weight | 8kg | 8kg | 8kg | 8kg | 8kg |
| Brightness | ≥1000cd/m² | ≥1200cd/m² | ≥1,000cd/m² | 4500≥1,200cd/m² | ≥4500cd/m² |
| viewing Angle | 140° | ||||
| Gray Grade | 14Bits | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption | 480w | 480w | 480w | 576/720w | 560w |
| Avg. Power Consumption | 160w | 160w | 160w | 192/240w | 190w |
| Frame Frequency | ≥60Hz | ||||
| Refresh Frequency | ≥3,840Hz | ||||
| Working Temperature | -20~ +60 | ||||
| Lifetime (Hours) | 100000H | ||||
| Protection Grade | IP31（indoor） | IP31（indoor） | IP31（indoor） | IP31（indoor）/IP65（outdoor） | IP31（indoor）/IP65（outdoor） |
This is a rental screen with excellent details. Optional cabinet size: 500mm*500mm and 500mm*1000mm. The main feature is to support the front maintenance of the module, as well as the design of the pluggable hub board and the processing of various details. It supports flexible construction methods such as arc and right-angle installation, making construction and maintenance more convenient. It is suitable for rental activities that have high requirements for installation timeliness and maintenance convenience, such as virtual video capture (XR), high-end stage construction, and LED screen construction for indoor and outdoor activities, etc. Up to 7680Hz refresh rate and gray scale bring the best visual performance to your application. A flexible locking system and lightweight cabinet ensure quick assembly and disassembly with only one technician.
