In the era of rapidly developing digital media, the visual communication of urban spaces is undergoing profound transformation. Traditional outdoor advertising formats—such as lightboxes, monopole billboards, bridge banners, and tri-vision displays—struggle to meet the dual demands of expressive power and communication efficiency from new-generation users. In contrast, outdoor mesh LED screens are emerging as a core force in façade LED lighting and commercial display, characterized by their lightweight, transparency, aesthetic appeal, and brightness. Particularly in modern urban renewal, architectural lighting, and cultural tourism district upgrades, transparent outdoor LED screens achieve a balance between beauty and functionality through high transparency and high-definition dynamic display. This article focuses on two mainstream mesh screen technologies—DIP (Direct In-line Package) and SMD (Surface-Mounted Device)—detailing their core structures, technical parameters, and application scenarios to help project stakeholders select the most suitable product type for creating impactful visual platforms.
Traditional advertising methods suffer from slow content updates, rigid formats, limited visual impact, and poor energy efficiency. The emergence of LED mesh screens revolutionizes content presentation and introduces significant improvements in both structure and usage.
Static text-and-image ads lack creativity and fail to retain attention. Transparent outdoor LED screens leverage dynamic video, vivid color gradients, and interactive scenes to quickly captivate viewers—particularly effective in high-traffic areas and transportation hubs.

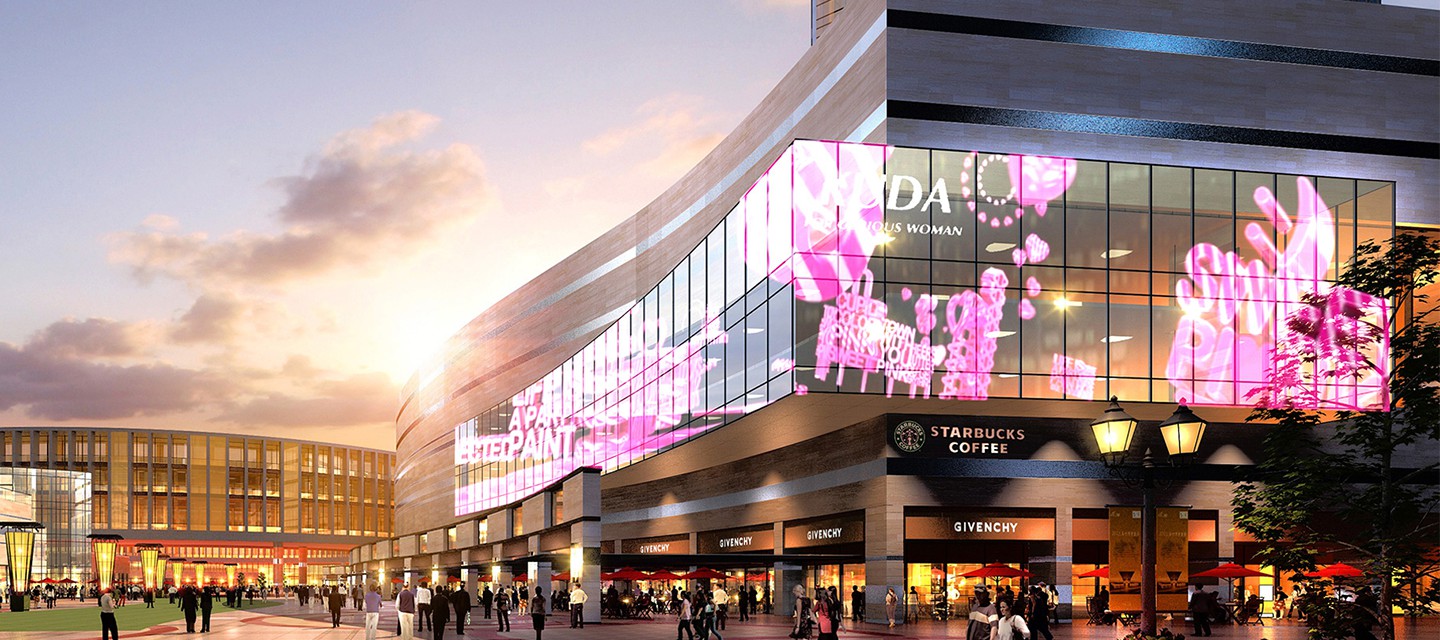

The grille-style structure offers high transparency without compromising the building’s natural lighting, while still delivering vibrant, high-definition visuals. Ideal for building façades and large glass curtain wall media.
These screens feature low wind resistance, excellent heat dissipation, and lightweight structure. The all-aluminum body ensures stable performance in all-weather outdoor environments, offering corrosion, water, lightning, and shock resistance—perfect for low-carbon urban development.
With wired or wireless communication to a computer, remote content control becomes easy—saving labor and material costs traditionally associated with updating ads.

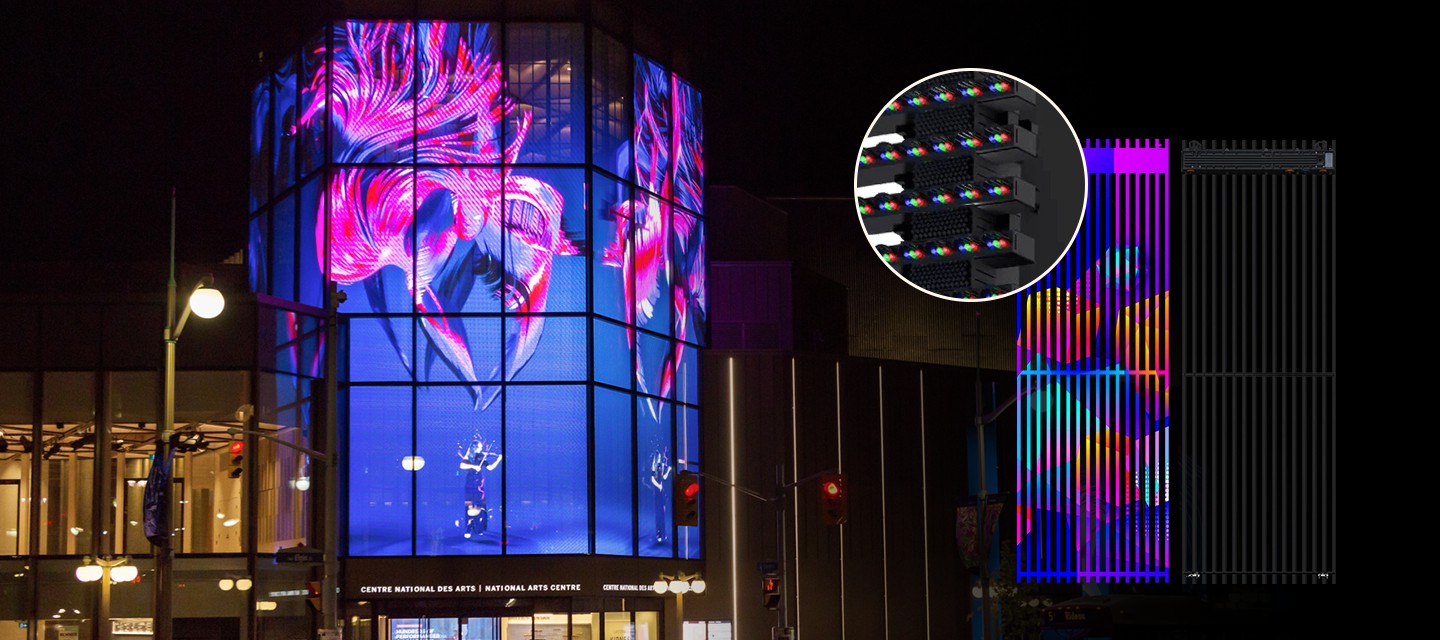

Utilizes DIP346 direct-insertion LEDs, with lamp pins penetrating the PCB and being firmly soldered. This provides robust structure, excellent wind and corrosion resistance—ideal for harsh weather and intense sunlight.
| Specification | Data |
|---|---|
| Pixel Pitch | P16 / P20 / P25 |
| LED Type | DIP346 |
| Brightness | ≥7500 nits |
| Transparency | 35%–60% |
| Protection Level | IP65 front / IP54 rear |
| Average Power | 200–350 W/㎡ |
| Weight | 25–35 kg/㎡ |
| Color Options | Single Red / Full Color |
·High-rise building façade advertising ·Bridge guardrail display systems ·Highway billboard towers ·Industrial park information displays ·Coastal anti-corrosion environments

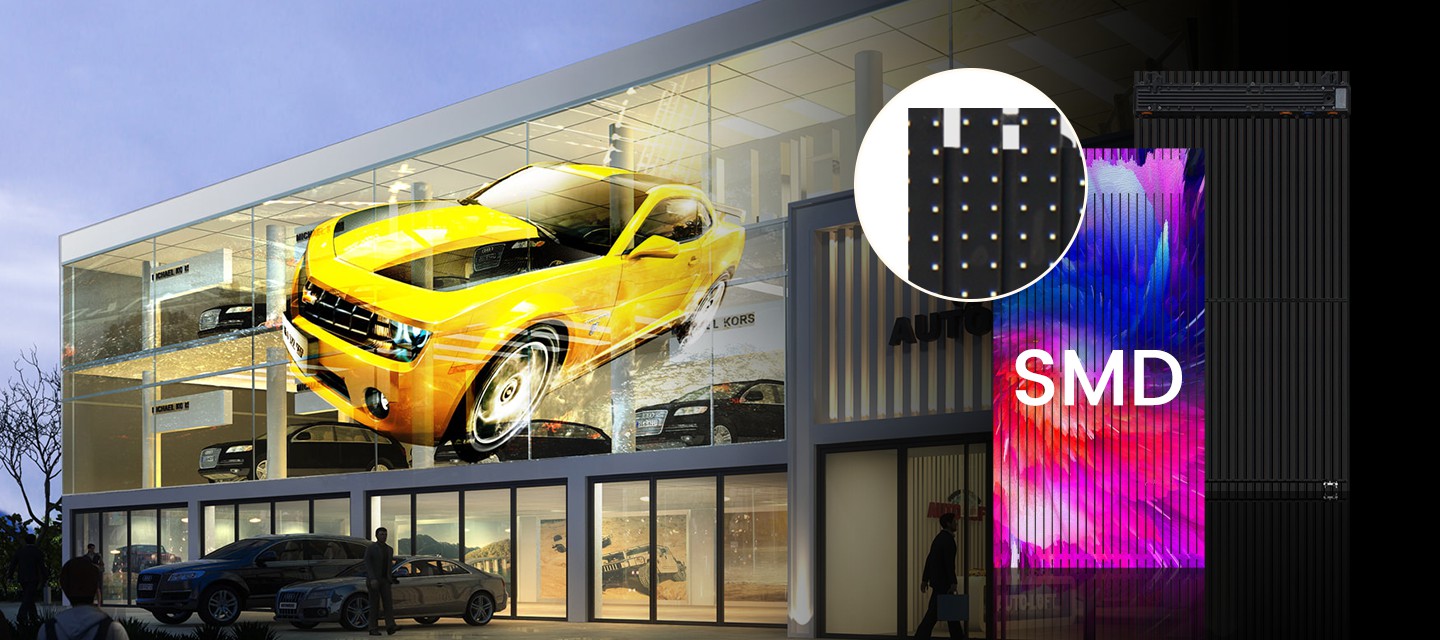

Uses SMD1921 / SMD2727 surface-mount LEDs with compact wiring and uniform picture quality. The screen is lighter and easier to install, providing a more refined visual experience.
| Specification | Data |
|---|---|
| Pixel Pitch | P8/P10/P12 |
| LED Type | SMD1921/SMD2727 |
| Brightness | 5000-6500 nits |
| Transparency | 30%–55% |
| Protection Level | IP65 front / IP54 rear |
| Average Power | 150–250 W/㎡ |
| Weight | 12–20 kg/㎡ |
| Color Options | Color Options / Full Color |

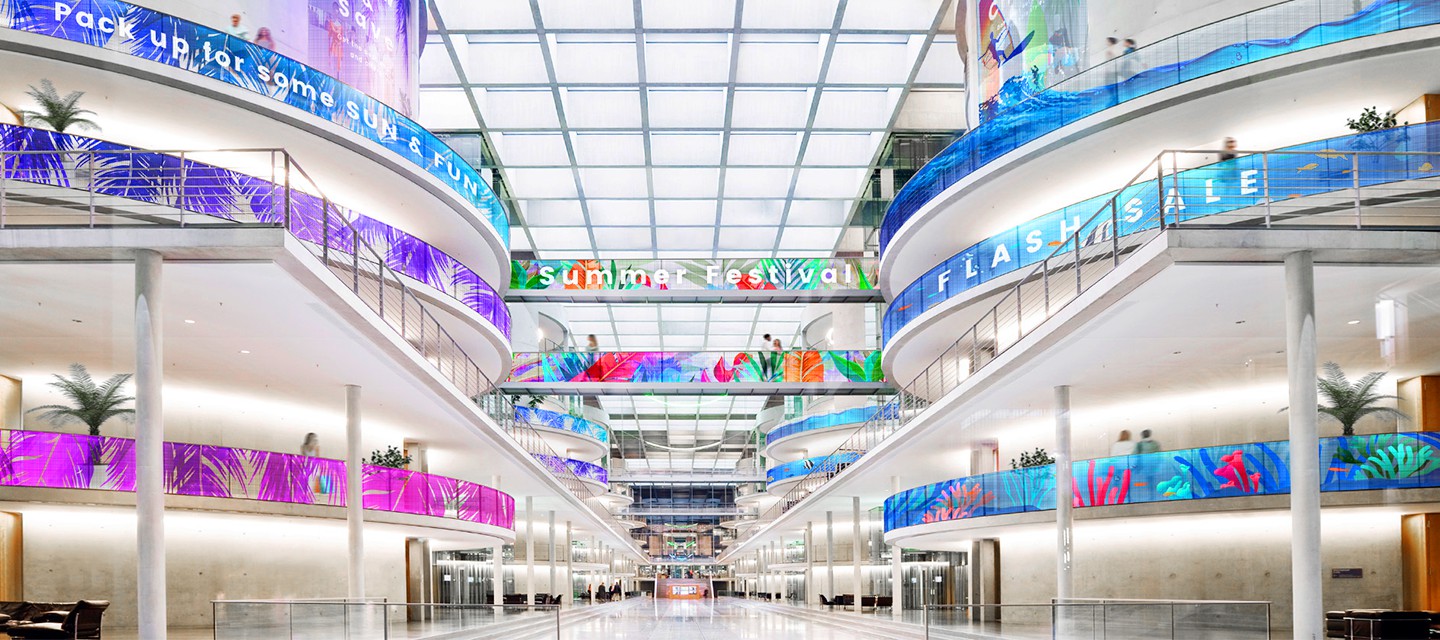

·Shopping mall glass curtain walls ·Lighting upgrades in cultural tourism zones ·Public building decorative media ·Corridors/atriums with custom installations ·Urban landmark LED art installations
| Dimension | DIP Mesh LED Screen | SMD Mesh LED Screen |
|---|---|---|
| Brightness | Ultra-high, ideal for direct sunlight | Medium-high, suited for city spaces |
| Display Precision | More pixelated, for long-distance viewing | Delicate and detailed, for close range |
| Installation | Heavier, requires steel supports | Lightweight, adaptable to various scenes |
| Heat Dissipation | Wind tunnel structure, good airflow | Aluminum shell, high thermal efficiency |
| Cost Control | Mature tech, more cost-effective | Sleek appearance, slightly higher price but good value |
| Key Applications | Outdoor ads, bridge railings | Building lighting, commercial wall media |
ddwdisplay is a professional LED display manufacturer with years of deep industry expertise, dedicated to delivering high-quality, high-performance outdoor mesh LED screen solutions to global customers. We offer core advantages in R&D, smart manufacturing, and overseas support. Our key product lines include:
ddwdisplay is a professional LED display manufacturer with years of deep industry expertise, dedicated to delivering high-quality, high-performance outdoor mesh LED screen solutions to global customers. We offer core advantages in R&D, smart manufacturing, and overseas support. Our key product lines include:
·Outdoor transparent and mesh LED screens (DIP/SMD) ·Indoor and outdoor fixed installation LED systems ·Rental LED displays for stage and exhibitions ·Creative custom-shaped and cultural tourism lighting projectsOur products are widely deployed in façade led lighting commercial media complexes, and urban cultural tourism projects, earning high praise for their stable and long-term performance. Guided by our philosophy, “Display for Better”, we use technology to light up urban spaces and creativity to amplify brand expression.
If you require technical drawings, solution recommendations, custom quotes, or project consulting, feel free to contact us. We look forward to co-creating more visually appealing urban communication experiences with you.
