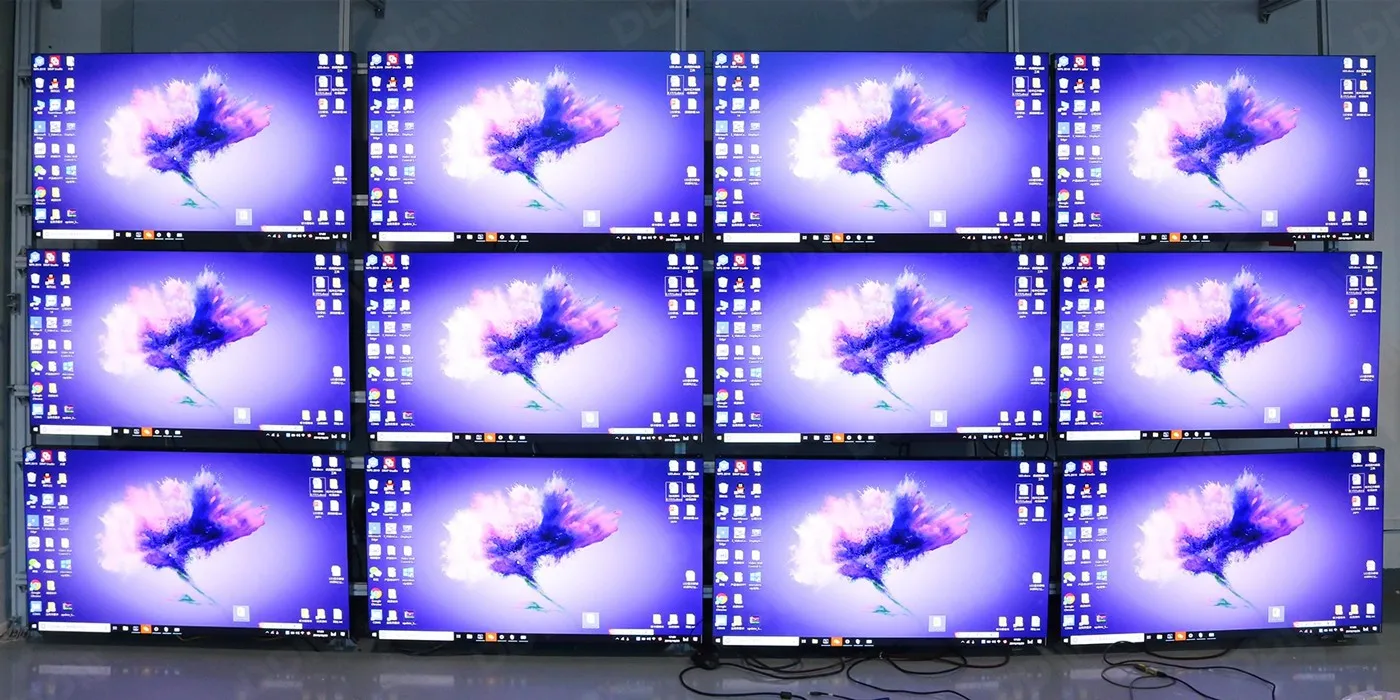

LW Series Video Wall display

As a professional LCD display manufacturer and solution provider, we provide R & D and production of a variety of different specifications and styles of video wall display to meet the needs of different scenarios.



Narrow Bezel

178° View Angle

Free Splicing



High Brightness

7/24 working


LW Series  Video Wall display
Feature Description
  • - Product Size:46″ 49″ 55″ 65″
  • - Super Narrow Bezel:0.88-8mm
  • - Multiple Installation Methods
  • - Different Splicing Display Mode
  • - 4K Full HD


LW Series  Video Wall display

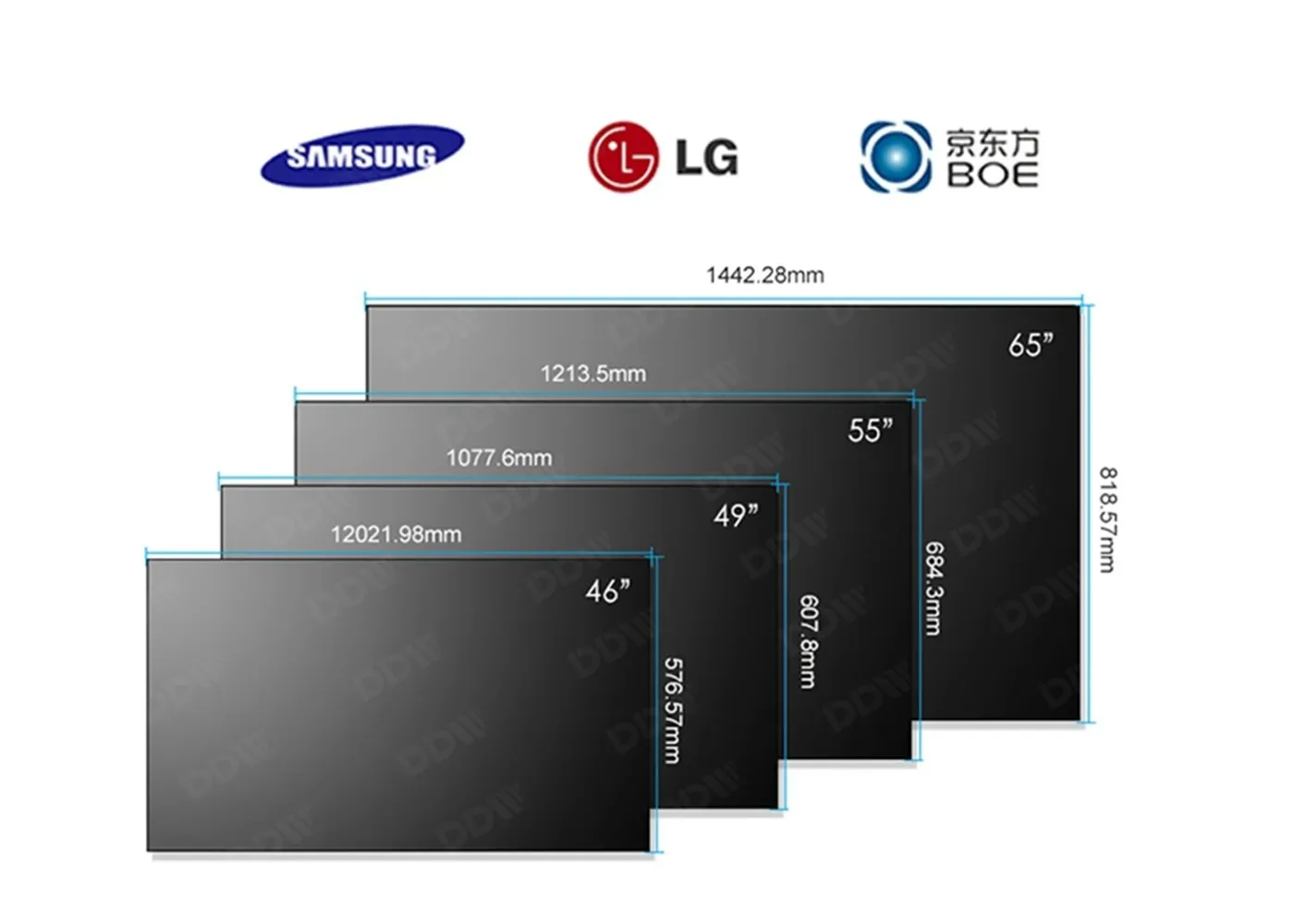

Customizable Size

The size diversification choice, achieves satisfies each user

LW Series  Video Wall display
178° Super Width View Angle

Ensure that multi angle can present the most perfect picture quality

LW Series  Video Wall display

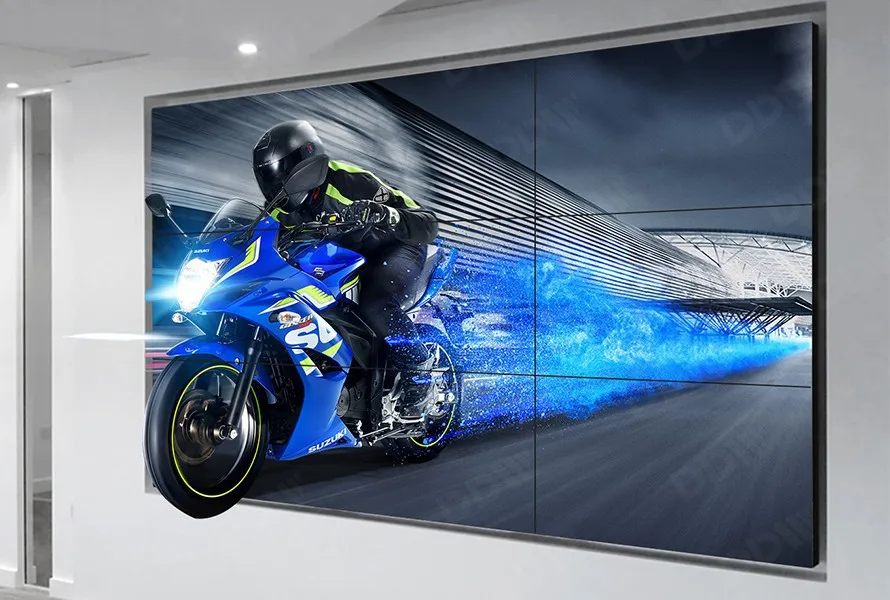

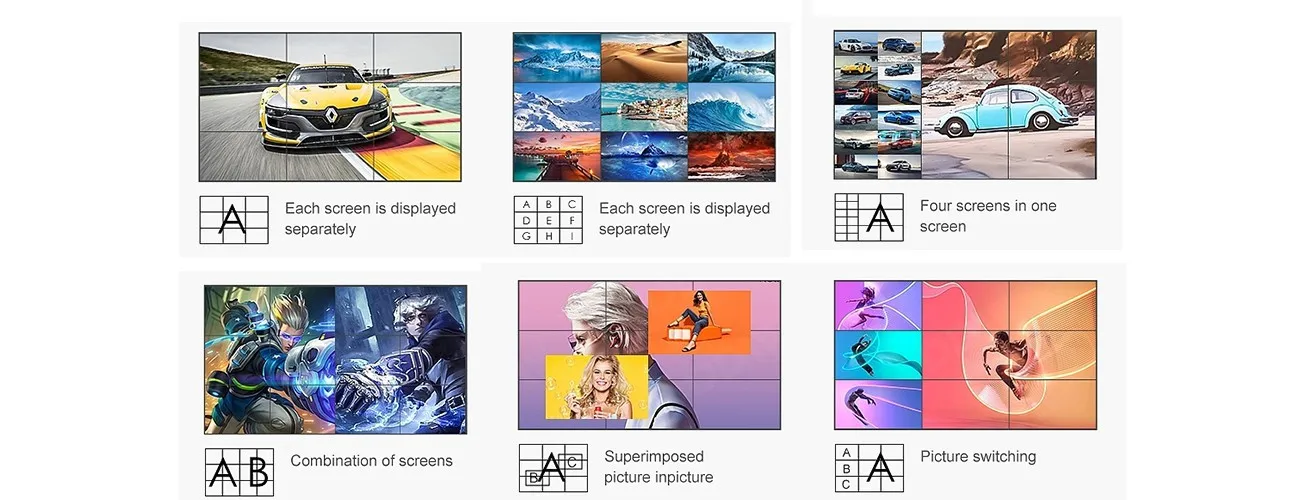

Intelligent Split Screen

Screen intelligent splicing,single screen arbitrary combination

LW Series  Video Wall display

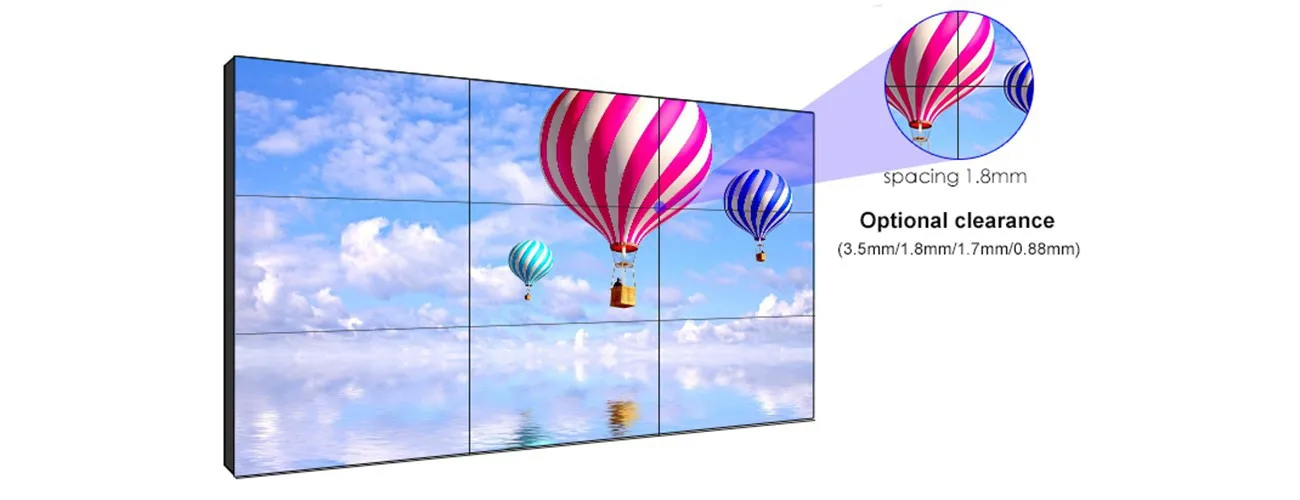

0.8mm Narrow Bezel

The screen bezel between the screen only 3.5mm/ 1.8mm/0.8mm

LW Series  Video Wall display

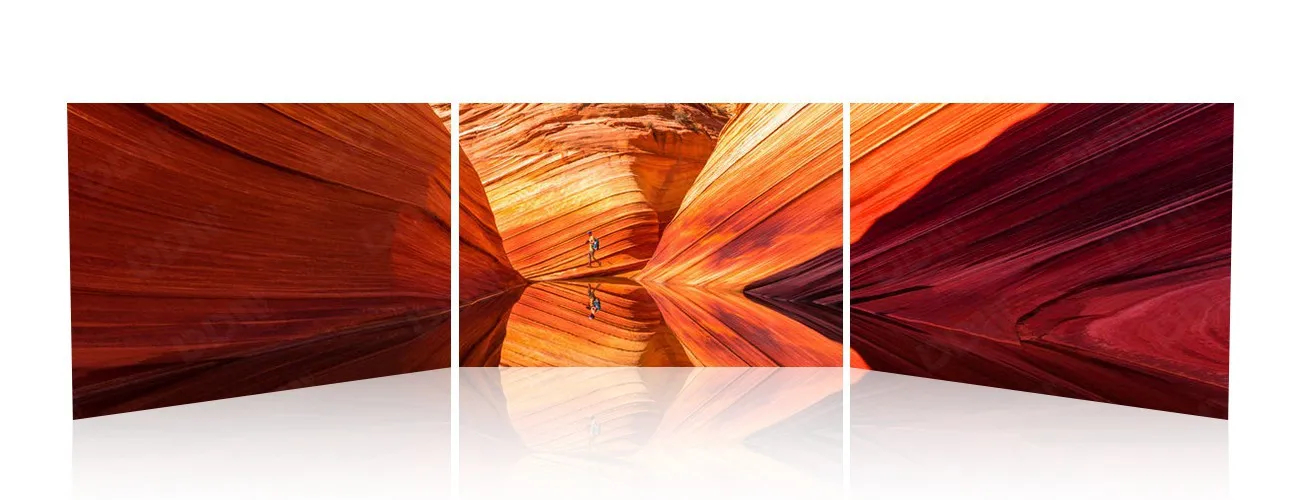

Heteromorphic Display
LW Series  Video Wall display

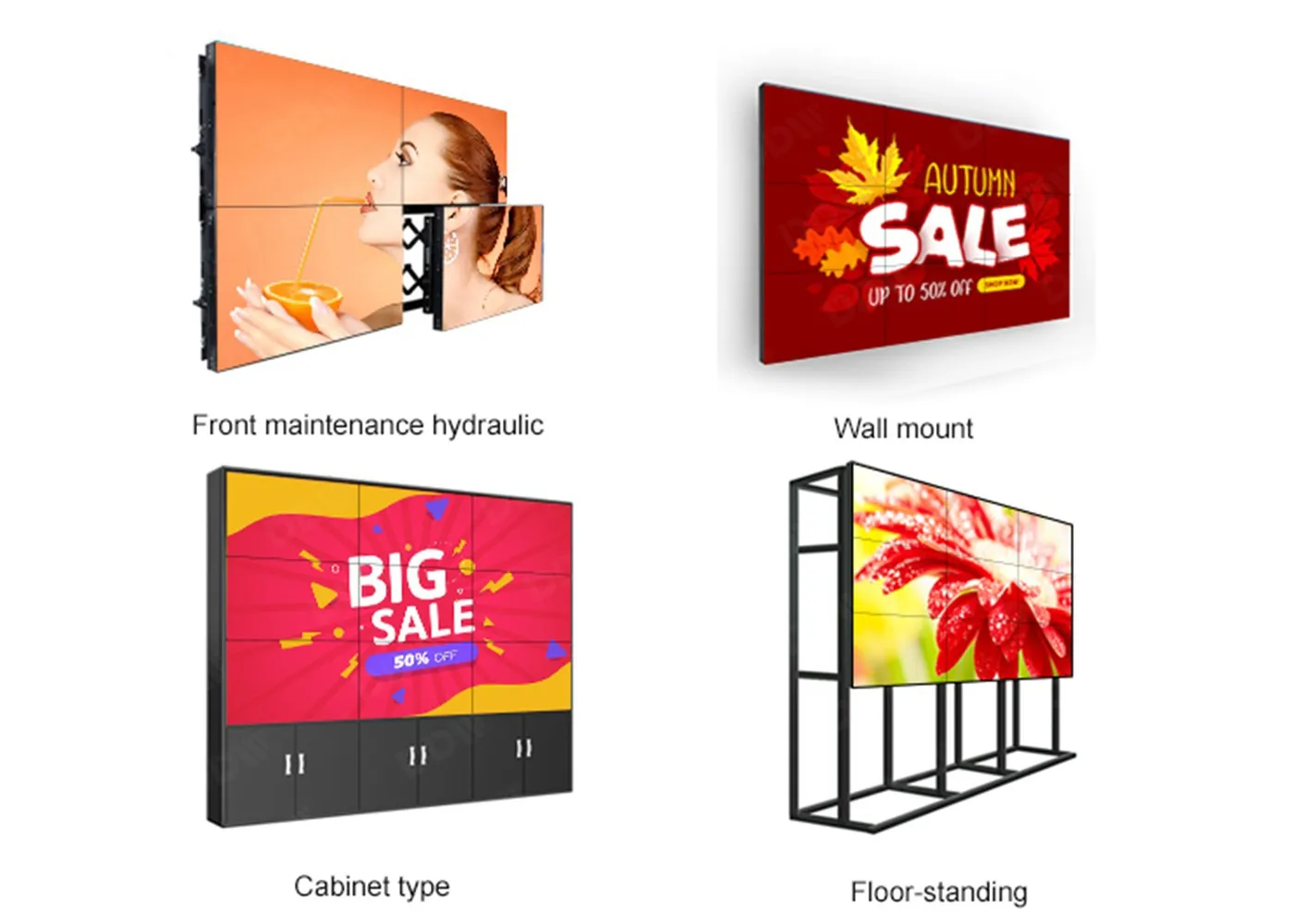

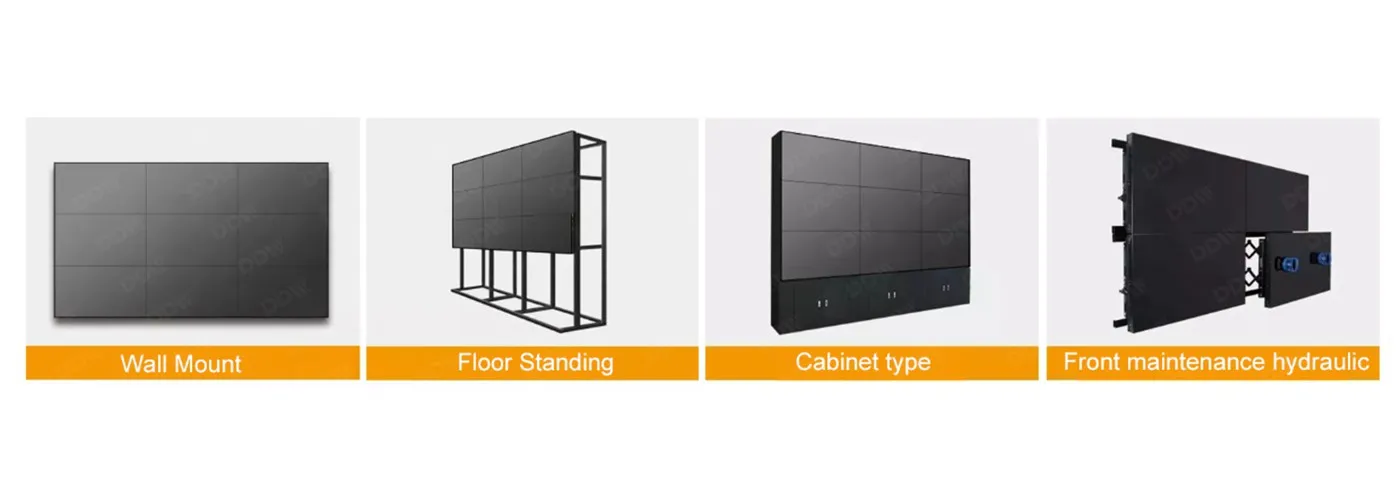

Various installation mode
LW Series  Video Wall display


Product 46 inch 49 inch 55 inch 65inch
Splicing Gap 0.88/ 1.7/ 1.8/ 3.5/ 3.9/ 5.5/ 8 mm
Resolution 1920*1080
Brightness 500cd/m² 700cd/m² 500cd/m² 700cd/m²
Ratio 3500:01:00 3500:01:00 3500:01:00
Weight 21.5 KG 23.6 KG 28.5 KG 33 KG
Lifespan 60000 H
Working Temperature 0 ~ 60 ℃
Power Supply 100 ~ 240V, 50 / 60 Hz
Rated power consumption 210W ( MAX : 300W )
Working hour 7 * 24 H 7 * 24 H 7 * 24 H 7 * 24 H

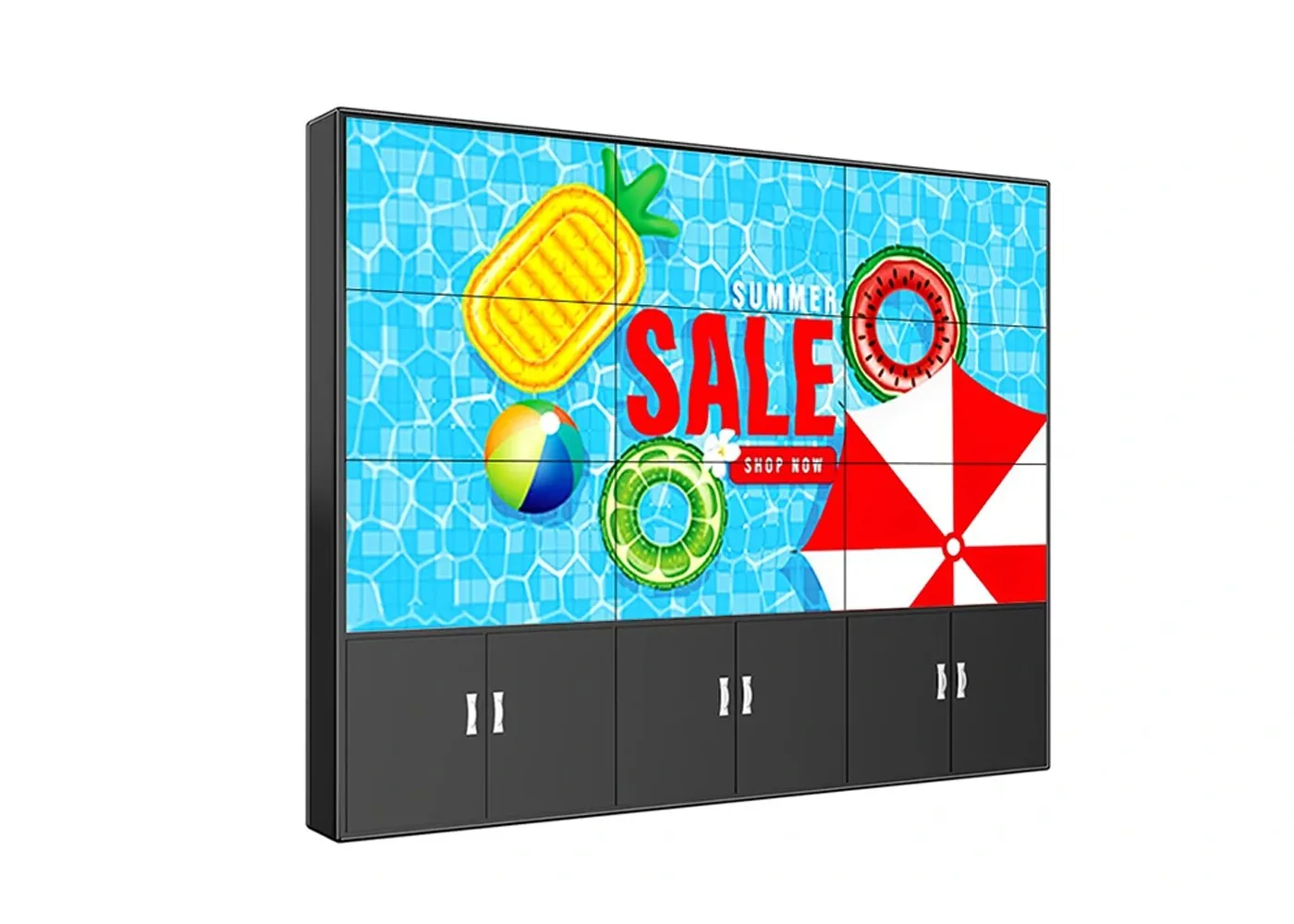

Installation wall mounted type/ cabinet type/ floor standing
Input interface VGA*1, HDMI*1, DVI*1, BNC*2, IPS*1, RS232*1
Optional matrix, video processor, video distributor
Operation RS232 centralized control internet remote control
TV wall resolution 1920*1080, 3840*2160, point to point display


HDMI Cable
HDMI Cable
Power Cord
Power Cord
RJ45 RS232 Convertor
RJ45 RS232 Convertor
IR Controller
IR Controller
Remote Controller Receiver
Remote Controller Receiver
RS232 Cable
RS232 Cable
