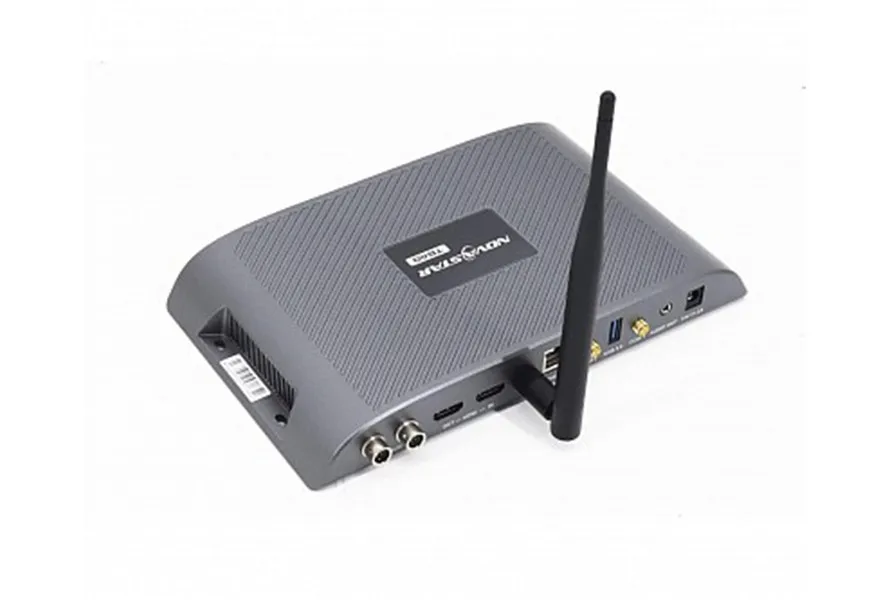

Novastar TB40 LED Media player Box

Support: 1300000 pixel loading capacity with max width of 4096 andheight 4096Pixel Can add 4G module size: 274*139*40mm Weight: 1250 Support: 650000-pixel loading capacity with max width of 4096 andheight 4096Pixel

Features

TB40
Feature Description
  • - Synchronous and asynchronous modes
  • - Synchronous playback across multiple screens
  • - Support for 4G modules
  • - Switching between Wi-Fi AP and Wi-Fi STA
  • - Powerful processing capacity
  • - Loading capacity up to 1,300,000 pixels

Descriptions

Output

  • Loading capacity up to 1,300,000 pixels
    Maximum width: 4096 pixels
    Maximum height: 4096 pixels
  • 2x Gigabit Ethernet ports
    All these four ports serve as primary by default.
    Users can also set two as primary and the other
    two as a backup.
  • 1x Stereo audio connector
    The audio sample rate of the internal source is
    fixed at 48 kHz. The audio sample rate of the
    external source supports 32 kHz, 44.1 kHz, or
    48 kHz. If NovaStar’s multifunction card is used
    for audio output, audio with a sample rate of 48
    kHz is required.
  • 1x HDMI 1.4 connector
    Maximum output: 1080p@60Hz, support for
    HDMI loop

Input

  • 1x HDMI 1.4 connector
    In synchronous mode, video sources input from this connector can be scaled to fit the entire screen automatically.
  • 2x sensor connectors
    The audio sample rate of the internal source is
    fixed at 48 kHz. The audio sample rate of the

Control

  • 1x USB 3.0 (Type A) port
    Allows for USB playback and firmware upgrade
    over USB.
  • 1x USB (Type B) port
    Connects to the control computer for content
    publishing and screen control.
  • 1x Gigabit Ethernet port
    Connects to the control computer, a LAN or
    public network for content publishing and screen
    control.

Performance

  • Powerful processing capacity
    Quad-core ARM A55 processor @1.8 GHz
    − Support for H.264/H.265 4K@60Hz video
    decoding
    − 1 GB of onboard RAM
    − 16 GB of internal storage
  • Flawless playback
    2x 4K, 6x 1080p, 10x 720p, or 20x 360p video
    playback

    Functionality

  • All-round control plans
    − Enables users to publish content and control screens from a computer, mobile phone, or tablet
    − Allows users to publish content and control
    screens from anywhere, anytime.
    − Allows users to monitor screens from
    anywhere, anytime.
  • Switching between Wi-Fi AP and Wi-Fi STA
    − In Wi-Fi AP mode, the user terminal connects to the built-in Wi-Fi hotspot of the TB40. The default SSID is “AP+Last 8 digits of SN” and the default password is “12345678”.
    − In Wi-Fi STA mode, the user terminal and
    the TB40 are connected to the Wi-Fi hotspot of a router.
  • Synchronous and asynchronous modes
    − In asynchronous mode, the internal video source works.
    − In Wi-Fi STA mode, the user terminal and
    the TB40 are connected to the Wi-Fi hotspot of a router.
  • In synchronous mode, the video source
    input from the HDMI connector works.
  • Synchronous playback across multiple screens
    NTP time synchronization
    − GPS time synchronization (The specified
    4G module must be installed.)
    − RF time synchronization (The specified RF
    module must be installed.)
  • Support for 4G modules
    The TB40 ships without a 4G module. Users
    have to purchase 4G modules separately if
    needed.
    Network connection priority: Wired network > WiFi network > 4G network
    When multiple types of networks are available,
    the TB40 will choose a signal automatically
    according to the priority.

Specifications

Electrical Parameters Input power 100-240V~, 50/60Hz, 0.6A
Maximum power consumption 18 W
Storage Capacity RAM 1 GB
Internal storage 16 GB
Operating Environment Temperature –20ºC to +60ºC
Humidity 0% RH to 80% RH, non-condensing
Storage Environment Temperature –40°C to +80°C
Humidity 0% RH to 80% RH, non-condensing
Physical Specifications Dimensions 274.3 mm × 139.0 mm × 40.0 mm
Net weight 1250.0 g
Gross weight 1653.0 g
Note: It is the total weight of the product,
accessories and packing materials packed
according to the packing specifications.
Packing Information Dimensions 385.0 mm × 280.0 mm × 75.0 mm
Accessories 1x Wi-Fi omnidirectional antenna
1x AC power cord
1x Quick Start Guide
1x Packing list

System Software Android 11.0 operating system software
Android terminal application software
FPGA program

Note: Third-party applications are not supported.
IP Rating IP20
Please prevent the product from water intrusion and do not wet or wash the product

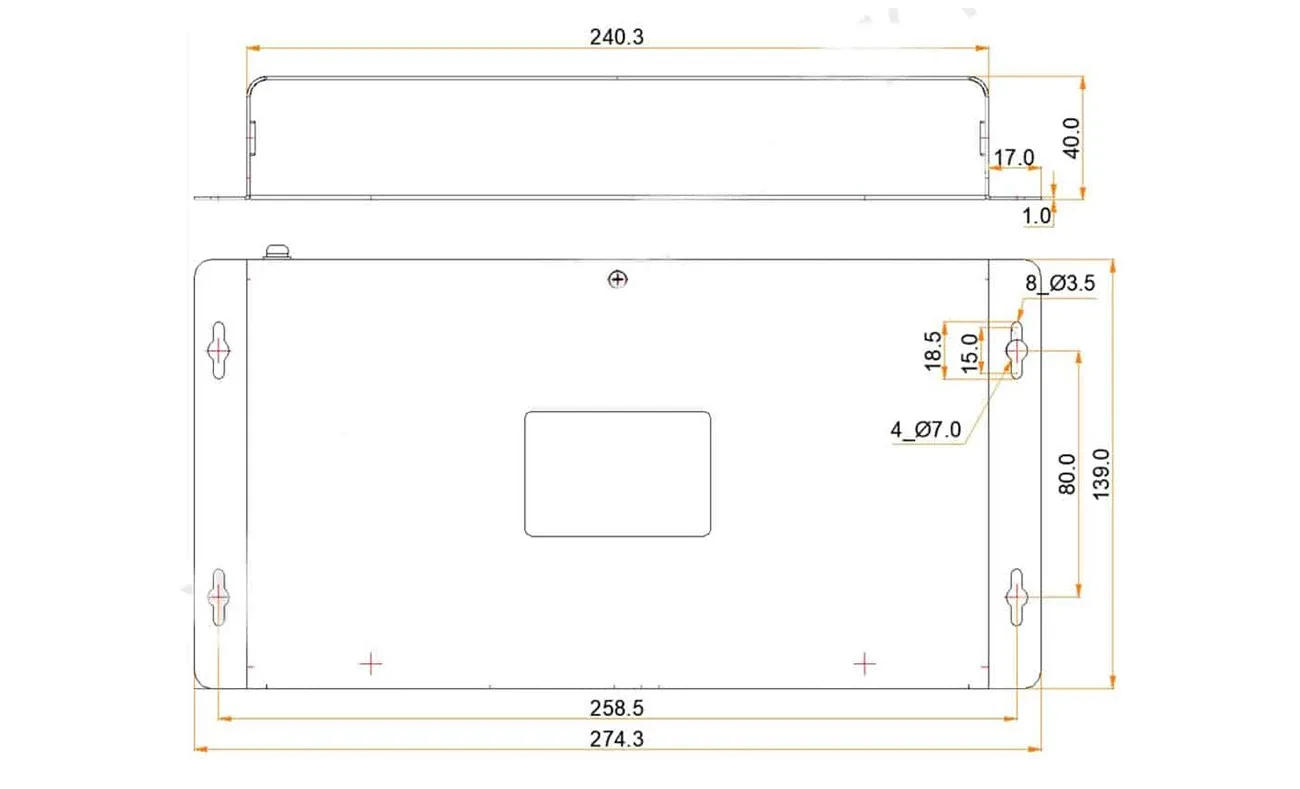

Diagram
