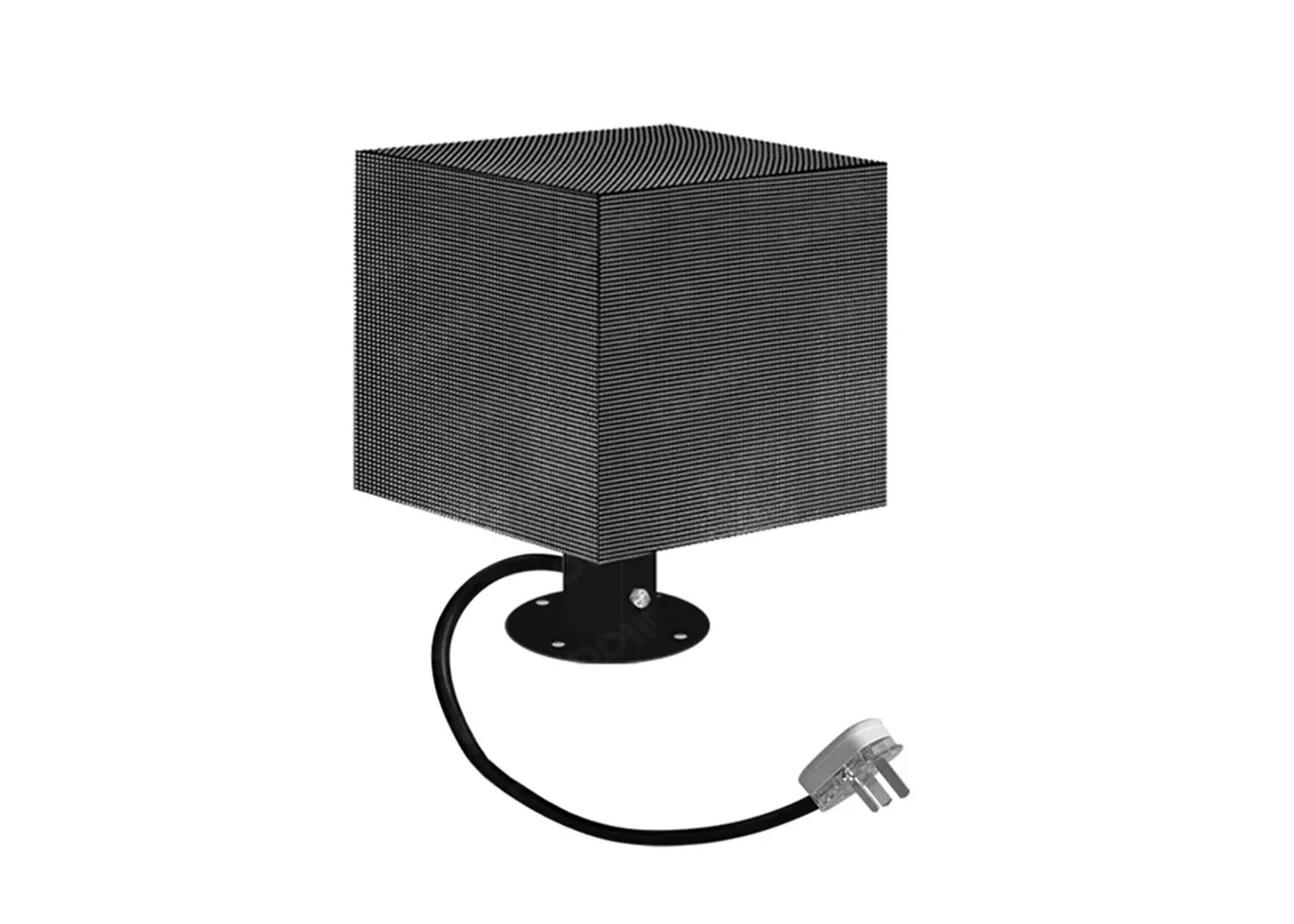

CU series LED Cube screen

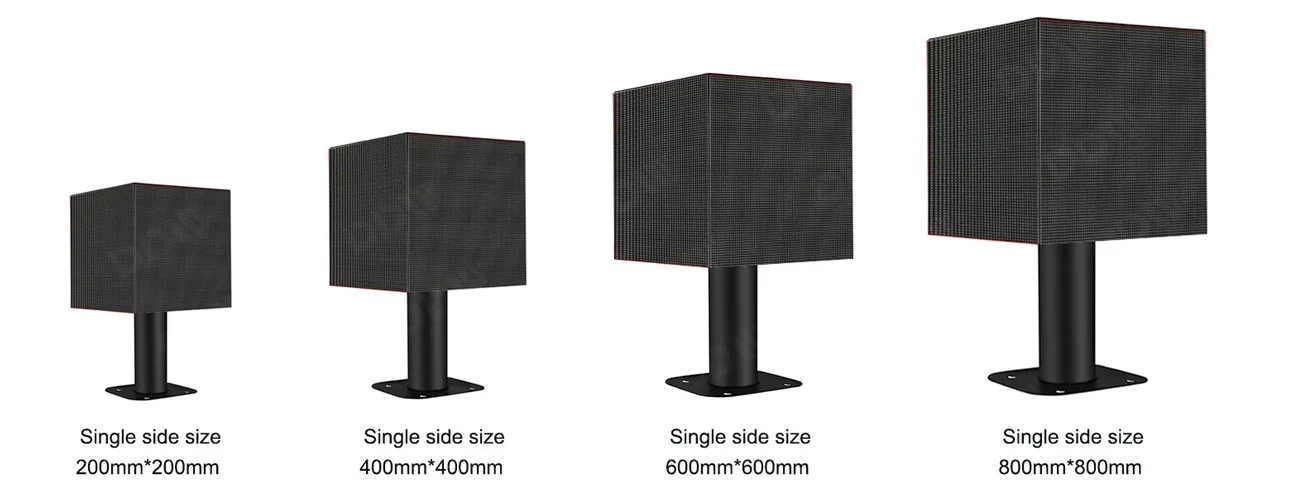

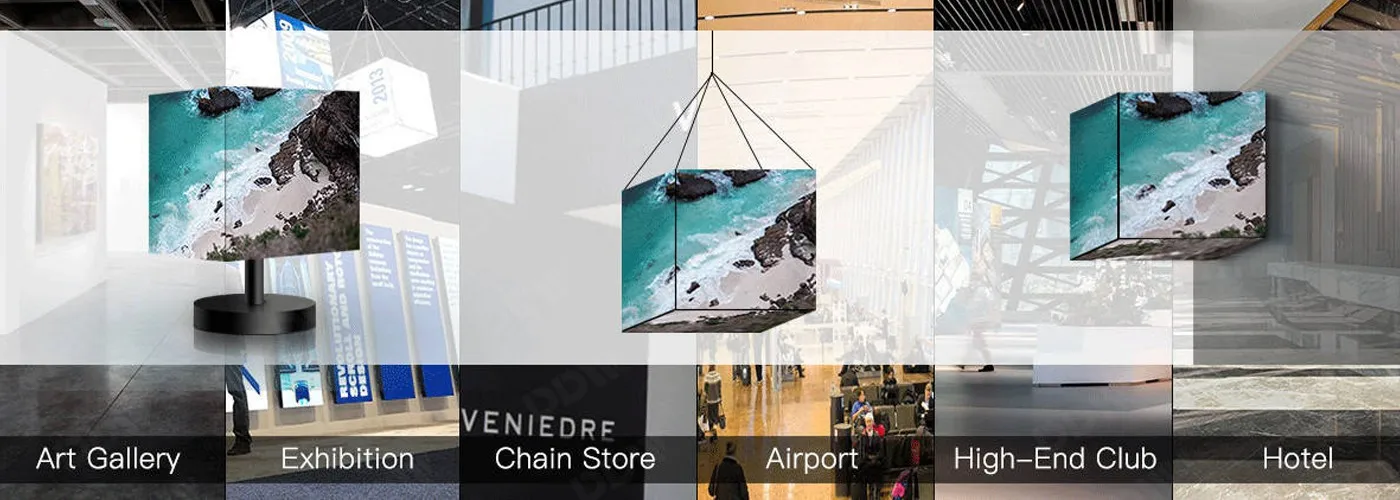

LED cube display is designed for HD visual effects that is applicable for museum, trade shows, special events that need creative decorations. It can be widely used for many different application areas. Regular size range from 200*200mm,400*400mm,600*600mm, 800*800mm, multiple size choice: 4 sides, 5 sides,6 sides. Large size can be also customized.

Features

3840 Hz

Wide Viewing Angles

IP65 Waterproof

High Brightness

Magnetic Suction Installation

Front Maintenance

360° Visual Angle

Low Power Consumption

Advantages

CU Series LED Cube screen
Feature Description
  • - Industry outdoor minimum distance products, waterproof grade IP65
  • - Any size and size can be designed and manufactured according to customer requirements
  • - 360 Visual angle, any angle can feel good visual effect
  • - Convenient installation, support a variety of installation methods

Video

CU Series LED Cube screen

Parameters

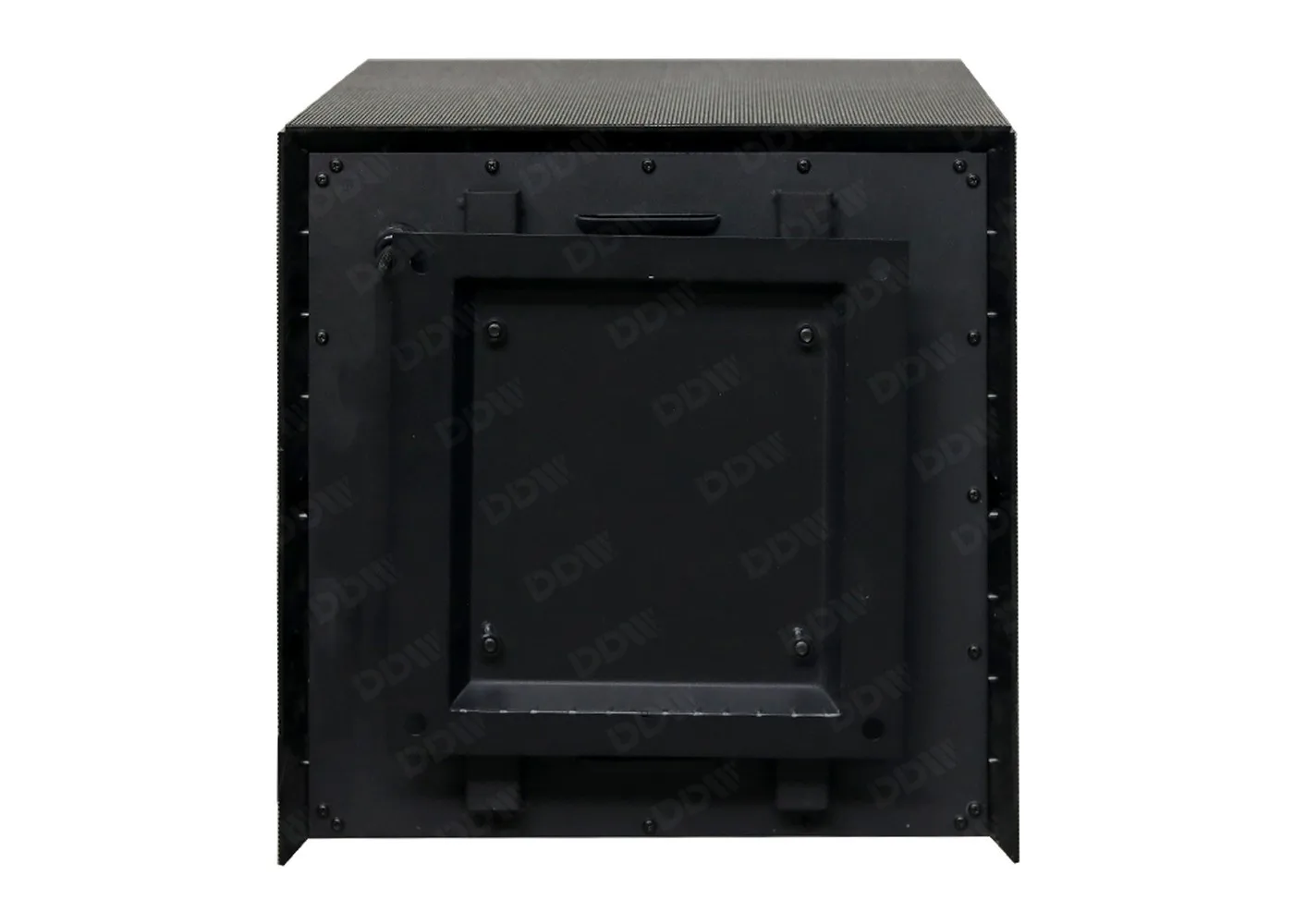

Friendly Maintenance

The cabinet adopt cable-less design which can be maintenence in seconds, magnetic modules with front and rear maintenance

CU Series LED Cube screen
Cabinet Specs

Each side can be made as square screen based on different sizes of modules, 4 sides,5 sides,6 sides optional

CU Series LED Cube screen


Installation

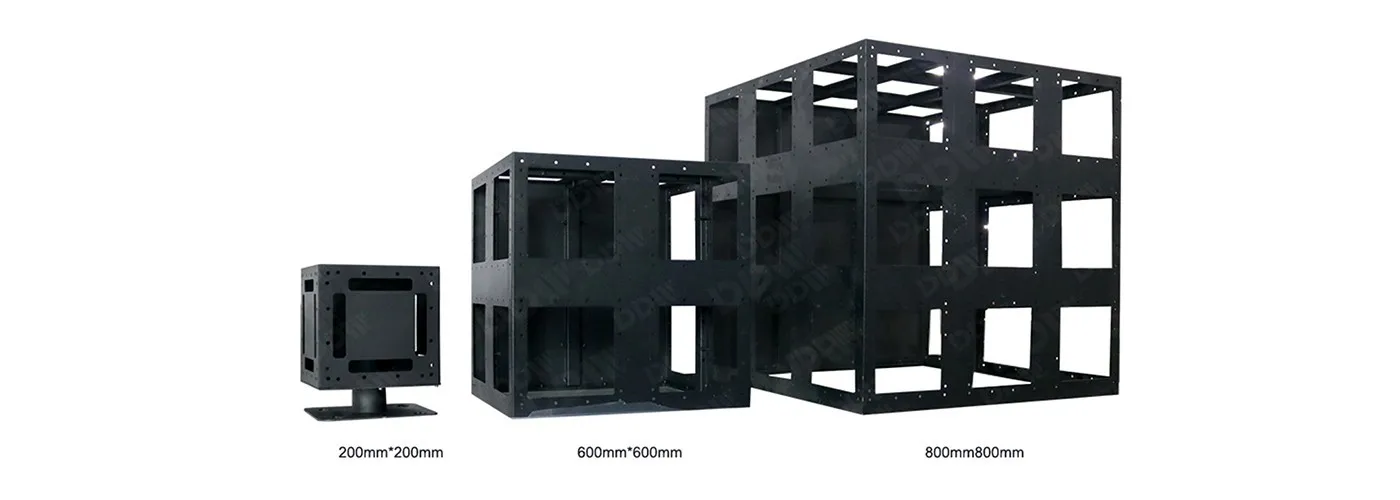

internal structure
CU Series LED Cube screen

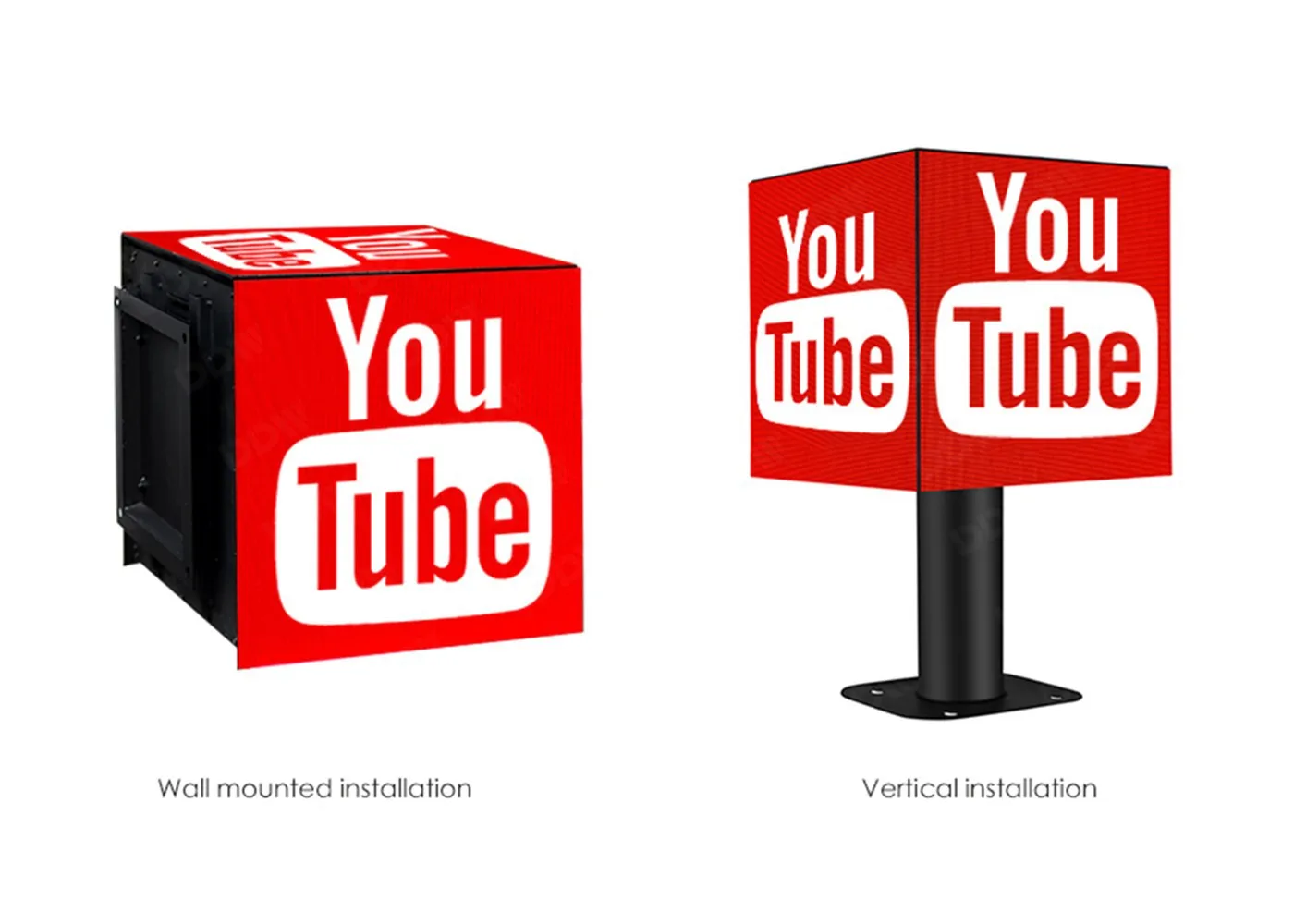

Various installation mode
CU Series LED Cube screen

Specifications

 Item PH2.5 Outdoor Magic Cube Display
 Single side size (mm) 200mm*200mm 400mm*400mm 600mm*600mm 800mm*800mm
Sides 4 or 5
LED Type SMD2020

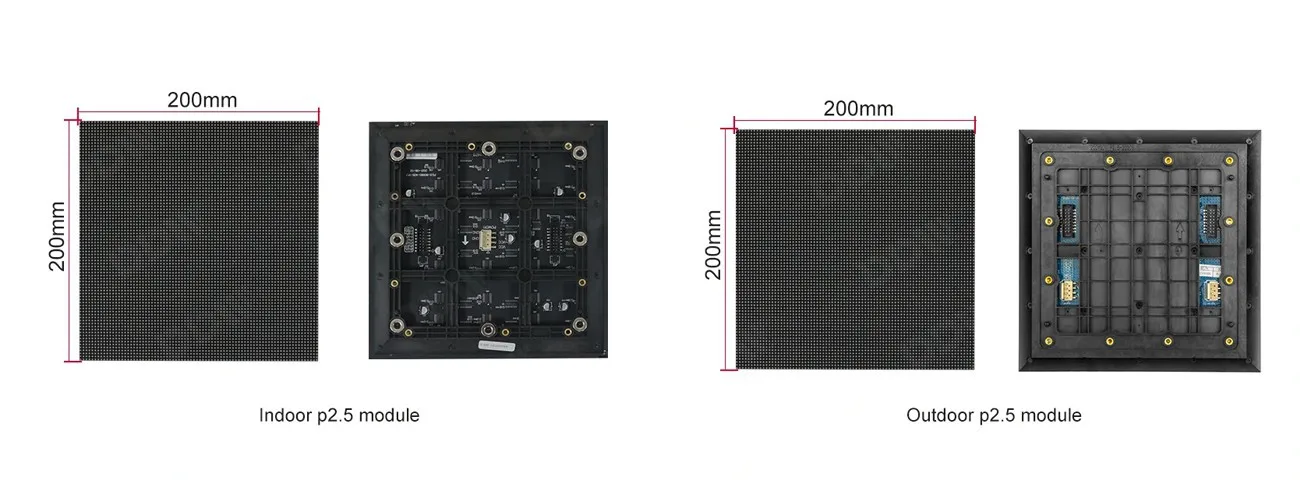

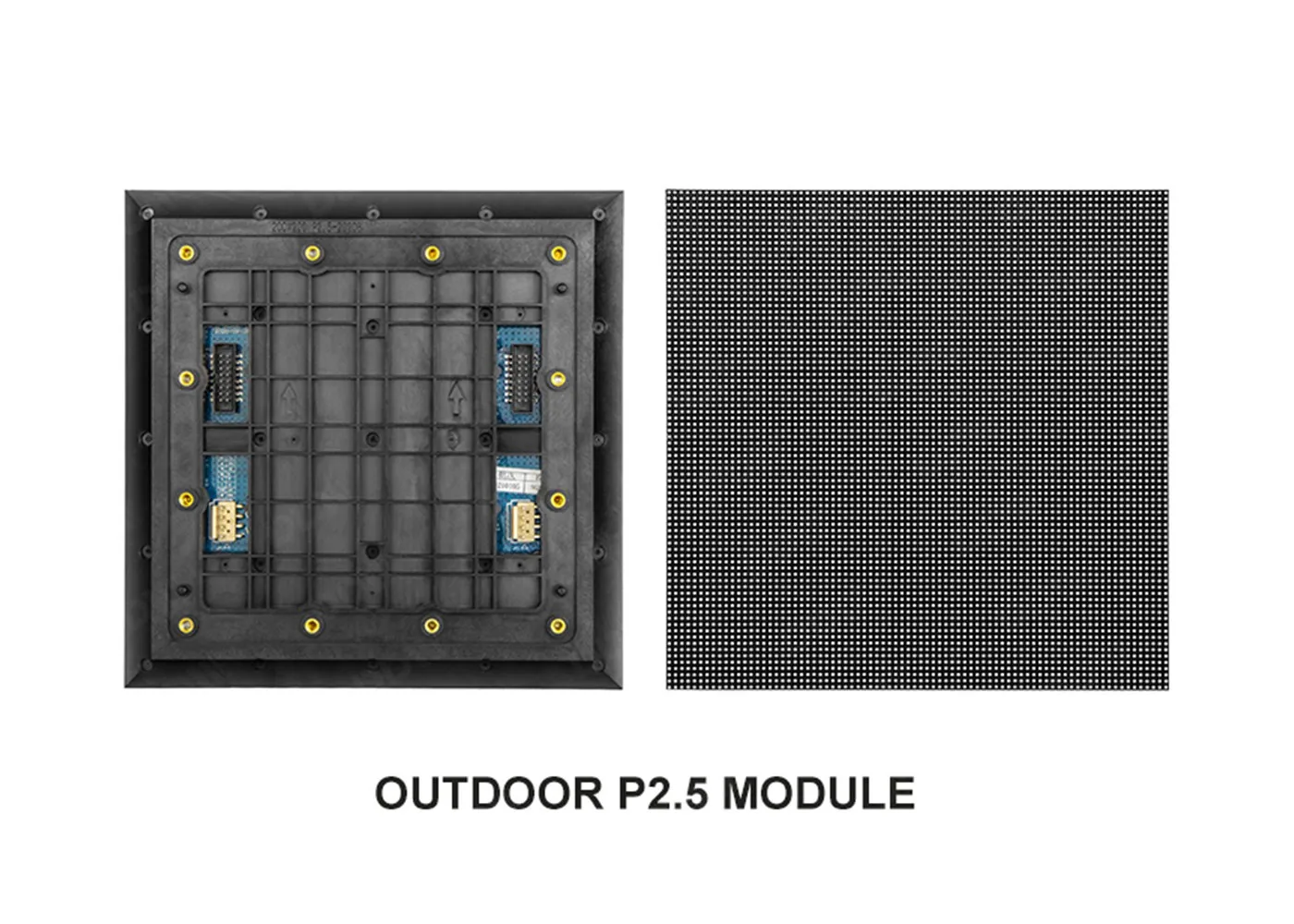

Module size ( mm ) 200×200
Module Resolution 80dots*80dots
Display Size ( mm ) 200x200x4 400x400x5 600x600x5 800x800x5
Single side Resolution 80dots*80dots 160dots*160dots 240dots*240dots 320dots*320dots
Refresh Ratio 3840Hz
Brightness ( cd/m² ) 5800>650
Max Power ( W/m² ) 160
 Aversge Power ( W/m² ) 50
Protection level IP45/IP65

Accessories

Power Supply
Power Supply
LED suction cup
LED suction cup
Power cable-Flat cable
Power cable-Flat cable
CAT cable 5V Power-cable
CAT cable 5V Power-cable
