Outdoor/indoor 500*500mm Right-angle rental LED screen Can be made 90 degree angle screen Double lockes both right and left sides IP65 waterproof, dustproof
3840 Hz
Wide Viewing Angles
IP65 Waterproof
High Flexibility

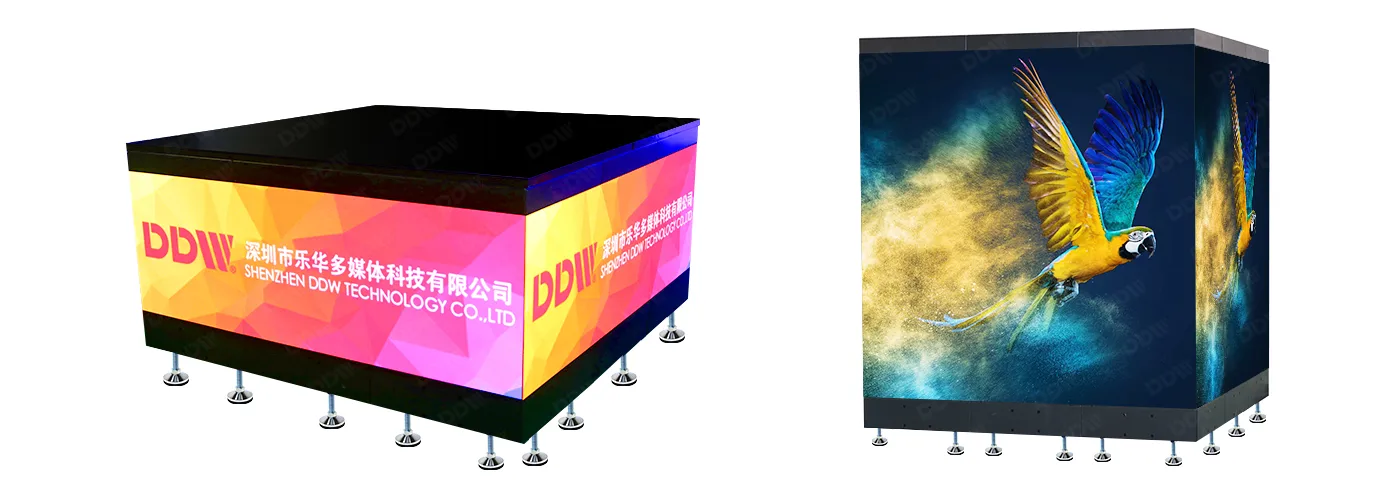

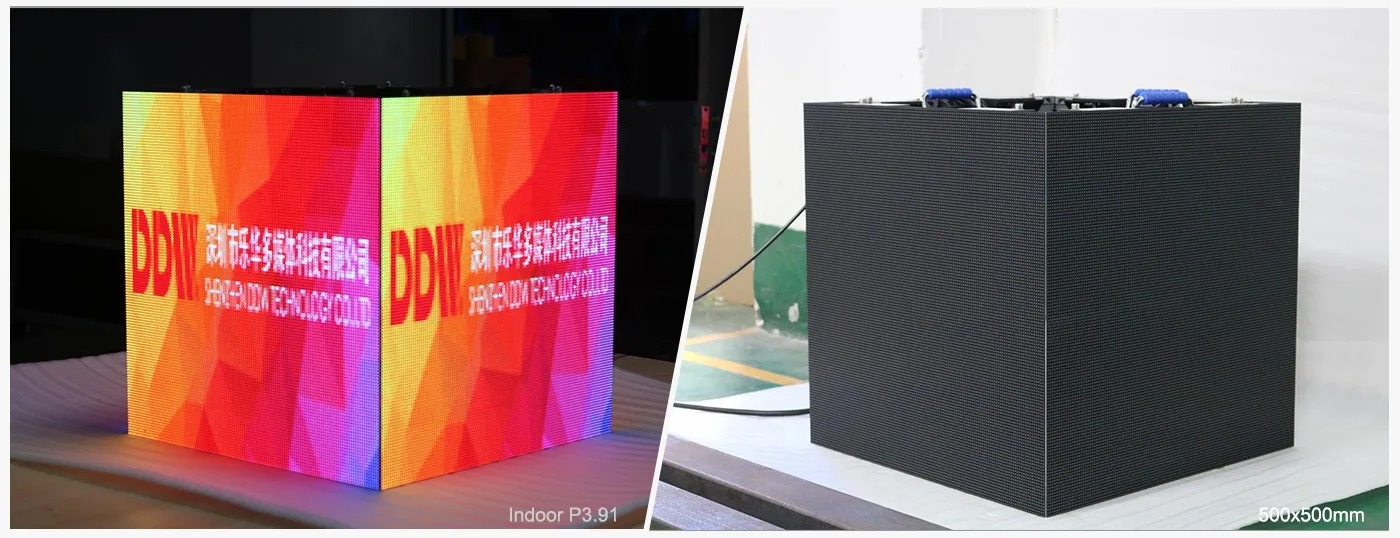

90° Right Angle Splicing
Front/Rear Maintenance

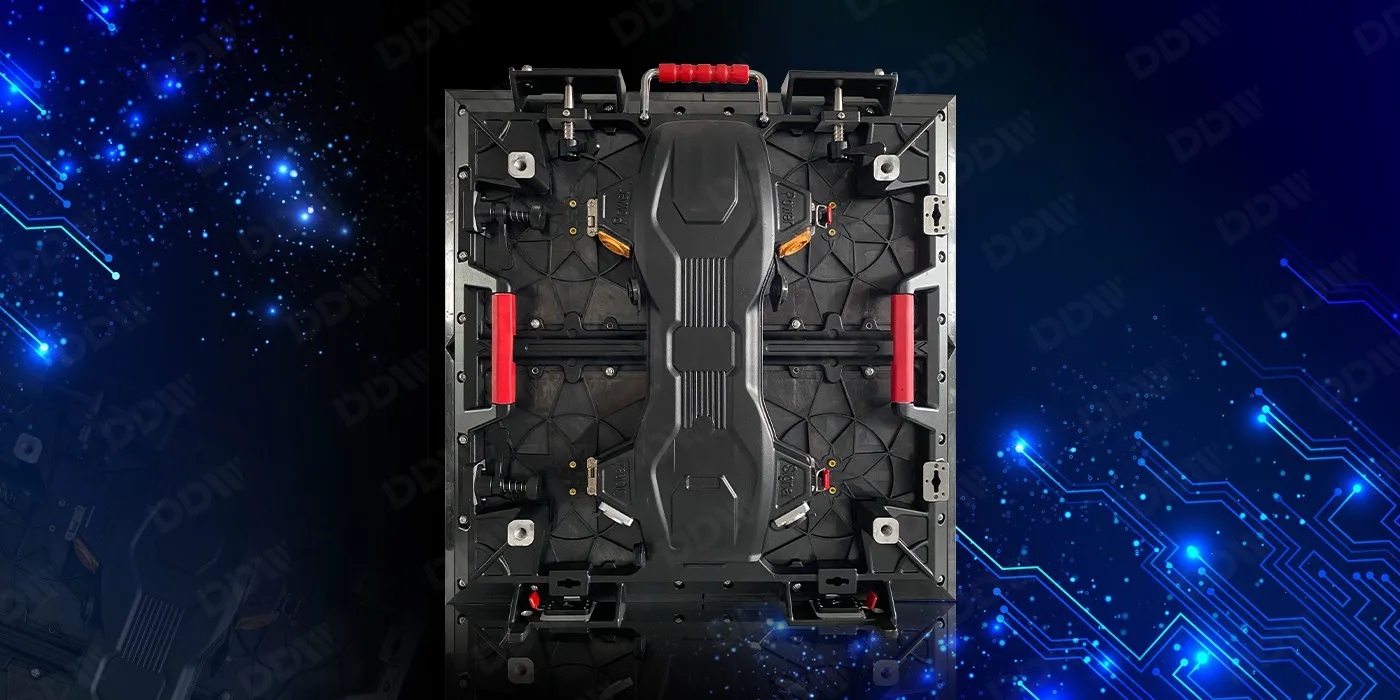

Die Cast Aluminum
6.8kg

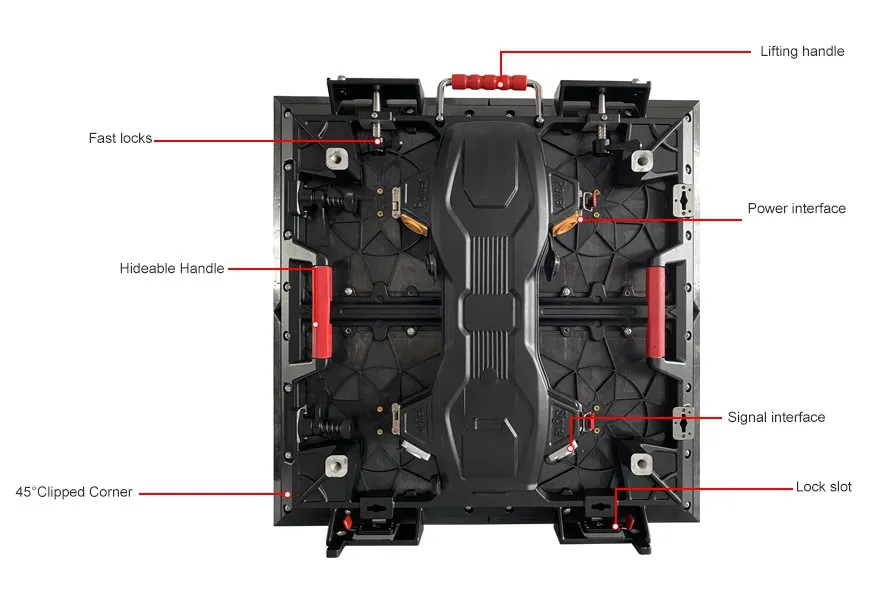

First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier.

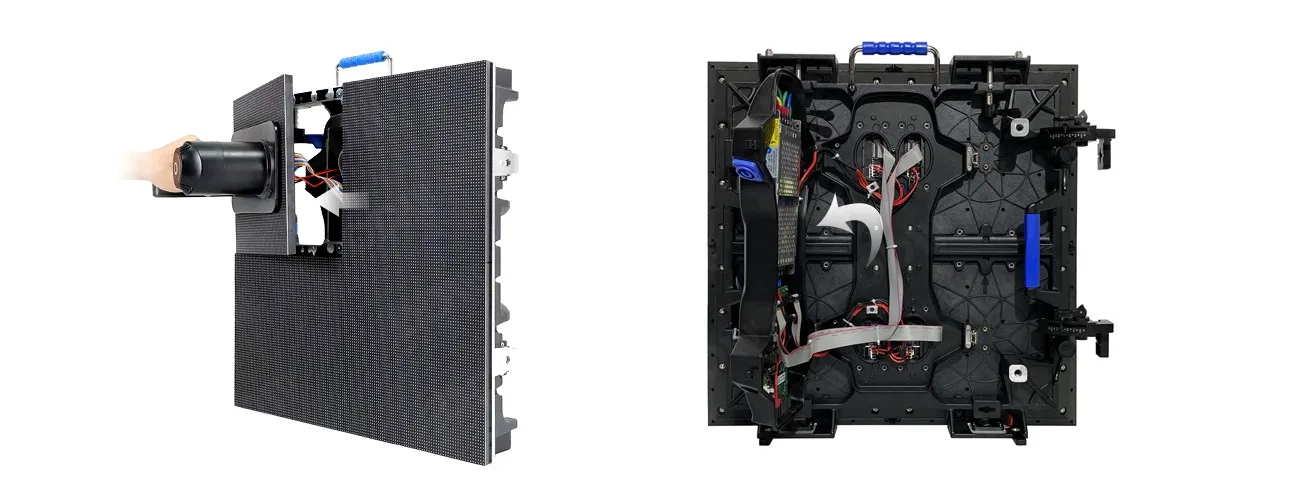

The cabinet based on soft connection, support module front and rear maintenance.

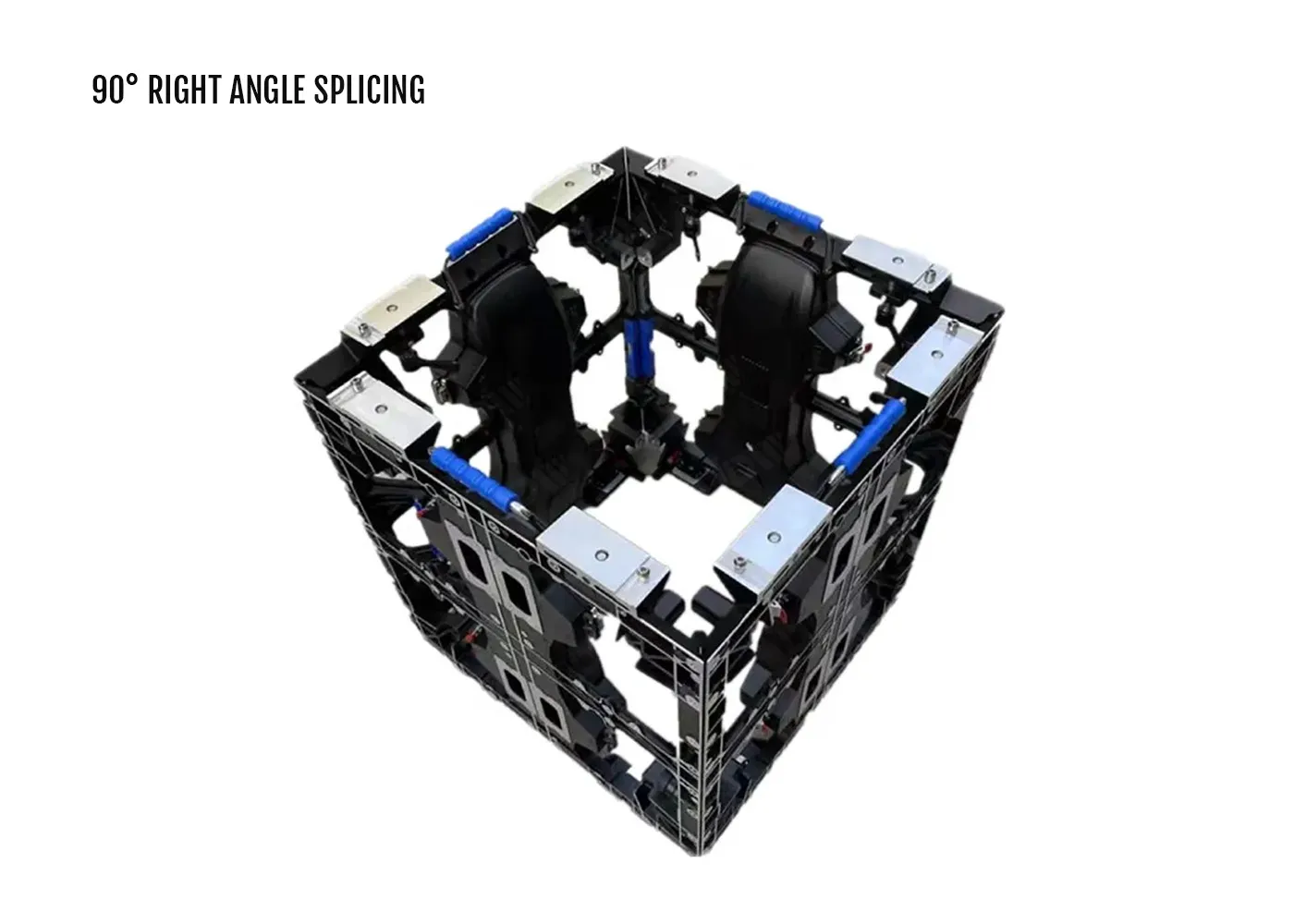

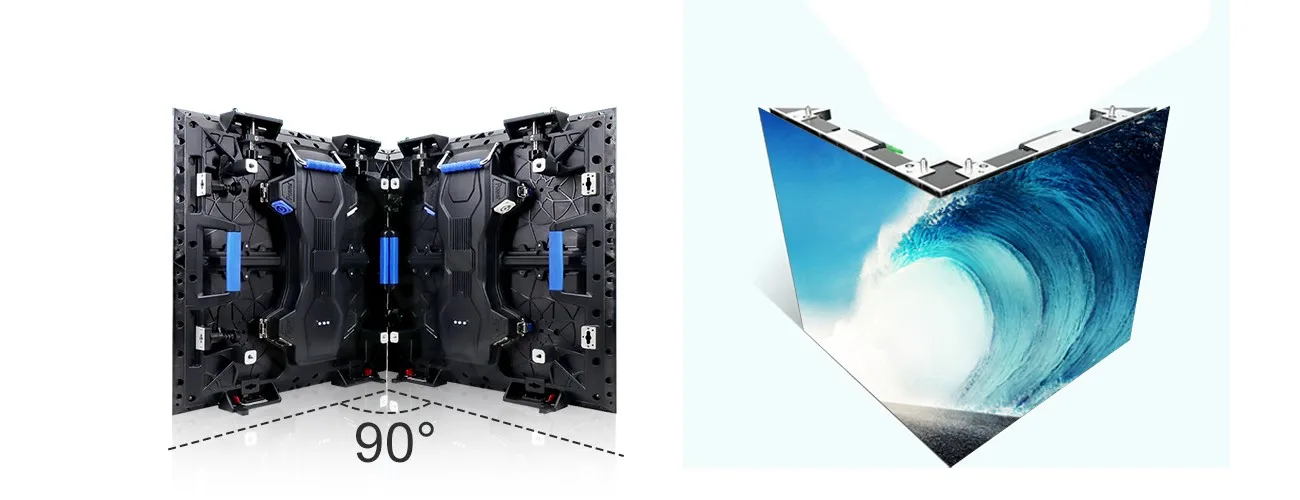

The box adopts a 45 degree bevel design, and multiple boxes are spliced together to easily form a 90 degree right angle
| Pixel Pitch | P1.95 | P2.6 | P2.97 | P3.91 | P4.81 |
| Pixel Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2020/1921 | SMD1921 |
| Density (Pixels/ni) | 262,144 | 147,928 | 112,896 | 65,536 | 43,264 |
| Module Resolution | 128x128 | 96x96 | 84x84 | 64x64 | 52x52 |
| Module Size | 250x250mm | ||||
| Driving Mode | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |

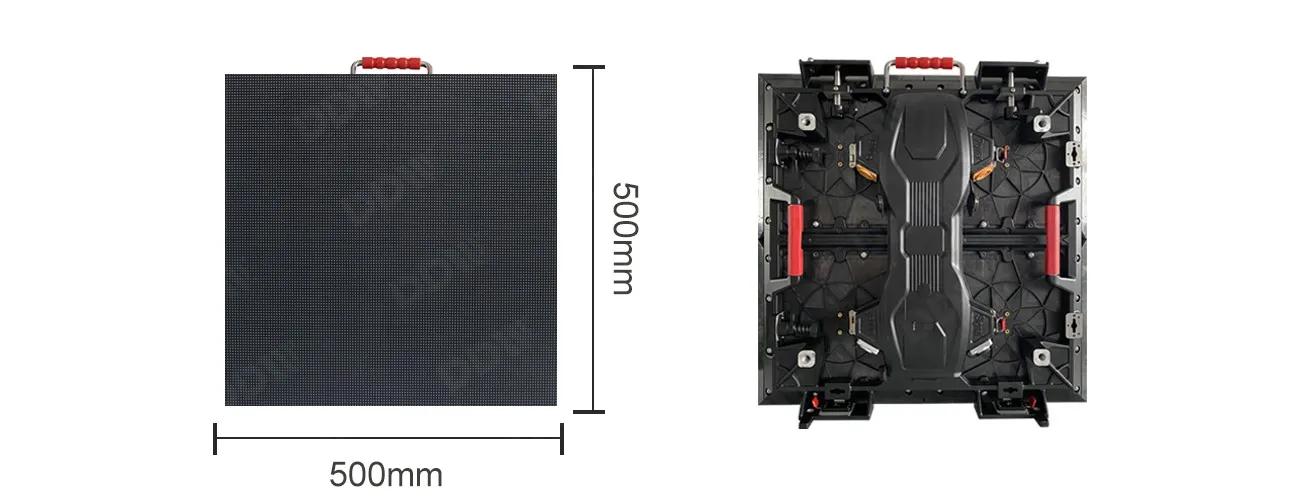

| Cabinet Size | 500x500mm | ||||
| Cabinet Weight | 6.8kg | 6.8kg | 6.8kg | 6.8/7kg | 7kg |
| Brightness | ≥1000cd/m² | ≥1200cd/m² | ≥1,000cd/m² | 6000≥1,200cd/m² | ≥6000cd/m² |
| viewing Angle | 140° | ||||
| Gray Grade | 14Bits | ||||
| Operation Power | AC100-240V 50-60Hz | ||||
| Max. Power Consumption | 480w | 480w | 480w | 576/720w | 560w |
| Avg. Power Consumption | 160w | 160w | 160w | 192/240w | 190w |
| Frame Frequency | ≥60Hz | ||||
| Refresh Frequency | ≥3,840Hz | ||||
| Working Temperature | -20~ +60 | ||||
| Lifetime (Hours) | 100000H | ||||
| Protection Grade | IP31（indoor） | IP31（indoor） | IP31（indoor） | IP31（indoor）/IP65（outdoor） | IP31（indoor）/IP65（outdoor） |
This is a rental screen with excellent details. Optional cabinet size: 500mm*500mm and 500mm*1000mm. The main feature is to support the front maintenance of the module, as well as the design of the pluggable hub board and the processing of various details. It supports flexible construction methods such as arc and right-angle installation, making construction and maintenance more convenient. It is suitable for rental activities that have high requirements for installation timeliness and maintenance convenience, such as virtual video capture (XR), high-end stage construction, and LED screen construction for indoor and outdoor activities, etc. Up to 7680Hz refresh rate and gray scale bring the best visual performance to your application. A flexible locking system and lightweight cabinet ensure quick assembly and disassembly with only one technician.
