HS series Ultra fine HD LED screen

The HS series is a hub board designed cabinet with size 480*480, which supports front maintenance, key features support power backup, system backup, flash storage and EMC. About the installation, it supports front maintenance, fixed installation and ceiling installation and also right corner combination. About the compatibility, it is compatible with P1.57 1.87 P2.5 pixel pitch.

Features

3840 Hz

Wide Viewing Angles

Common Cathode Design

Curved Design

Front Magnet Maintenance

3D XR Performance

Die Cast Aluminum

Right Angle Splicing

Advantages

HS series Ultra fine HD LED screen
Feature Description
  • - Low brightness and high gray technology, 5000:1, low power consumption
  • - 3840Hz refresh rate, high dynamic picture display is real and natural, no smear
  • - Wide color gamut, uniform color, no rainbow effect, delicate and soft picture
  • - Metal heat dissipation, ultra-quiet fan less design
  • - Full front maintenance. High precision adjustment
  • - Optional power supply and signal dual backup function
  • - Cabinet size 16:9 golden section, easy splicing of 2K, 4K, 8K large screens, point-to-point true color restoration

Video

HS series Ultra fine HD LED screen

Parameters

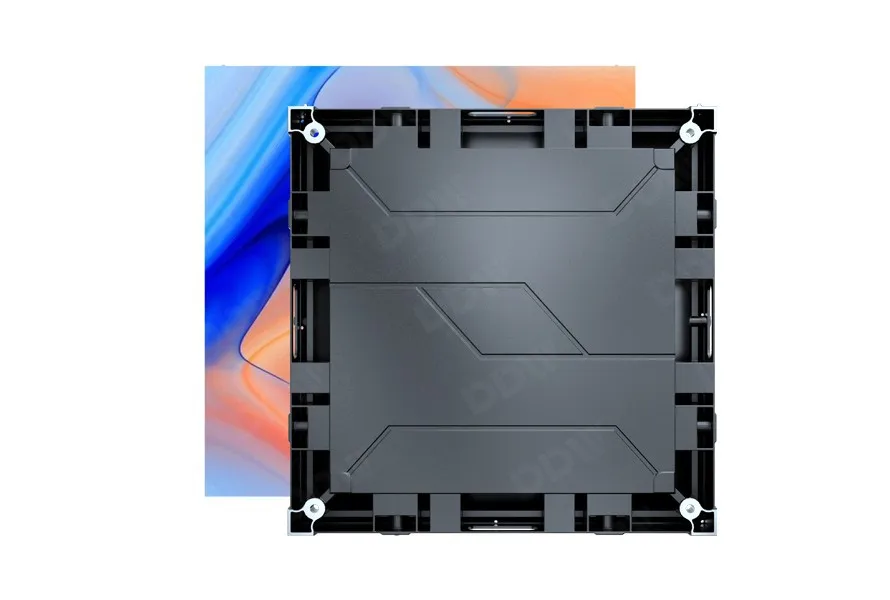

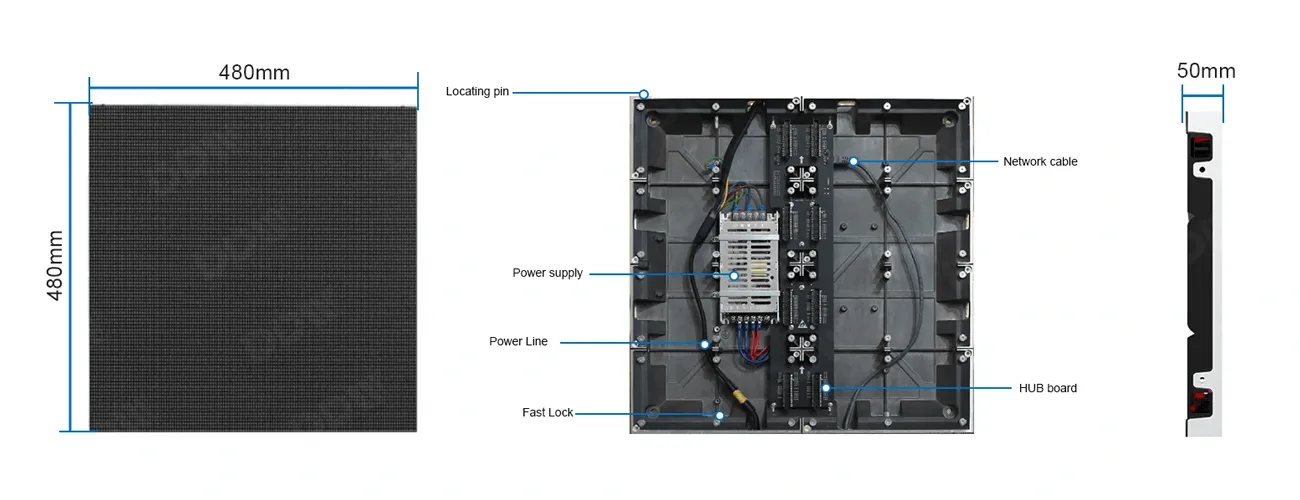

Cabinet Specs

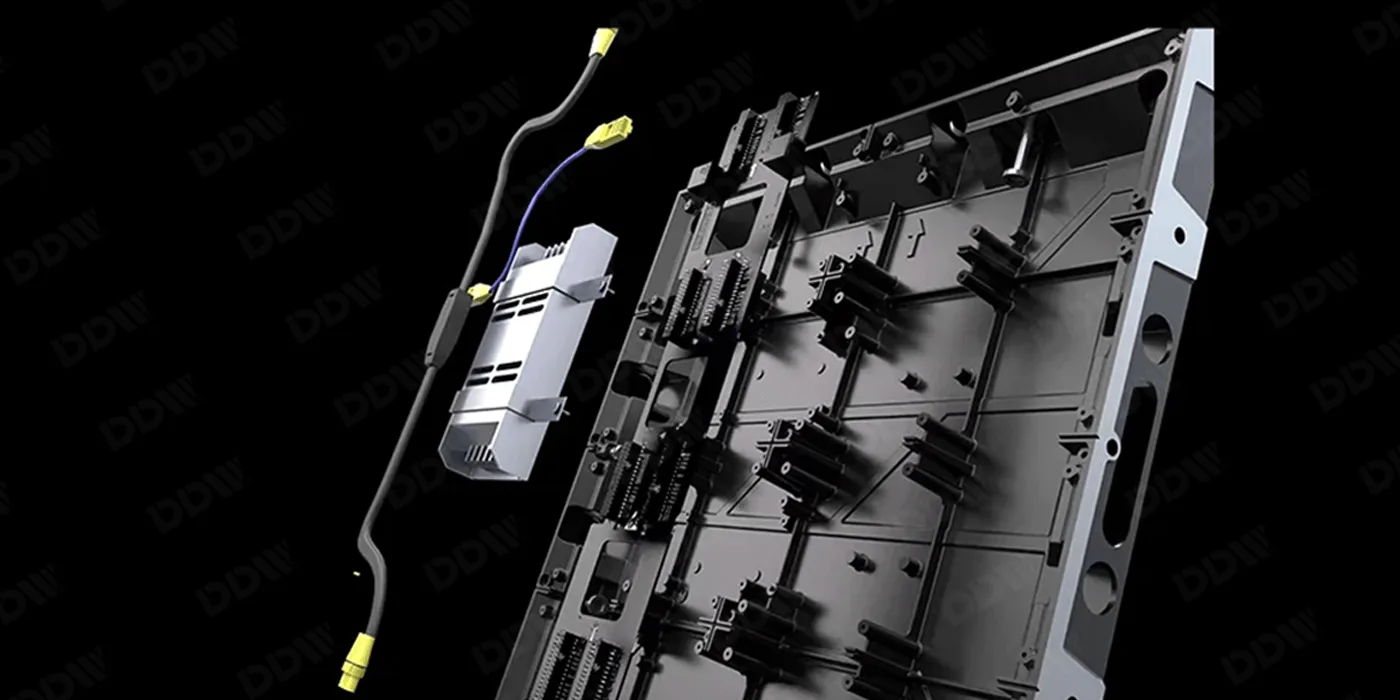

First class design for die casting cabinet frame, each cabinet (include all components) is only 6.5 kg , four sets strong fast lock to make assembling to be easier.

HS series Ultra fine HD LED screen

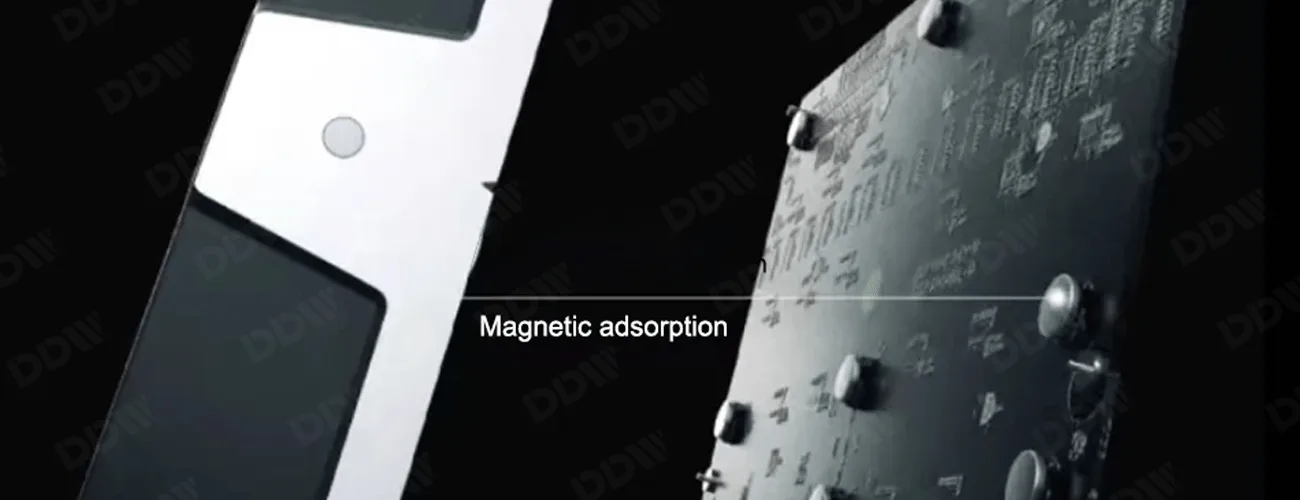

Magnetic adsorption

Front maintenance design of magnetic suspension adsorption module

HS series Ultra fine HD LED screen

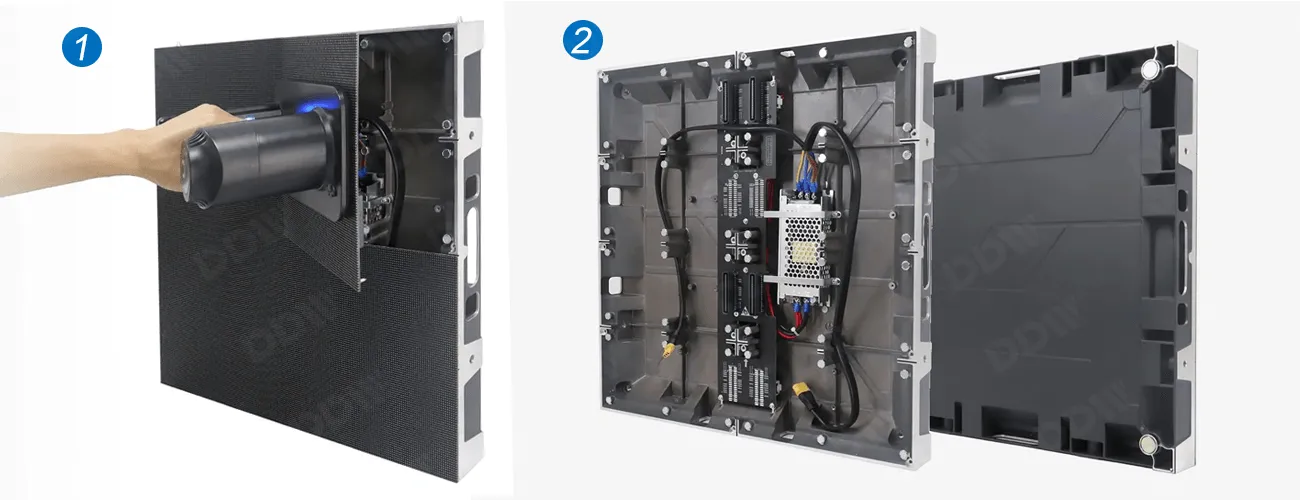

Front maintenance

Support both front installation while fully front-accessible serviceability makes more friendly maintenance and saves your space.

HS series Ultra fine HD LED screen

Installation

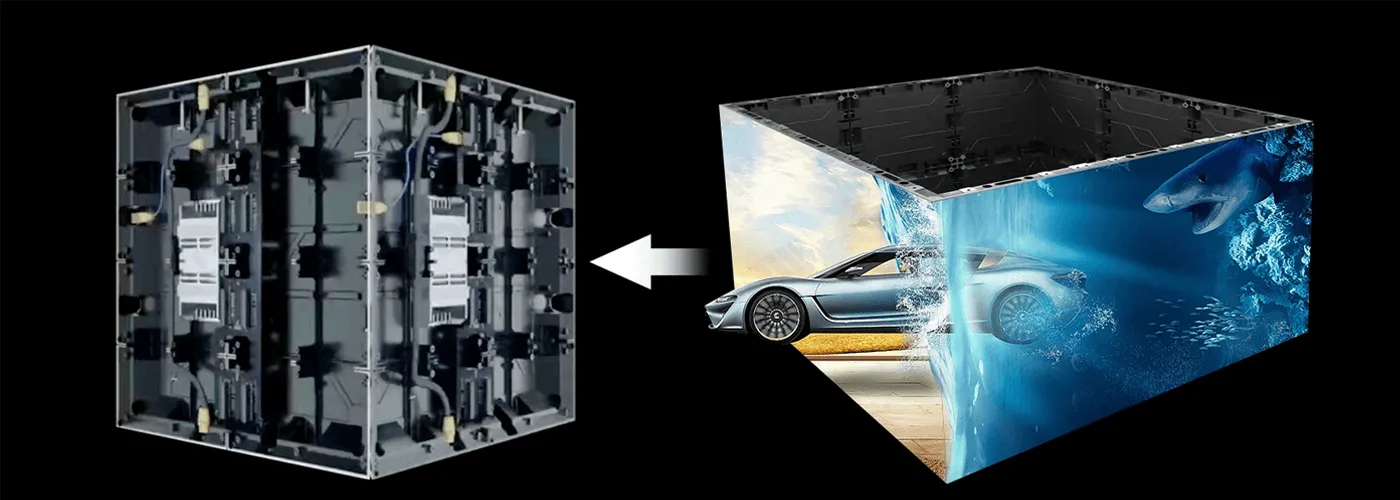

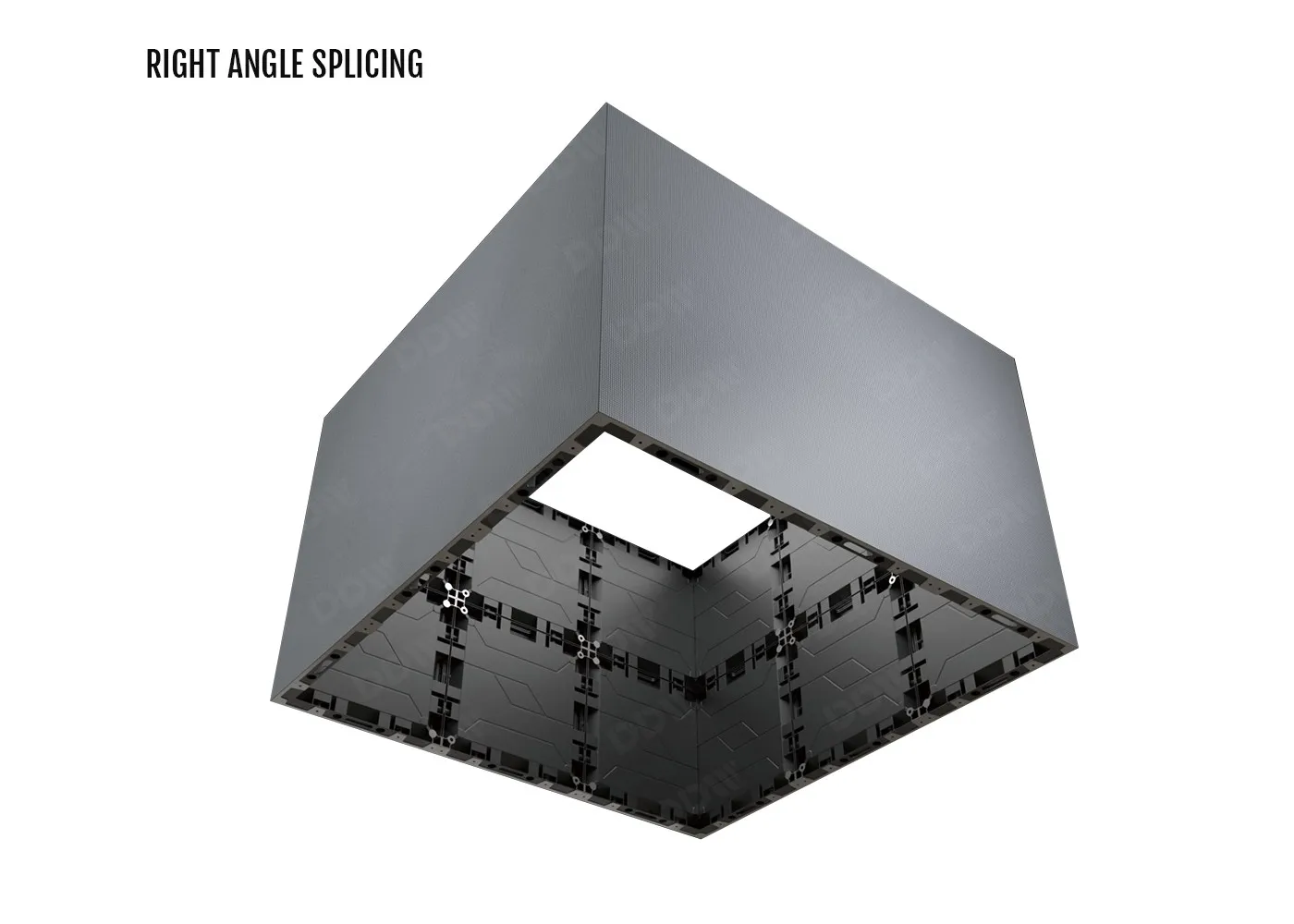

Right-angle installation
HS series Ultra fine HD LED screen

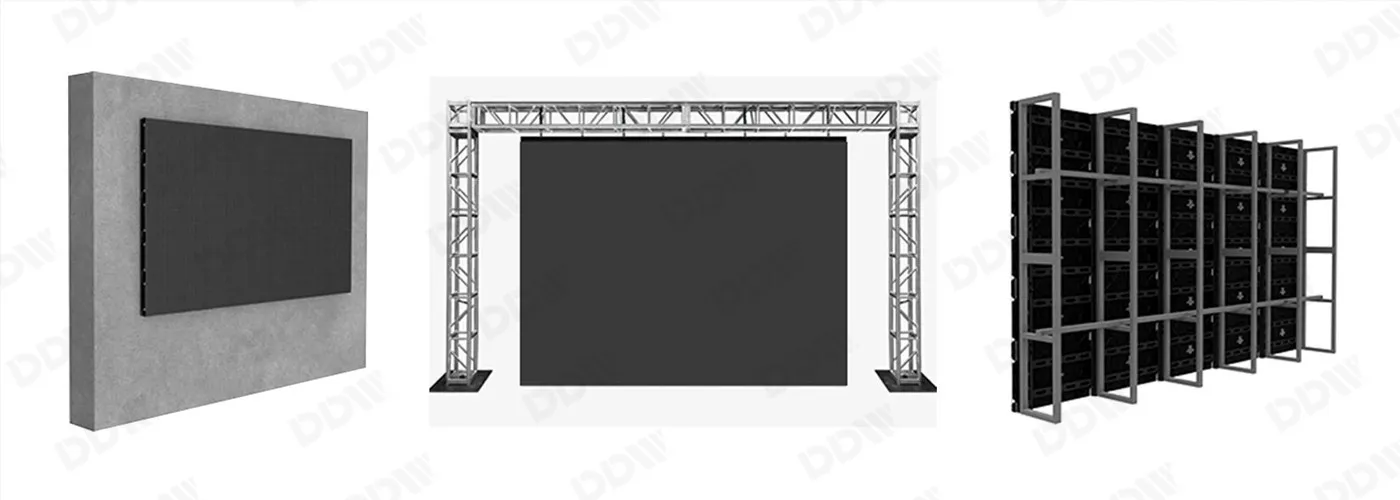

Various installation mode
HS series Ultra fine HD LED screen

Specifications

Pixel Pitch P1.57 P1.87 P2.5
Pixel Density 401120 284444 160000
LED Type SMD1212 SMD1515 SMD2121
Refresh Rate(Hz) 3840
Cabinet Size(mm) 480*480
Module Size(mm) 240*120 240*240 240*240
Module Resolution 152*76 128*128 96*96
Brightness(nits) 500~800
Max Consumption(W/M) 650
Ave Consumption(W/M) 195~300
View Angle/Horizontal 140
View Angle/Vertical 90
Grey Scale(Bit) ≥14
Certificate EMC,CE,ETL,FCC, CB

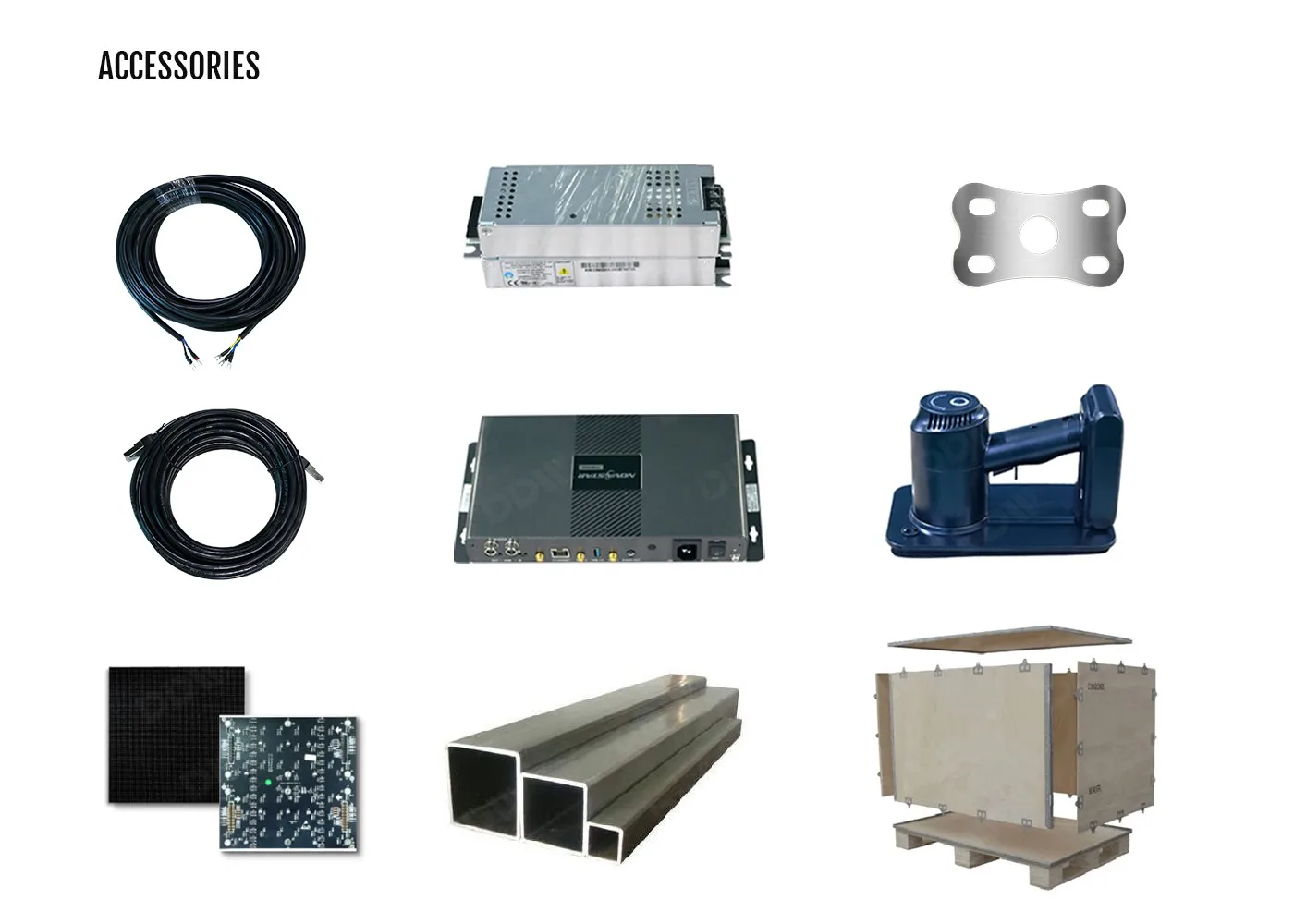

Accessories

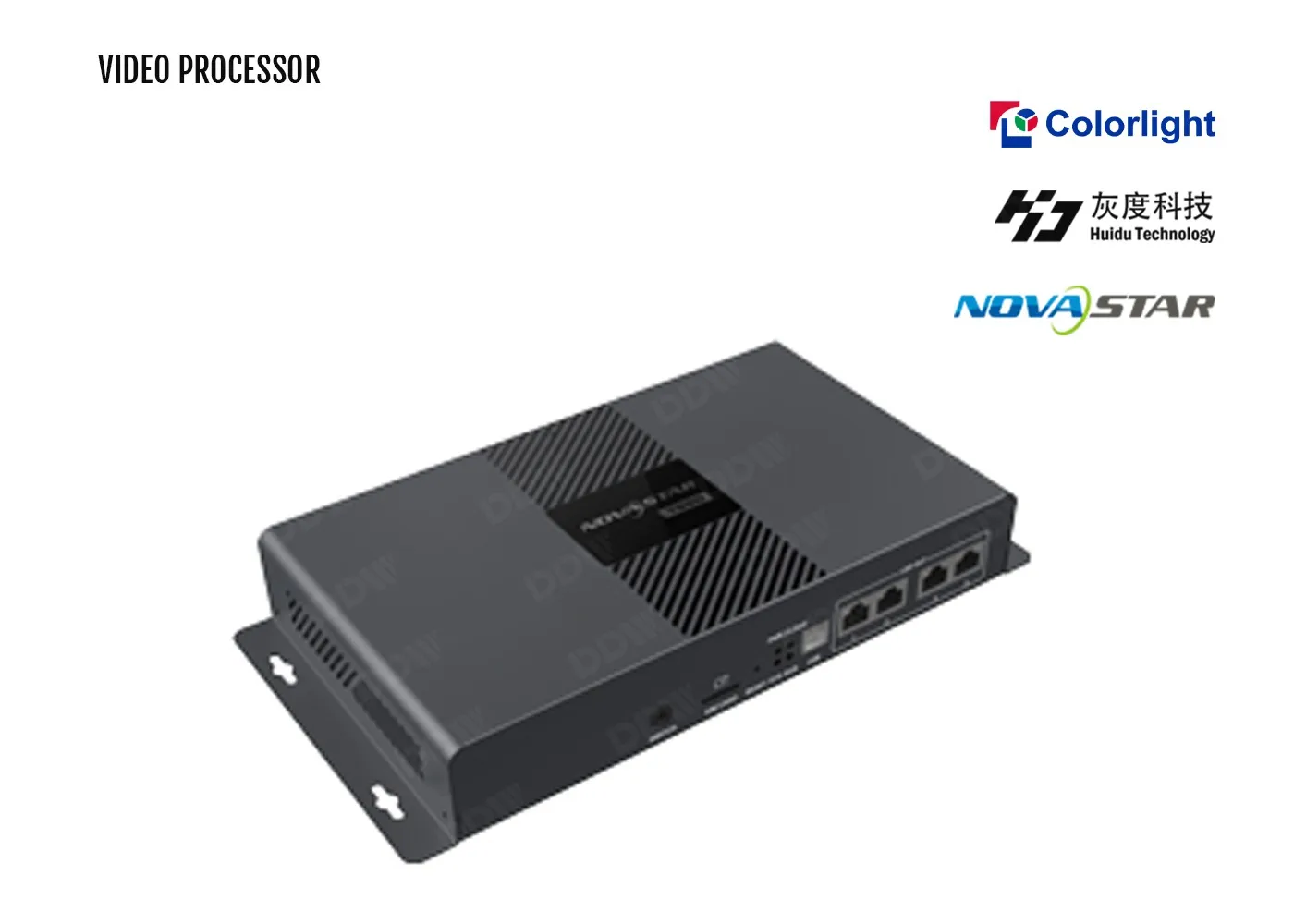

Sending box
Sending box
Power Supply
Power Supply
LED suction cup
LED suction cup
Mounting accessories
Mounting accessories
Signal cable
Signal cable
Power cable
Power cable
Movable power cabinet
Movable power cabinet
Flight case
Flight case
