Four Common Installation Methods for Transparent LED Screens

Reading volume: 1067

Release time :2023-05-26

Estimated reading time: 1 minute



In this article, we will discuss the four common installation methods for Transparent LED Screens.

Transparent LED Screens have become increasingly popular in recent years due to their lightweight and thin structure. The quality of the screen is directly related to the quality of the light bar used, so installation plays a crucial role in ensuring the screen's performance. In this article, we will discuss the four common installation methods for Transparent LED Screens.

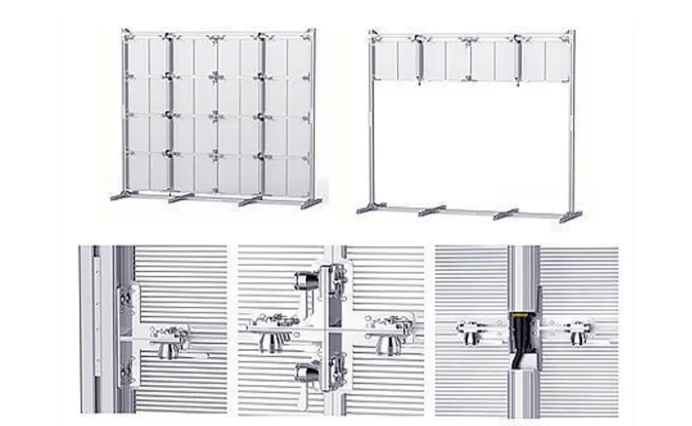

Section 1: Floor Installation

Floor installation is one of the simplest and most common methods used for Transparent LED Screens. This method is ideal for installations where the height of the screen is not too high, such as in glass showcases and exhibition halls. The screen is fixed at the bottom, or up and down behind the screen if the height is greater. One of the advantages of this method is that it provides excellent stability to the screen, making it less prone to accidental damage or movement. Additionally, floor mounting is easy to implement and requires minimal modifications to the existing infrastructure.

Transparent LED Screens

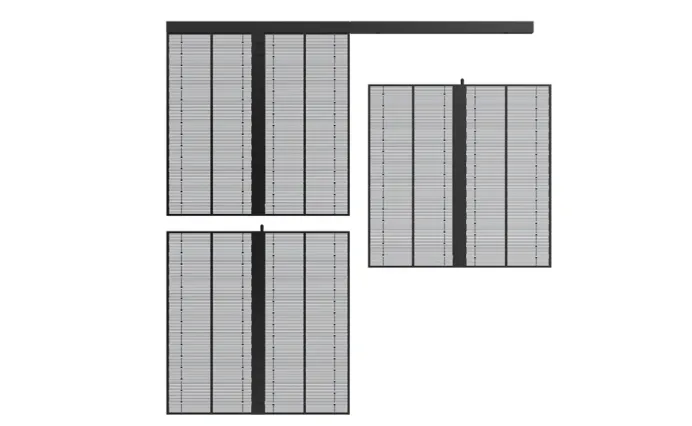

Section 2: Frame Installation

Frame installation is another popular method used for LED see-through displays. It involves using composite bolts to fix the frame of the box on the keel of the glass curtain wall. This method does not require any steel structure and is particularly useful in architectural glass curtain walls. Frame installation is well-suited for large-scale displays, and the frame can be easily customized to fit specific design requirements. With this method, the display screen is mounted within the framework, which provides added protection from impacts and other external factors.

Transparent LED Screens

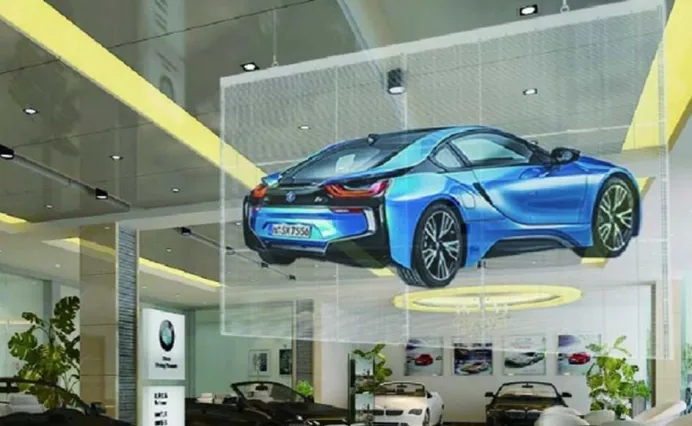

Section 3: Ceiling Installation

Ceiling installation is best suited for long strip screens and frame structure screens. It is commonly used for indoor hoisting and requires a suitable location for installation, such as the place where there is a beam above the lintel. Depending on site conditions, standard hanging parts or steel wire ropes are used for indoor beams and outdoor steel pipes of the same color as the screen body. One of the benefits of this method is that it maximizes the use of available space while providing an unobtrusive view of the screen itself. Additionally, ceiling-mounted screens can be easily adjusted to suit various viewing angles and heights.

Transparent LED Screens

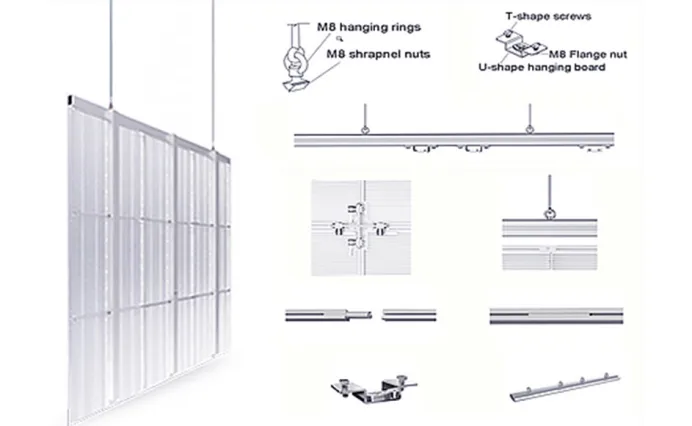

Section 4: Hanging Installation

Hanging installation is a versatile method that can be used for both indoor and outdoor displays. It involves wall-mounting the display indoors or suspending it from a steel structure outdoors. For indoor installations, concrete beams on the wall entity or suspension are required. This installation method is particularly useful for large-scale outdoor displays and provides flexibility in terms of design, area, and weight of the display screen. One of the benefits of this method is that it enables the display to be easily adjusted or relocated as needed.

Transparent LED Screens

About DDW Display

The above four methods are the most common installation methods for Transparent LED Screens, and the choice of installation method will depend on the application scenario. Regardless of the method chosen, Transparent LED Screens require minimal steel structure, making them easy to install, cost-effective, and ideal for various types of displays.

Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012.  If you're considering installing a transparent LED screen,  let us help you create a stunning LED display solution!
